This is an MSA compliant 200GBase-CU QSFP56 to QSFP56 direct attach extension cable that operates over passive copper with a maximum reach of 22cm (0.6ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- Low EMI radiation
- Insertion Loss < 7.5dB@13.28GHZ/channel within 50cm
- Oil resistance, dust-proof and anti-corrosion
- 100 ohm differential impedance system
- Low Near-End Crosstalk (NEXT)
- Compliant with QSFP-MSA
- Compliant with SFF-8436 and SFF-8665
- IEEE 802.3cd Compliant
- Compliant with Infiniband HDR
- Operating Temperature: 0°C to 70°C
| Brand | |
|---|---|
| Brand | AddOn |
| General Features | |
|---|---|
| Data Transfer Rate | 200 Gbit/s |
| Manufacturer | AddOn |
| Cables | |
|---|---|
| Cable Length | 8.66" |
| Cable Type | Twinaxial |
| Cable Characteristic | Extension Cable |
| Connector Type on First End | QSFP56 Network - Male |
| Connector on First End Details | 1 x QSFP56 Network - Male |
| Connector Gender on First End | Male |
| Connector Type on Second End | QSFP56 Network - Female |
| Connector on Second End Details | 1 x QSFP56 Network - Female |
| Connector Gender on Second End | Female |
| American Wire Gauge | 30 AWG |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Brand | AddOn |
| UPC/GTIN | 195285221797 |
| MPN | QSFP56-200G-EXT22CM-AO |
| Unit Count | 1 Units |
| Warranty | Lifetime |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |

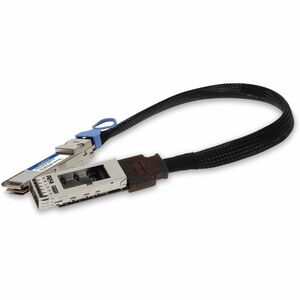

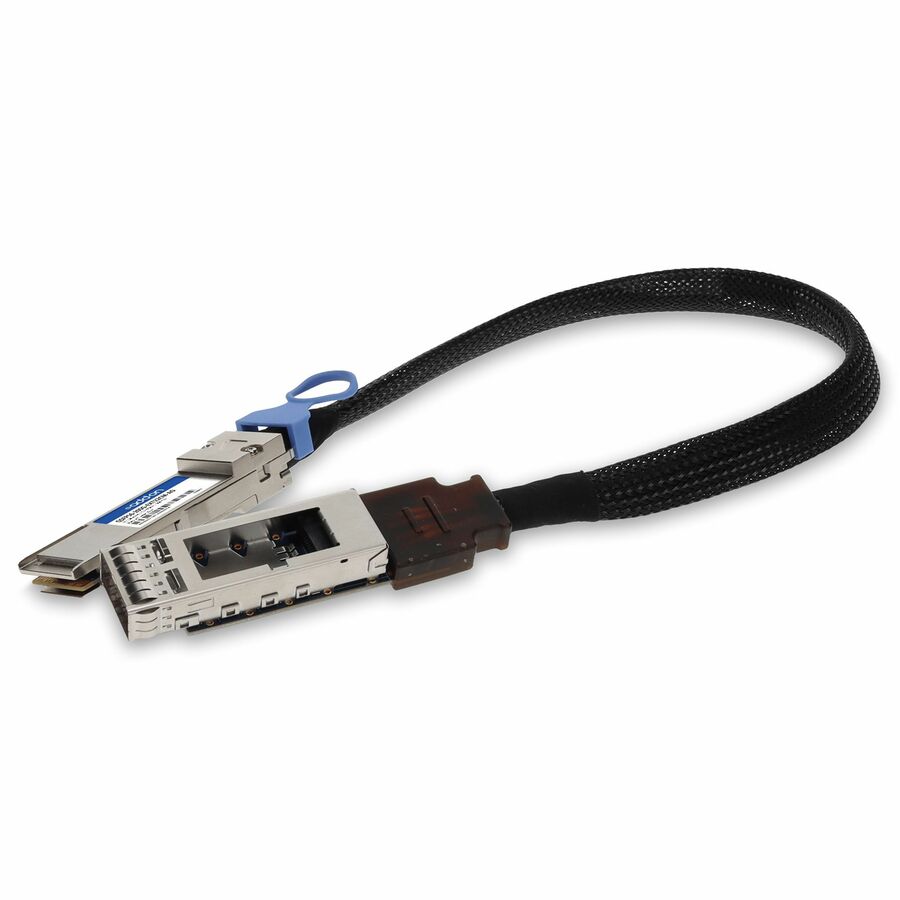

AddOn 200GBase-CU QSFP56 to QSFP56 Male to Female Direct Attach Extension Cable (Passive Twinax, 22cm, 30AWG) - 8.66" Twinaxial Network Cable for Network Device - First End: 1 x QSFP56 Network - Male - Second End: 1 x QSFP56 Network - Female - 200 Gbit/s - Extension Cable - 30 AWG - 1.0 - TAA Compliant
