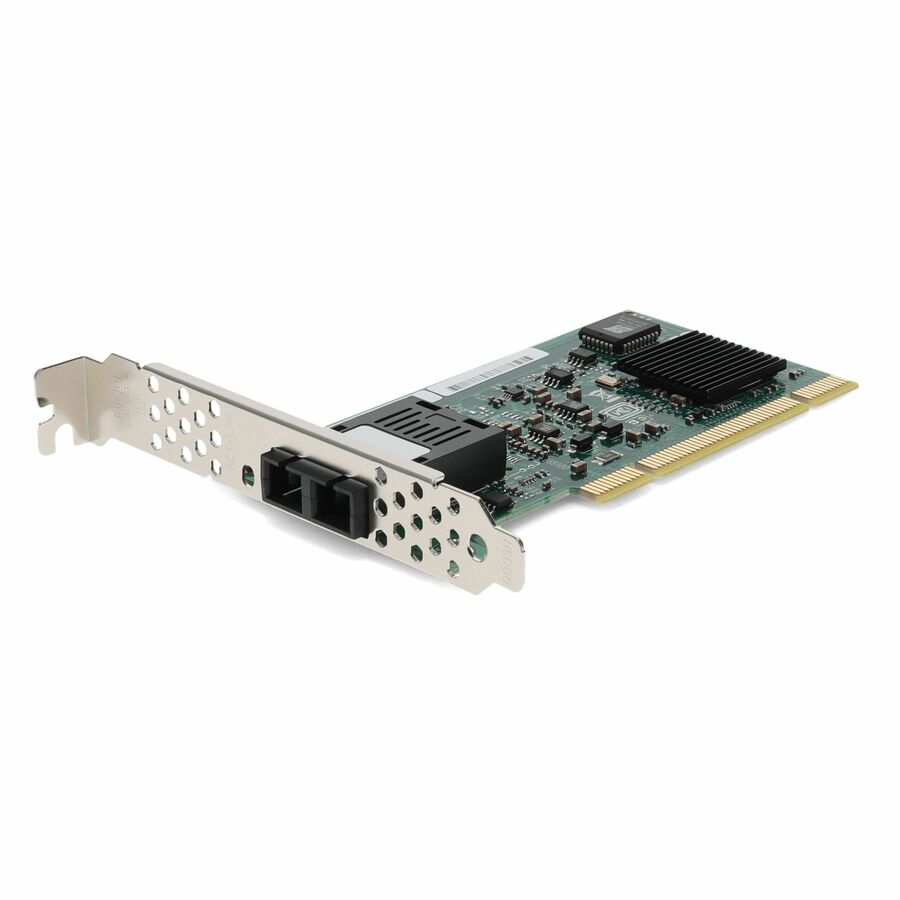

This is a Gigabit Ethernet PCI network interface card with a single SC port that complies with IEEE 802.3 standards. It is based on an Intel 82544 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 1Gbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering. The single SC port accommodates multi-mode, providing a reach up to 550m. This product includes both half-height and full-height brackets. Our network interface cards are 100% compliant, and offer a cost effective solution for all of your network upgrade needs. With our certification test program, we guarantee your product will work right the first time.
- This Gigabit Ethernet card guarantees a replacement networking interface to client, server or workstation
- Connect your desktop computer to a high-speed wired network with this PCI network adapter
- Connect to a wired network with this single port network adapter for a hassle-free and quick response
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
- With the 1000Base-SX technology get up to 1000Mbps data transfer rate over the optical fiber cable
| Brand | |
|---|---|
| Brand | AddOn |
| Networking & Connectivity | |
|---|---|
| XJACK | No |
| Network Technology | 1000Base-SX |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Ethernet AUI | No |
| Network (RJ-45) | No |
| PoE (RJ-45) Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | 82544 |
| Manufacturer | AddOn |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Host Interface | PCI |
| Serial Port | No |
| Number of SC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Multi-mode |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
