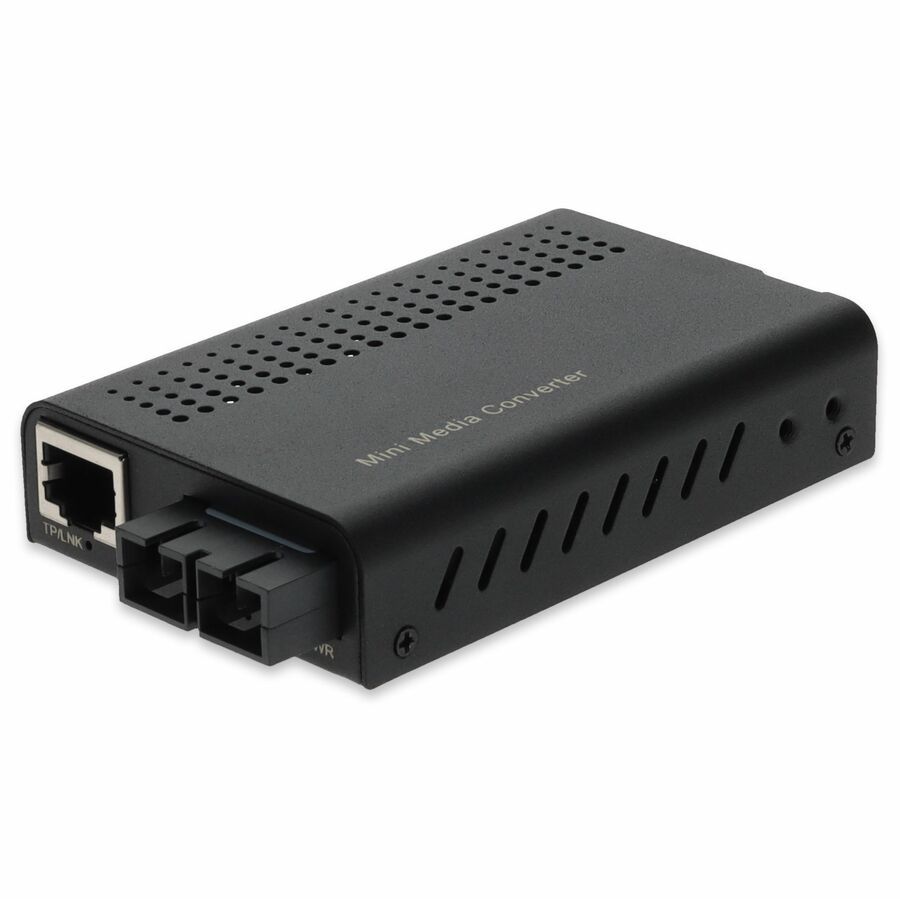

This is a mini media converter that converts a 10/100Base-TX(RJ-45) to 100Base-SX(SC) via a 850nm multi-mode fiber (MMF) SC connector, which allows distance reach up to 550m. This provides a cost effective conversion from 10/100Base-TX(RJ-45) to 100Base-SX fiber, while extending the network reach beyond the 100m reach limitation of copper and saving space (3.75" x 2.25" x 1"). Our media converters are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- Expand your network capabilities with this 2 transceiver/media converter
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
| Brand | |
|---|---|
| Brand | AddOn |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V DC |
| Power Source | AC/DC |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100Base-SX |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 100 Mbit/s |
| Maximum Distance Supported | 0.55 km |
| Manufacturer | AddOn |
| Video Ports | |
|---|---|
| DVI | No |
| Misc Ports | |
|---|---|
| Management Port | No |
| Total Number of Ports | 2 |
| Number of SC Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Compliance & Certification | |
|---|---|
| TAA Compliant | No |
