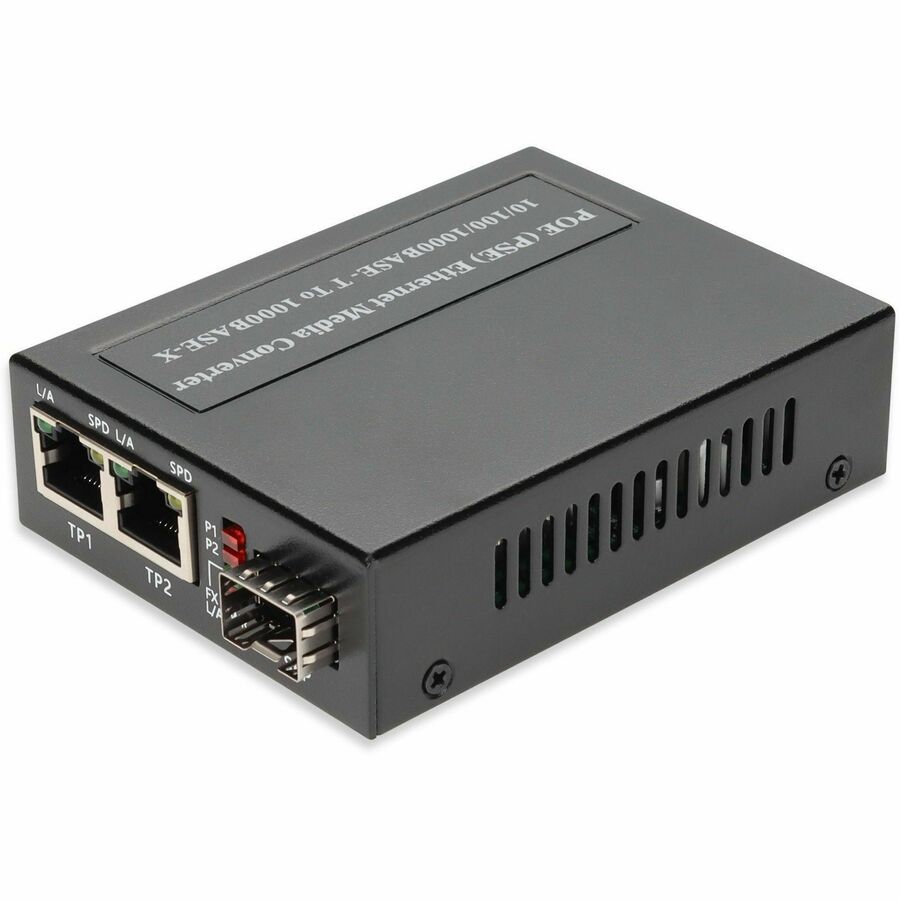

This is a three port media converter that converts and supports two 10/100/1000Base-TX(RJ-45) to one 1000Base-X via an open SFP port connector. The open SFP port allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from two 10/100/1000Base-TX(RJ-45) to one 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. The two 10/100/1000Mbps UTP RJ-45 ports support full duplex 10/100/1000Mbps connectivity (half duplex only supported in 10/100Mbps mode). The PoE(PSE) ethernet switch is a Power Sourcing Equipment (PSE) which combines data transfered over cable with 48V(typical) power supply, providing power to IEEE802.3af powered device (PD) over CAT5e UTP cable (cable length up to 100 meters/330 feet). The two UTP RJ-45 ports are organized to be PoE output port, and each PoE port can output up to 15.4 watts (DC 48V/.35A) power into CAT5e twisted-pair cable. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our certification test program, we can guarantee your product will work right the first time.
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- With 10/100/1000Base-TX technology get up to 1000Mbps data transfer rate over twisted pair cable
- The unit is standalone and you can place it anywhere on a flat surface
| Brand | |
|---|---|
| Brand | AddOn |
| Power & Battery | |
|---|---|
| Input Voltage | 56 V DC |
| Power Source | AC/DC |
| Power Consumption | 15 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-TX |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| PoE Port Type | PSE |
| Size / Dimensions | |
|---|---|
| Form Factor | Standalone |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 1 Gbit/s |
| Maximum Distance Supported | 0.10 km |
| Manufacturer | AddOn |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slo | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Cables | |
|---|---|
| Fiber Mode Supported | Single-mode |
| Compliance & Certification | |
|---|---|
| TAA Compliant | No |
| Miscellaneous | |
|---|---|
| Product Name | 10/100/1000Base-TX(RJ-45) x2 to 1 Open SFP Port POE (15W) Media Converter |
