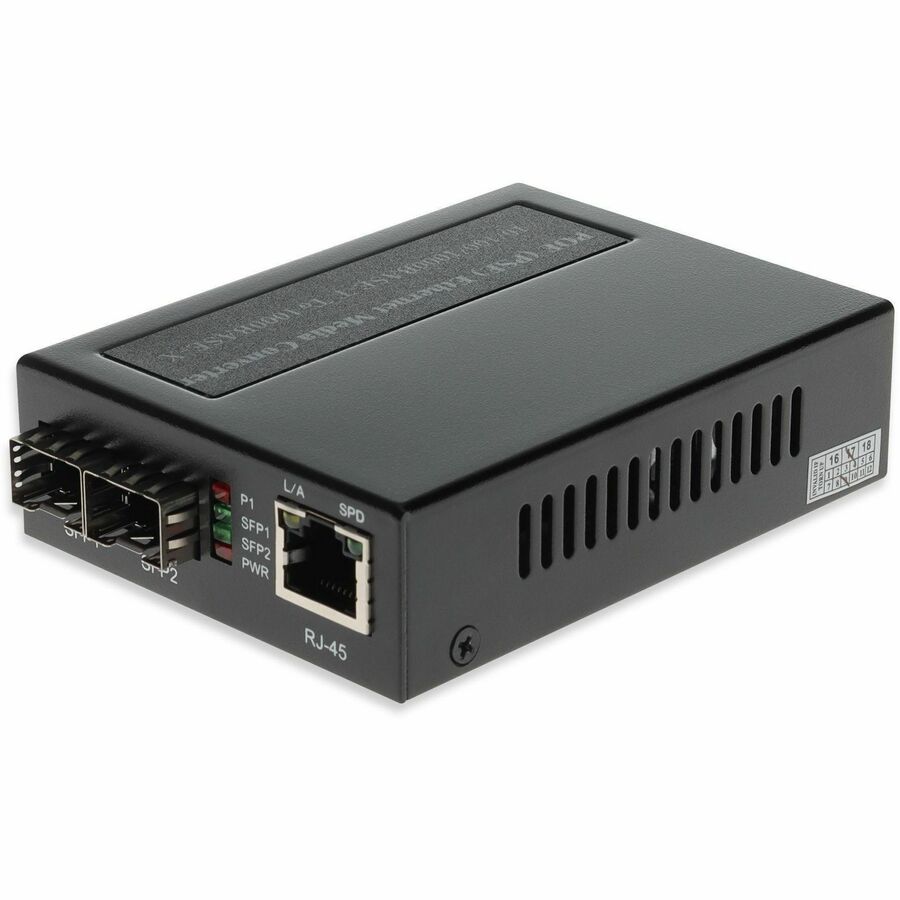

This is a 3 port media converter that converts and supports one 10/100/1000Base-TX(RJ-45) to two 1000Base-X via 2 open SFP port connectors. The open SFP ports allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from one 10/100/1000Base-TX(RJ-45) to two 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. The 10/100/1000Mbps UTP RJ-45 port supports full duplex 10/100/1000Mbps connectivity (half duplex only supported in 10/100Mbps mode). The PoE(PSE) ethernet switch is a Power Sourcing Equipment (PSE) which combines data transferred over cable with 52V(typical) power supply, providing power to IEEE802.3at powered device (PD) over CAT5e UTP cable (cable length up to 100 meters/330 feet). All the four UTP RJ-45 ports are organized to be PoE output port, and each PoE port can output up to 30 watts (DC 52V/0.6A) power into CAT5e twisted-pair cable. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our certification test program, we can guarantee your product will work right the first time.
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
- Attach multiple devices together or expand the number of devices connected to your existing network by using 3 transceiver/media converter
- With 1000Base-X technology get up to 1000Mbps data transfer rate over supported network cable
| Brand | |
|---|---|
| Brand | AddOn |
| Power & Battery | |
|---|---|
| Input Voltage | 56 V DC |
| Power Source | AC/DC |
| Power Consumption | 30 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-T |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of PoE+ (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 1 Gbit/s |
| Manufacturer | AddOn |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 3 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Fiber Mode Supported | Single-mode |
| Compliance & Certification | |
|---|---|
| TAA Compliant | No |
