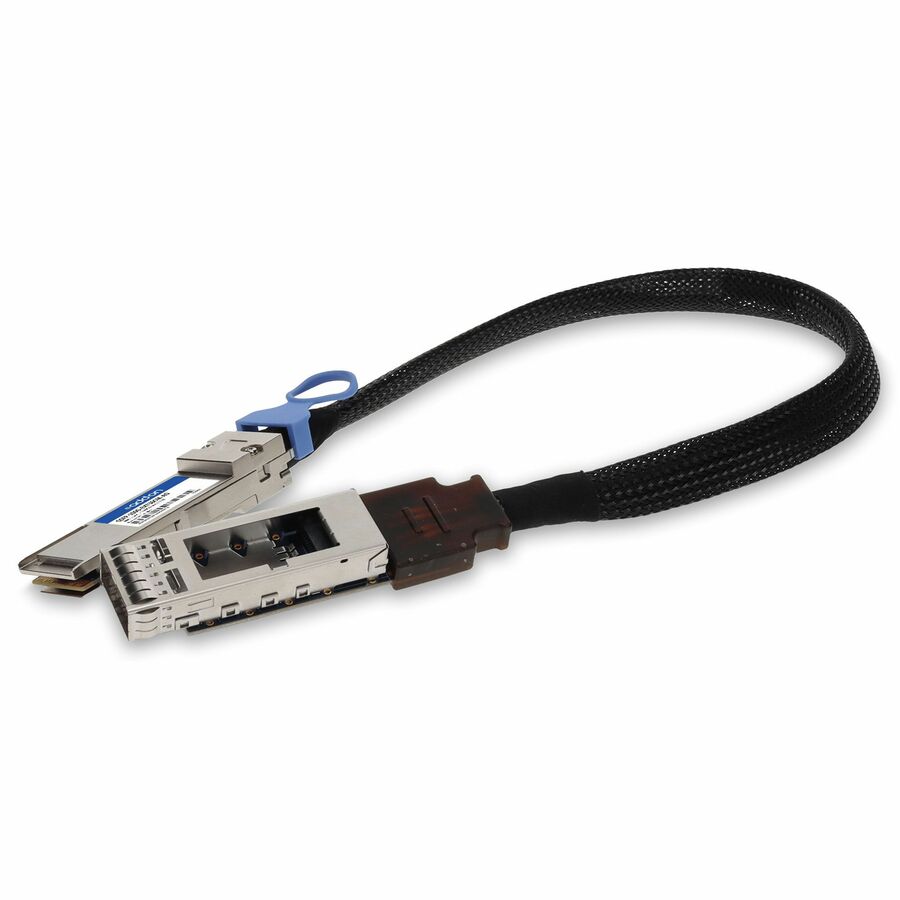

This is an MSA compliant 100GBase-CU QSFP28 to QSFP28 direct attach extension cable that operates over passive copper with a maximum reach of 36cm (1.2ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- Low EMI radiation
- Insertion Loss < 7.0dB @12.89GHZ/channel within 50cm
- Oil resistance, dust-proof and anti-corrosion
- 100 ohm differential impedance system
- Low Near-End Crosstalk (NEXT)
- Compliant with QSFP-MSA
- Compliant with SFF-8436 and SFF-8665
- IEEE 802.3bj Compliant
- Compliant with Infiniband EDR
- Operating Temperature: 0°C to 70°C
| Brand | |
|---|---|
| Brand | AddOn |
| General Features | |
|---|---|
| Data Transfer Rate | 100 Gbit/s |
| Manufacturer | AddOn |
| Cables | |
|---|---|
| Cable Length | 1.18 ft |
| Cable Type | Twinaxial |
| Cable Characteristic | Extension Cable |
| Connector Type on First End | QSFP28 Network - Male |
| Connector on First End Details | 1 x QSFP28 Network - Male |
| Connector Gender on First End | Male |
| Connector Type on Second End | QSFP28 Network - Female |
| Connector Gender on Second End | Female |
| American Wire Gauge | 30 AWG |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
