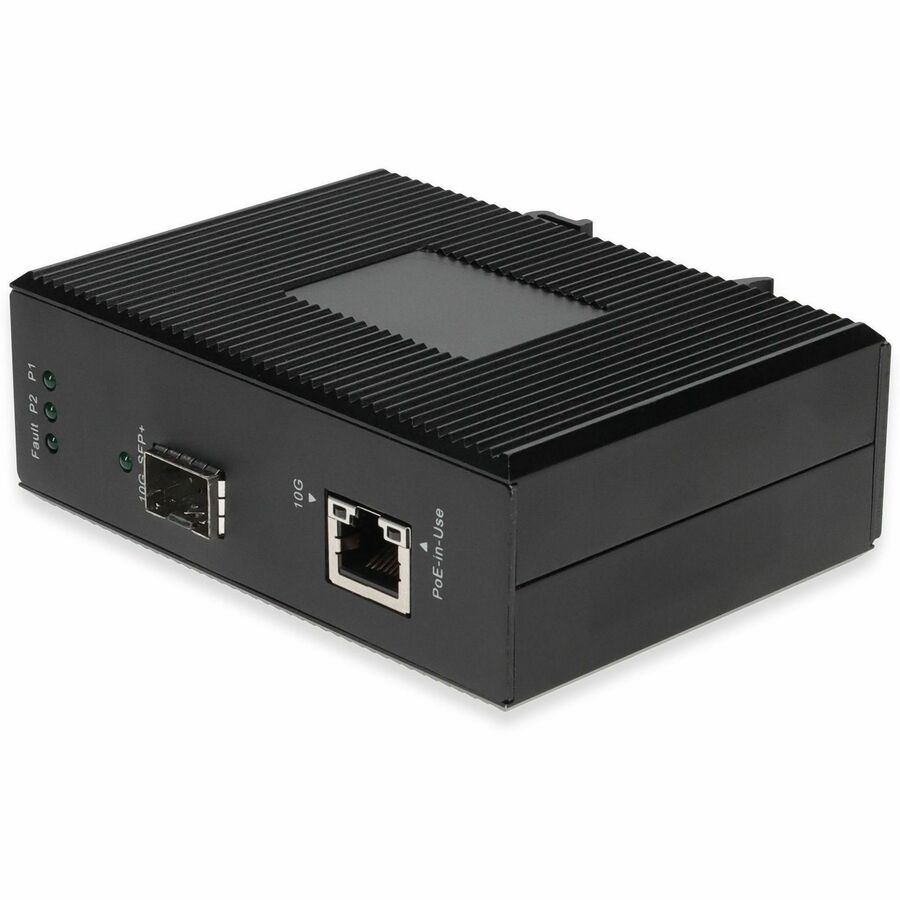

This is a media converter that converts a 100/1000/10000Base-TX(RJ-45) to 10GBase-X via an open SFP+ port connector. The open SFP port allows users to customize between the SR, LR, or BX connections. This media converter provides a cost effective conversion from 100/1000/10000Base-TX(RJ-45) to 10GBase-X, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE+ media converter is a Power Sourcing Equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, 90 watts max, providing power to IEEE802.3bt powered device (PD) over CAT6 and up UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3btt standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
