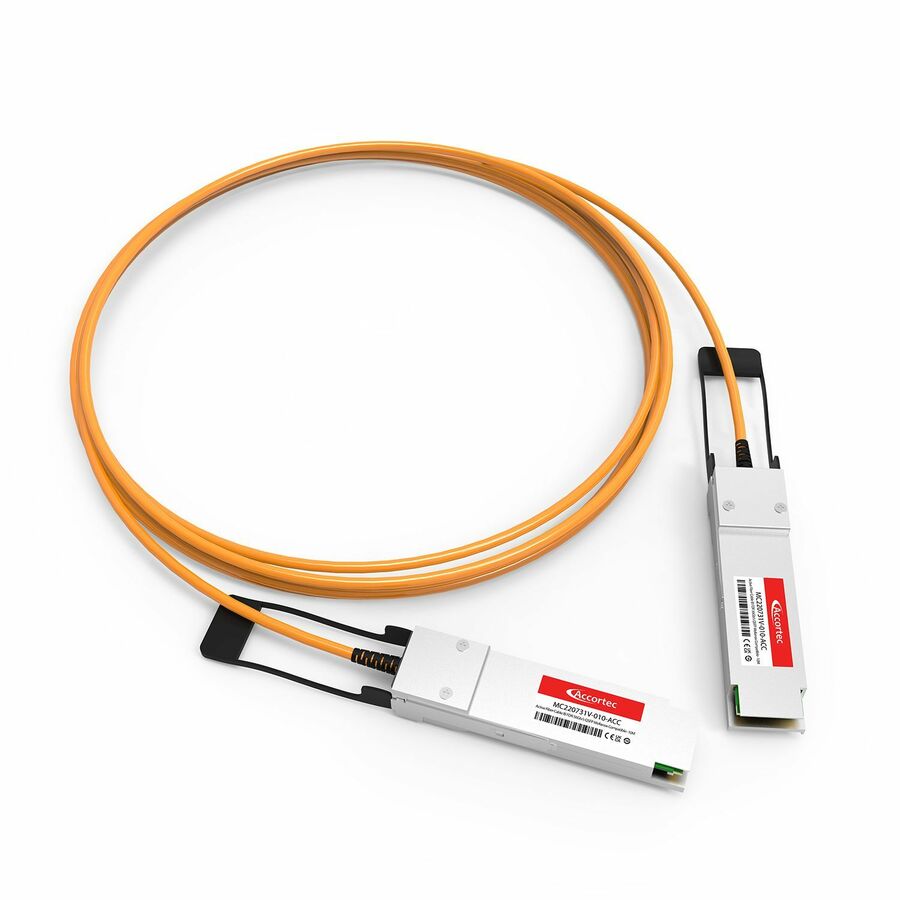

NVIDIA MC220731V-010 Active Optical Cable VPI up to 56Gb/s QSFP 10m56Gb/s QSFP+ VPI Active Optical Cable
NVIDIA Networking MC220731V is a family of VCSEL-based (Vertical Cavity Surface-Emitting Laser) QSFP+ active optical cable (AOC) designed for use in 40GbE Ethernet and 56Gb/s Virtual Port Interconnect (VPI) systems.
This family of AOCs offers high port density and configurability, as well as a longer reach than passive copper cables in data centers. Since the AOC is hot pluggable, it is easy to install and replace. The MC220731V family has a standard SFF-8685 compliant QSFP+ port on the electrical side towards the host system.
MC220731V AOCs contain four multi-mode fibers (MMF) optical transceivers per end, each operating at data rates of up to 14.0625Gb/s. The transmitters have input equalizers compensating for signal attenuation across the host PCB, and the receivers have programmable output amplitude and pre-emphasis.
Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.
Highlights
- Up to 56Gb/s data rate
- 1W maximum power consumption
- SFF-8685 and SFF-8436 compliant
- Operating case temperature of 0-70C
- 3.3V power supply
- BER better than 1E-15
- Hot pluggable
- Up to 100 meters in length
- Standard multimode fiber
- RoHS compliant
- Plenum rated (OFNP)
- Provides a simple and efficient way to connect multiple devices within your business network, ensuring smooth communication and reliable data transfer
- Features fiber optic cable type to deliver high-bandwidth data transmission with minimal signal loss, ensuring optimal performance in network setups
- AOC Technology feature ensures dependable operation and improved usability, delivering consistent performance for everyday connectivity needs
- Fully compatible with network devices, offering seamless integration for reliable performance
| Brand | |
|---|---|
| Brand | Accortec |
| General Features | |
|---|---|
| Data Transfer Rate | 56 Gbit/s |
| Manufacturer | Accortec, Inc |
| Cables | |
|---|---|
| Cable Length | 32.81 ft |
| Cable Type | Fiber Optic |
| Fiber Optic Mode | Multi-mode |
| Connector Type on First End | QSFP Network - Male |
| Connector on First End Details | 1 x QSFP Network Male |
| Connector Type on Second End | QSFP Network - Male |
| Jacket Type | Plenum |
