When you need power for compatible devices, Power over Ethernet provides it.

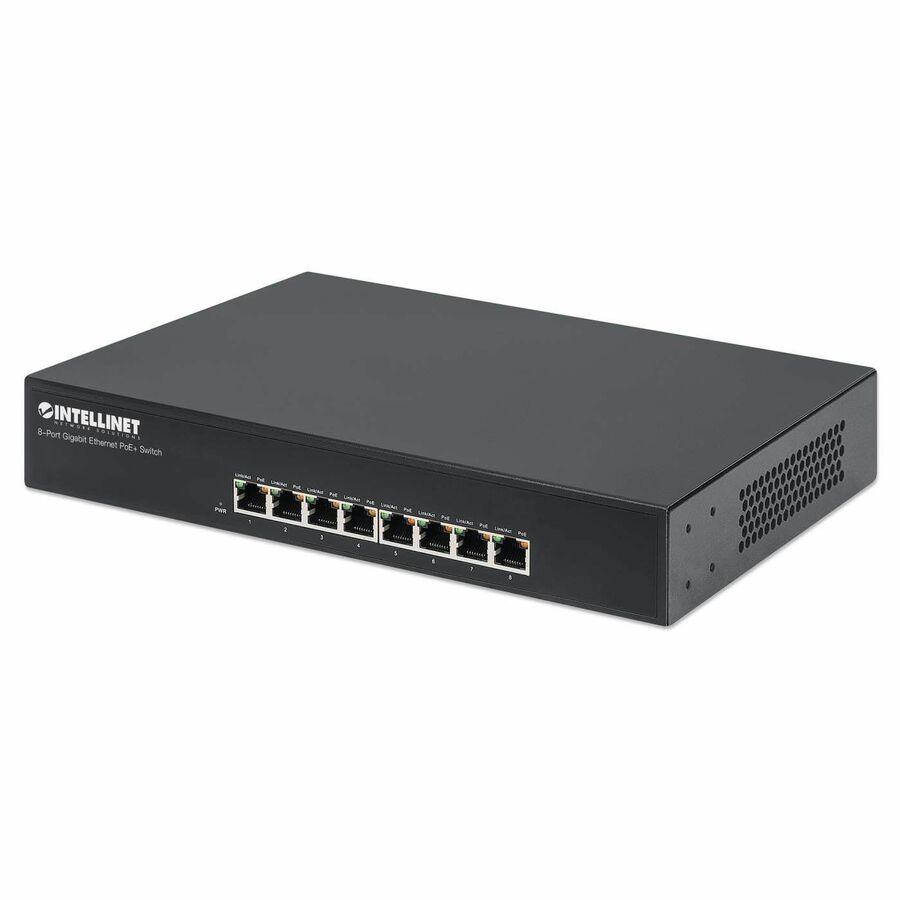

The Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Switch is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Gigabit Ethernet ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1000 Mbps.
Save installation time and money with PoE 802.3at.
The Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (e.g., legacy wireless access points or network cameras), we suggest the use of an Intellinet Network Solutions PoE/PoE+ Splitter.
* Total PoE budget for this switch is 140 watts. Per-port average power distribution is 17.5 watts; maximum per-port power usage cannot exceed 30 watts.
- Effectively increases available bandwidth on your network
- Electrical power is transmitted along with data in a single cableto devices such as Access Points, IP cameras or IP phones
- With PoE+ Port, transfer data and up to 25.5 W of power on a single cable toplaces where a power outlet is not present
- Features 8 networking ports to easily establish a local network or expand your existing one
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- The desktop installation makes it ideal for deployments outside the wiring closet
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Comes in black color for better adaption to the space
| Brand | |
|---|---|
| Brand | IC INTRACOM |
| Power & Battery | |
|---|---|
| Redundant Power Supply Suppor | No |
| Redundant Power Supply Supported | No |
| Power Source | Power Supply |
| Networking & Connectivity | |
|---|---|
| Token Ring Port | No |
| Network Technology | 10/100/1000Base-T |
| Layer Supported | 2 |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| LRE Port | No |
| Total Number of Network Ports | 8 |
| PoE (RJ-45) Port | No |
| Number of PoE (RJ-45) Ports | 4 |
| Number of PoE+ (RJ-45) Ports | 4 |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| Appearance | |
|---|---|
| Modular | No |
| General Features | |
|---|---|
| Frequency | 60 Hz |
| Manufacturer | IC INTRACOM |
| Misc Ports | |
|---|---|
| Management Port | No |
| Stack Port | No |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Bypass | No |
