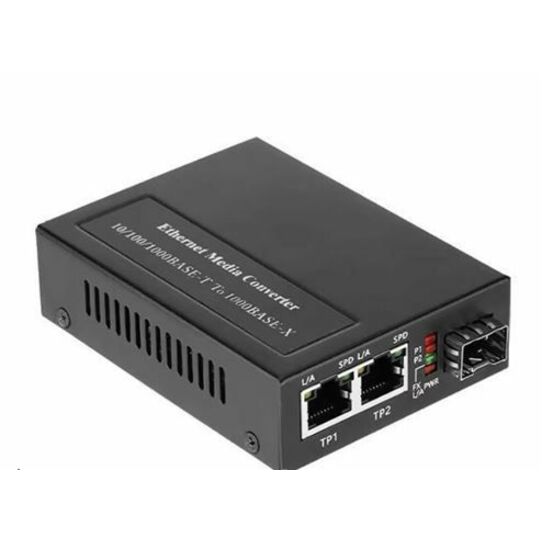

The Axiom POE+ (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3at standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to or IEEE802.3at powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
Features:
- 10/100/1000Base-TX UTP to 1000Base-FX fiber media conversion
- IEEE802.3at PoE+ PSE compatible
- Built-in AC/DC power supply
- Over-current protection
- DIP switch to set different configurations
- LFP (Link Fault Pass-through) support
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- Connect different types of media within a network with this single port
- With 10/100/1000Base-TX technology get up to 1000Mbps data transfer rate over twisted pair cable
| Brand | |
|---|---|
| Brand | Axiom Memory Solutions |
| Power & Battery | |
|---|---|
| Power Source | AC/DC |
| Power Consumption | 60 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-SX |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of PoE+ (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| General Features | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Expansion Slots | |
|---|---|
| Number of SFP Slots | 1 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
