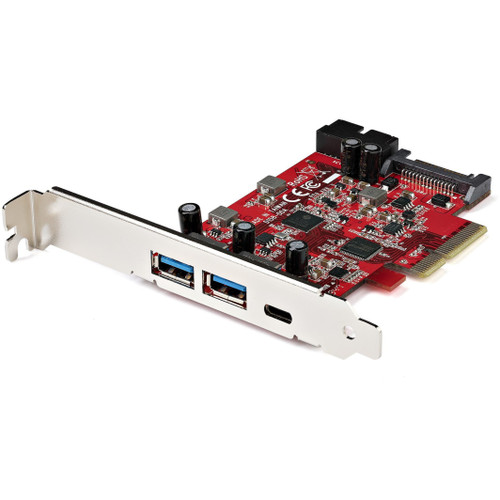

StarTech.com 5-Port USB 3.1 PCIe Card - 1x USB-C (10Gbps), 2x USB-A (5Gbps) + 1x 2-Port IDC (5Gbps)
Add an external USB Type-C and two external USB Type-A ports to your computer, plus an IDC header port that can provide two internal USB 3.0 ports
This 5-port USB 3.1 combo card makes it easy to add to the performance and connectivity of your computer. It’s one of the only USB 3.1 cards to offer a USB Type-C port (10Gbps), traditional USB Type-A ports (5Gbps), and a motherboard header.
By offering a range of USB port types, you can easily connect a variety of modern and legacy USB devices, both inside and outside your computer.
Because the card offers a 10Gbps USB-C port (USB 3.1 Gen 2), you can save time and avoid the performance bottlenecks that are often associated with other connectivity technologies.
Work faster and prepare for the future
This versatile PCI Express combo card leverages the performance potential of USB 3.1 to help you work faster. The USB-C port offers a data throughput of up to 10Gbps, so you can spend less time waiting for file transfers to complete or for access to your external peripherals.
Plus, you can rest assured that you’re set for the future, as USB-C devices become more popular and more standardized.
Connect different types of USB devices
Now you can easily add a variety of types and speeds (generations) of USB ports to your desktop or server, using a single adapter card. The card features:
One external USB-C port (USB 3.1 Gen 2 - 10Gbps)
Two external USB-A ports (USB 3.1 Gen 1 - 5Gbps)
One internal 20-pin IDC motherboard header port that can provide two internal USB-A ports (5Gbps)
With a range of port types, the card lets you bridge the gap between older and newer devices that use different connectors. You can simultaneously connect and access USB Type-A and USB Type-C devices, while using only a single PCI Express expansion slot.
By adding three types of USB ports in one combo card, you can free up space in your PC case, and eliminate the nuisance of having different cards for different USB devices.
Ideal for building or upgrading your computer
With two internal motherboard-style headers, this dynamic USB 3.1 card is perfect for upgrading or building your own computer. If your existing headers are occupied, or if you don’t have any motherboard headers, you can connect front panel hubs or card readers using this versatile alternative to costly motherboard or computer upgrades.
Connect your older USB devices
Connecting your older peripherals isn’t a problem. This 5-port USB 3.1 card is backward compatible with legacy USB 3.0 and 2.0 devices, so you can eliminate the added expense and aggravation of purchasing new devices. (USB 3.0 is also known USB 3.1 Gen 1).
The is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: The card does not support DP alt mode or USB Power Delivery.
The StarTech.com Advantage
- Connect a USB-C device, plus a range of other USB devices, to your computer, regardless of their speed or connector type
- Offers a high-performance USB-C port (10Gbps), two USB-A ports (5Gbps), and one 20-pin internal IDC motherboard header that can provide two USB-A ports (5Gbps)
- Works with your existing USB 3.0 and USB 2.0 devices, for cost-effective backward compatibility
StarTech.com 5-Port USB 3.1 PCIe Card - 1x USB-C (10Gbps), 2x USB-A (5Gbps) + 1x 2-Port IDC (5Gbps)
Specifications
| Linux operating systems supported | Yes |
| Package width | 162 mm |
| Package depth | 131 mm |
| Package height | 32 mm |
| Package weight | 124 g |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Width | 18 mm |
| Depth | 79.3 mm |
| Harmonized System (HS) code | 84733020 |
| Operating temperature (T-T) | 0 - 70 °C |
| Certification | CE, FCC, TAA |
| Height | 120 mm |
| Weight | 67 g |
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Internal | Yes |
| Data transfer rate (max) | 10 Gbit/s |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2016 |
| Compliance certificates | RoHS |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 3.0 |
| Mean time between failures (MTBF) | 50000 h |
| Chipset | ASMedia - ASM1142, VLI - VL812 |
| UASP support | Yes |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
