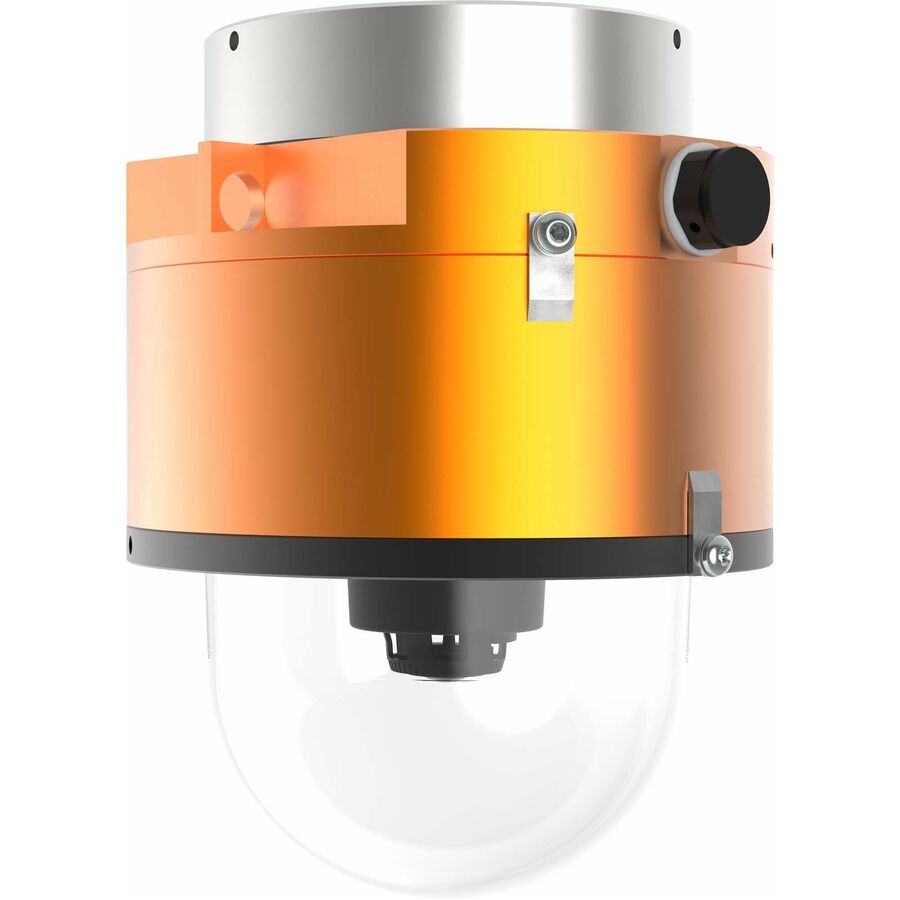

The TNM-XNF9013EPT3-Z is a cFMus Class I/II/III, Division 1 (Groups: B, C, D, E, F, G) and IECEx & ATEX Zone 1/21 (IIB+H2/IIIC) camera system. The housing is proudly designed and manufactured in the USA to exceed the highest global industry standards for safe operation in hazardous or potentially combustible environments and in the most extreme weather conditions.The TNM-XNF9013EPT3-Z utilizes an industry first patented multi-chambered enclosure design, with an explosion proof bulkhead used between chambers with each bulkhead including access ports to allow electrical/network connections to be safely passed through. The TNM-P9022EPT3-Z is designed with corrosion resistant marine-grade aluminum with an IP66/67 Type 4X rating for protection against water/dust particles and is certified to withstand temperatures ranging from -20°C to +55°C. The enclosure also features a patented GORE-TEX® Breather Drain membrane system incorporated into the housing design: air within the enclosure is allowed to equalize with the surrounding atmosphere, preventing interior condensation and negating any potential damage to the onboard electronics. The TNM-XNF9013EPT3-Z utilizes 802.3at Power over Ethernet (PoE+) for power and network connectivity, providing a flexible low-voltage install solution.
- AI Technology Classified Object Type: Person/Face/Vehicle/License Plate
- Support Detection Shot
- Object Detection - Virtual Line (Crossing Detection), Virtual Area (Loitering/Intrusion/Enter/Exit) Stereographic Type Fisheye Lens
- Extreme WDR (2MP@60fps) By Scene Analysis And Local contrast Enhancement
- WiseNR-, Auto Prefer Shutter Control Based On AI
- WiseStream
| Brand | |
|---|---|
| Brand | Hanwha Group |
| Storage | |
|---|---|
| Storage Type | Memory Card |
| Screen / Display | |
|---|---|
| Color Supported | Color |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V DC |
| Maximum Power Consumption | 23 W |
| Power Source Type | PoE+ |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Protocols | Unicast |
| USB Ports | |
|---|---|
| USB | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Field of View | H: 209°/180° , V:83° |
| HD Recording | Yes |
| Night Vision | Yes |
| Lens Included | Yes |
| Night Vision Type | Infrared |
| Effective Camera Resolution | 12 Megapixel |
| Maximum Video Resolution | 3584 x 2688 |
| Image Sensor Type | CMOS |
| Maximum Focal Length | 1.08 mm |
| Maximum Aperture | f/2.2 |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| Lens Type | Fixed |
| Night Vision Distance | 26.25 ft |
| Maximum Frame Rate | 60 fps |
| Image Sensor Size | 1/2.3" |
| Size / Dimensions | |
|---|---|
| Form Factor | Fisheye |
| General Features | |
|---|---|
| Remote Management | Yes |
| Durability | Explosion Proof |
| Video Formats | H.265M |
| Analog Video Signal Format | CVBS |
| Manufacturer | Hanwha Group |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Environmentally Friendly | Yes |
| Ingress Protection Rating | IP67 |
| Impact Protection Rating | IK10 |
