Data strategy, not just data storage
Ultrastar NVMe™ enterprise SSDs continue to be the ideal solution for cloud and server providers who need performant, high-capacity, cost-optimized, read-intensive performance for their data-intensive applications.
Unlocking the Full Potential of Enterprise SSDs

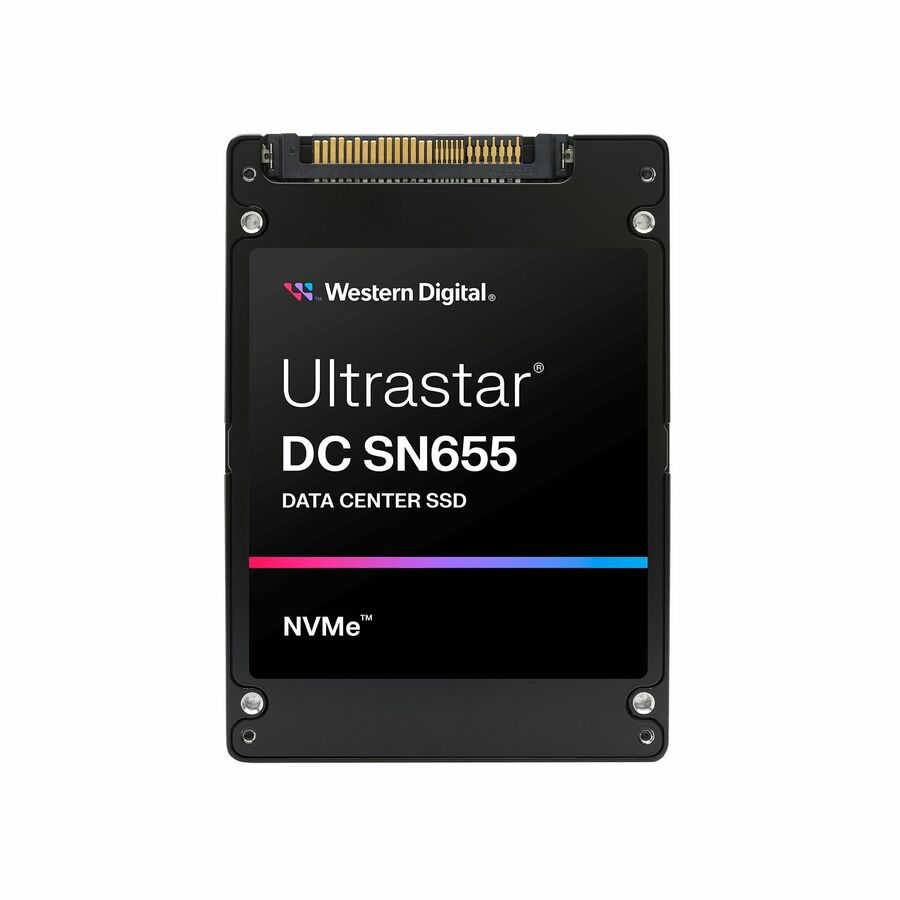

With dual-port redundancy and failover capability, end-to-end data protection and additional enterprise features, Ultrastar DC SN655 NVMe SSDs help ensure your data is secure and available when needed. With high-capacity, low-latency performance reaching up to 1.1M IOPs, storage providers are efficiently able to increase capacity for modern applications processing large unstructured datasets and are reducing time-to-insights of big data and enabling efficient machine learning.
Features
Ultrastar DC SN655 NVMe SSDs includes the next generation Western Digital NVMe 1.4b controller with PCIe Generation 4.0 interface and Western Digital BiCS5 TLC 3D NAND to enable higher capacities and performance at scale for increasingly larger application workloads. Designed and built for the standard 2.5" SSD storage infrastructure, the SN655 includes support for U.2 and U.3 backplanes and features power loss protection and 2.5M MTBF (projected) and 1.0 DW/D with a 5 year limited warranty.
Emerging Workloads
Ultrastar DC SN65x NVMe SSDs are optimized for cloud and scaleout workloads, providing high QoS consistency for the emerging workloads for big data, artificial intelligence, and machine learning that are increasing in size and complexity making them the ideal solution for scaling capacity and maximizing GB/watt.
- Power loss protection, end-to-end data path protection, variable sector sizes, and more
- Western Digital NVMe 1.4 Compliant Controller and PCle® 4.0
- Western Digital BiCS5 3D TLC NAND
| Brand | |
|---|---|
| Brand | Western Digital Corporation |
| Storage | |
|---|---|
| Storage Capacity | 30.72 TB |
| Drive Type | Internal |
| Drive Interface | PCI Express NVMe |
| Drive Interface Standard | PCI Express NVMe 4.0 |
| Endurance (DWPD) | 1 |
| Endurance Type | Read Intensive |
| Random 4KB Read | 1052000IOPS |
| Random 4KB Write | 66000IOPS |
| Maximum Sequential Read | 5.96 GB/s |
| Maximum Sequential Write | 3.32 GB/s |
| Size / Dimensions | |
|---|---|
| Form Factor | U.3 15 mm |
| General Features | |
|---|---|
| Mean Time Between Failures (M | 285.2 Year |
| Manufacturer | Western Digital Corporation |
