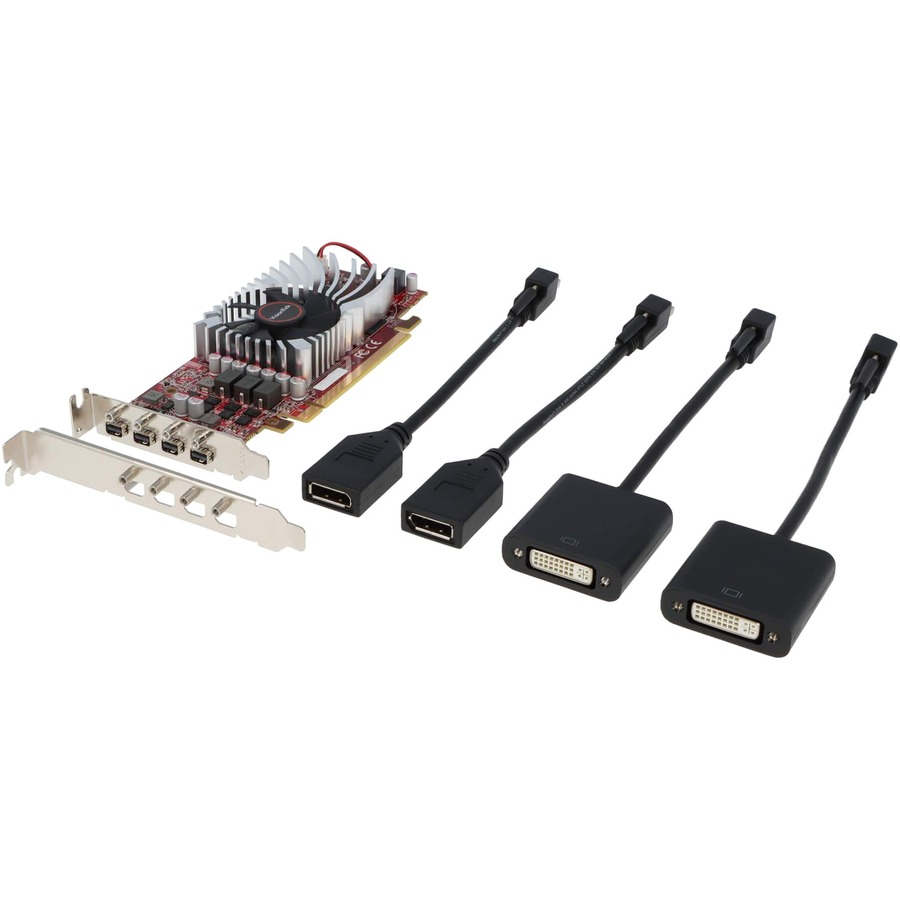

Radeon RX 550 4M 2GB GDDR5 Graphics Card (4x mDP)
The VisionTek AMD Radeon RX 550 4M 2GB GDDR5 graphics card is ideal for businesses looking to increase productivity by supporting up to four displays. With 4K resolution support, the RX 550 is perfect for digital signage in a corporate office or high resolution menus in restaurants. Turn your system into a marketing, trading or training power house.
No additional power is required, making this card ideal for small or full sized systems with limited power supply options. With the small form factor card size and brackets for both SFF and regular ATX cases, this card fits most common business and personal systems on the market today keeping this a versatile option for nearly any environment
Applications
The VisionTek RX 550 4M Graphics Card gives you the power and performance you need to take business to the next level. From showcasing your company with a Reception Video Wall, to your restaurant installing Live Action Menus or you the Professional looking to stay on the cutting edge and keeping all of your information in front of you, we have you covered.
Single Slot
The RX 550 4M fits a full height or small form factor system an featuring 4 mini DisplayPort ports in a single slot.
High Speed Memory
While consumer grade cards use common DDR3 memory, the RX 550 4M uses 2GB of higher bandwidth GDDR5 memory to deliver lag-free content with the highest resolution possible.
Low Power
Thanks to an energy efficient design, the RX 550 4M requires only 50 watts of power so it can be run off the system power bus. With most systems featuring a factory-installed 350 watt or higher power supply, you don't have to purchase and install a larger power supply.
HD Audio
By incorporating Discrete Digital Multi-Point Audio technology into its chipset, the RX 550 4M is able to deliver HD 7.1 surround sound independently to four displays via the four interfaces on the card.
Multi Monitor
The RX 550 4M 2GB GDDR5 graphics card supports up to four displays with 4K resolutions with direct DisplayPort connections. For other display connections, you may need to purchase the appropriate active adapters.
- Whether you want to power a convenience store display, a multi-monitor display wall in a public venue, feed four individual monitors to separate rooms in your business office environment, the RX550 4M is ready to present your desired message or content from a single PC.
- Short/Small Form Factor (SFF) design fits in today's Low-Profile desktops and workstations via the short bracket mounted on card. The card is convertible to standard ATX design with the included tall bracket for standard chassis as well.? While consumer grade cards use common DDR3 memory, the RX550 4M uses 2GB of higher bandwidth GDDR5 memory to deliver lag-free content with the highest resolution possible.
- Thanks to an energy efficient design, the RX550 4M requires only 50 watts of power so it can be run off the system power bus. With most systems featuring a factory-installed 350 watt or higher power supply, you don't have to purchase and install a larger power supply.
- By incorporating Discrete Digital Multi-Point Audio t
| Brand | |
|---|---|
| Brand | VisionTek Products |
| GPU / Graphics | |
|---|---|
| GPU Clock | 1.07 GHz |
| Multi-GPU Technology | CrossFire |
| Bus Width | 128 bit |
| API Supported | DirectX 12 |
| Maximum Digital Display Resolution | 3840 x 2160 |
| Number of Monitors Supported | 4 |
| Memory / RAM | |
|---|---|
| Standard Memory | 2 GB |
| Memory Technology | GDDR5 |
| Screen / Display | |
|---|---|
| Maximum Digital Display Resol | 3840 x 2160 |
| Power & Battery | |
|---|---|
| Power Supply Wattage | 350 W |
| DisplayPort | |
|---|---|
| Number of Mini DisplayPort Ou | 4 |
| Mini DisplayPort | Yes |
| Number of Mini DisplayPort Outputs | 4 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Slot Space Required | Single |
| Card Height | Full-height |
| General Features | |
|---|---|
| Chipset Manufacturer | AMD |
| Chipset Model | RX 550 |
| Chipset Line | Radeon |
| Chipset Series | RX 500 |
| Manufacturer | VisionTek Products, LLC |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 3.0 x8 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Packaging & Origin | |
|---|---|
| Package Type | Retail |
