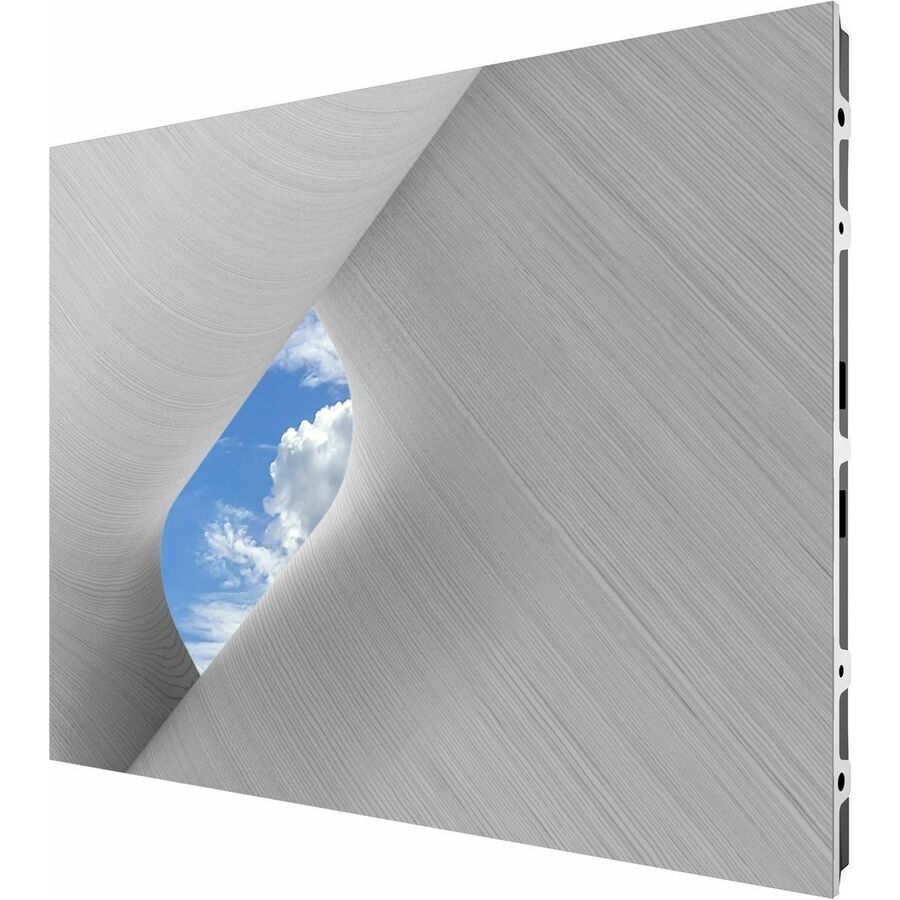

The ViewSonic LDC series is an innovative, configurable All-in-One LED display that offers flexible sizing and effortless installation-all in a single solution. Combine the LDC031-120 LED cabinet to create video walls in diverse aspect ratios and sizes, delivering compelling digital signage that brings your concepts to life. Its all-in-one design ensures a hassle-free installation process and intuitive operation. Using Glue-on-Board (GOB) surface treatment technology, the IP54-rated LED modules provide enhanced protection against collision, dust, and moisture - making it ideal for public spaces such as lobbies, shopping malls, and transportation hubs. With its slim 1.5in thickness and a control box that can be detached to achieve a 99% screen-to-body ratio, this premium display offers an exceptional viewing experience with sleek aesthetics. Complete with centralized management through LAN connectivity to enhance operational efficiency.
- Customizable screen size with All-in-One design for hassle-free installation
- Anti-collision, dustproof, and moisture-proof through GOB surface treatment
- Centralized and efficient management via LAN control
- Detachable system control box for minimalistic aesthetics and easy access
- Ultra-slim design that seamlessly blends into any space
| Brand | |
|---|---|
| Brand | ViewSonic Corporation |
| CPU / Processor | |
|---|---|
| Processor Model | RK3399 |
| GPU / Graphics | |
|---|---|
| Number of Screens | 1 |
| Memory / RAM | |
|---|---|
| Standard Memory | 4 GB |
| Memory Technology | DDR4 SDRAM |
| Screen / Display | |
|---|---|
| Native Contrast Ratio | 6 , 500:1 |
| Viewable Screen Size | 32" |
| Backlight Technology | Direct View LED |
| Video Wall Compatible | Yes |
| Display Resolution | 256 x 192 |
| Display Screen Type | LCD |
| Aspect Ratio | 4:3 |
| Brightness | 600 Nit |
| Pixel Pitch | 98.4 mil |
| Color Depth | 13-bit |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Ethernet | Yes |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Type-C | Yes |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 4 |
| Number of HDMI 2.0 Ports | 4 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Audio Ports | |
|---|---|
| Number of Audio Line Out | 2 |
| General Features | |
|---|---|
| Manufacturer | ViewSonic Corporation |
| Maximum LED Life | 11.4 Year |
| Misc Ports | |
|---|---|
| Serial | Yes |
| Number of Infrared Inputs | 1 |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| TAA Compliant | No |
| Energy Star | No |
| Ingress Protection (IP) Rating | IP54 |
