Tripp Lite by Eaton VGA to DisplayPort and USB-A Adapter Cable Kit for Tripp Lite by Eaton B020-U and B022-U KVM, 6 ft. (1.8 m)

$ 84.99 $ 84.99
$ 84.99

$ 84.99 / Units
  • Brand
  • Connector on Second End Detai
  • Shipping Height
  • Shipping Width
  • Shipping Weight (Approximate)
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Features
  • Cable Length
  • Connector Type on First End
  • Connector on First End Details
  • Connector Type on Second End
  • Connector Color
  • Jacket Material
  • Jacket Type
  • Jacket Color
  • Data Transfer Rate
  • Environmentally Friendly
  • Environmental Compliance
  • Country of Origin
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Compatibility
  • Device Supported
  • Manufacturer Website Address
  • Supported Resolution
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF

Connect Your Computer's DisplayPort and USB Ports to a Tripp Lite KVM Switch

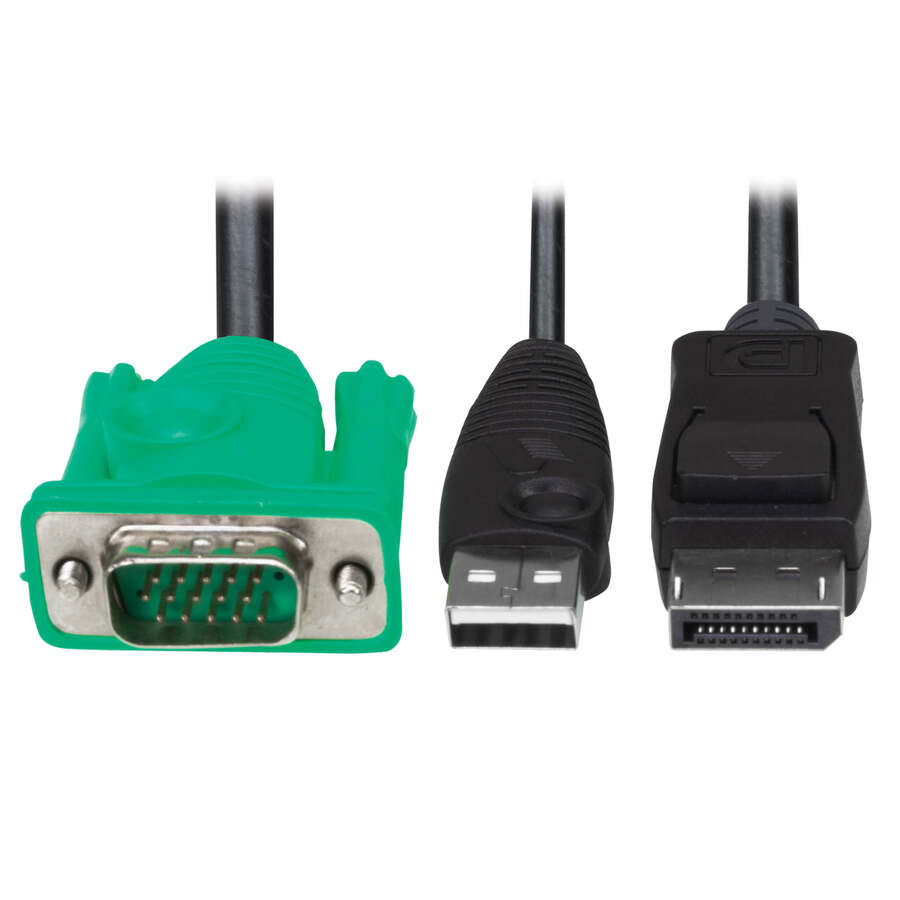

This convenient cable kit saves you money by combining necessary cables into one bunch. For use with Tripp Lite B020-U and B022-U KVM switches, the P778-006-DP features male DisplayPort and USB-A connectors for your server or computer and a male HD15 connector for the KVM. The DisplayPort 1.1-compliant cable supports HD resolutions up to 1920 x 1080 (1080p) at 60 Hz with 36-bit Deep Color. The USB 2.0 cable supports 480 Mbps speeds. The bus-powered cable kit requires no software or external power adapter. A sliding switch on the back of the housing lets you decide between USB power mode or USB + DP power mode with LEDs indicating which mode you have chosen.

  • Supports HD video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
  • LEDs indicate at a glance which power mode the cable kit is using
  • Supports USB 2.0 speeds up to 480 Mbps for reliable data transfers
  • Plug and play with no software or external power supply required
  • Compatible only with select Tripp Lite B020-U and B022-U Series KVM switches
  • This product is covered by a Lifetime Limited Warranty
Brand
Brand Eaton Corporation
Screen / Display
Supported Resolution 1920 x 1080
Size / Dimensions
Shipping Height 2.32"
Shipping Width 6.30"
Shipping Weight (Approximate) 8.96 oz
General Features
Data Transfer Rate 480 Mbit/s
Manufacturer Eaton Corporation
Cables
Cable Length 6 ft
Connector Type on First End HD-15 - Male
Connector on First End Details 1 x 15-pin HD-15 - Male
Connector Type on Second End USB 2.0 Type A - Male
Connector Color Green
Jacket Material Polyvinyl Chloride (PVC)
Jacket Type VW-1
Jacket Color Black
Compliance & Certification
Environmentally Friendly Yes
