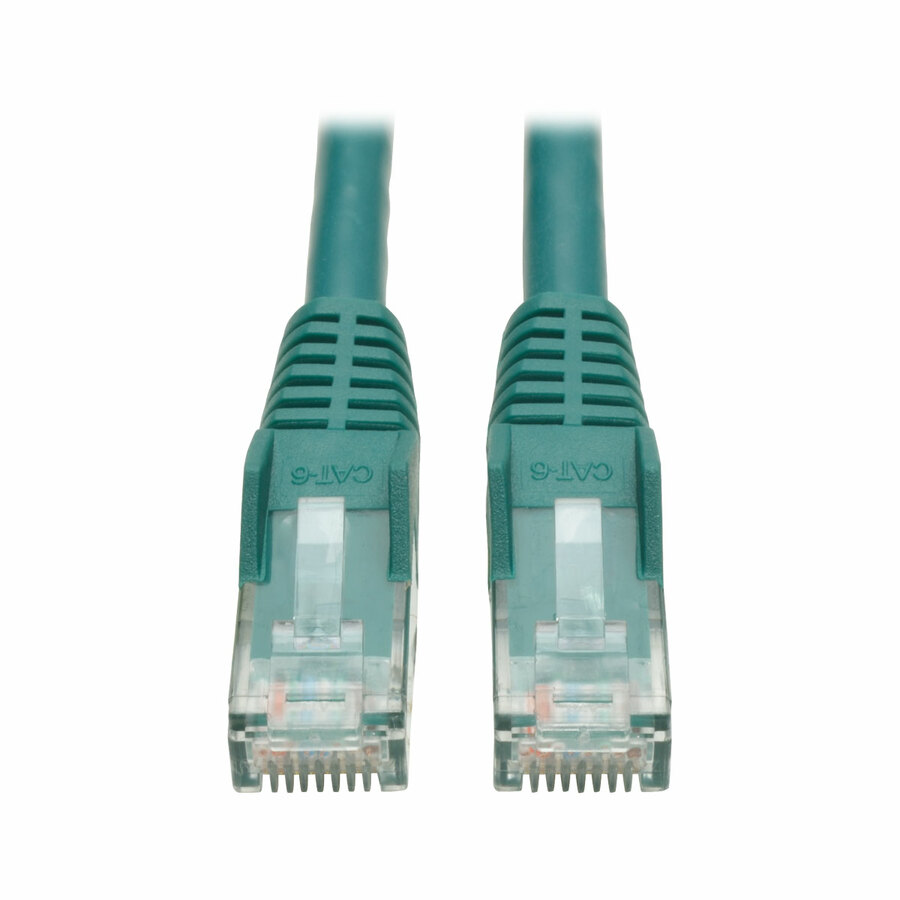

With Tripp Lite's category 6 molded patch cables you can stay ahead of the game by using this high-speed cable to distribute data, voice and video. These cables deliver stable performance up to 550MHz. Each comes UL verified meets EIA/TIA Cat6 TIA/EIA-568-B-2.1 draft 9 standards. Constructed with high-quality copper wire and a staggered-pin plug design, near-end crosstalk levels are kept to a minimum. Designed for use in category 6, category 5e and category 5 applications. Cat6 cables are available in a variety of colors with a snagless boot preventing cable snags.
- Feature molded connectors with integral strain relief. Rated for 550 MHz/1 Gbps communication
- Snagless boots protect the locking tabs on the RJ45 connectors from being damaged during installation
- Drastically reduce impedance & structural return loss compared to standard 100Mhz wire
- Meets Category 6 cabling standards
- Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801, and ETL (Category 6, draft 11)
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Appearance | |
|---|---|
| Boot Type | Snagless |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Cables | |
|---|---|
| Conductor | Copper |
| Cable Length | 12 ft |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Connector Type on First End | RJ-45 Network - Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
