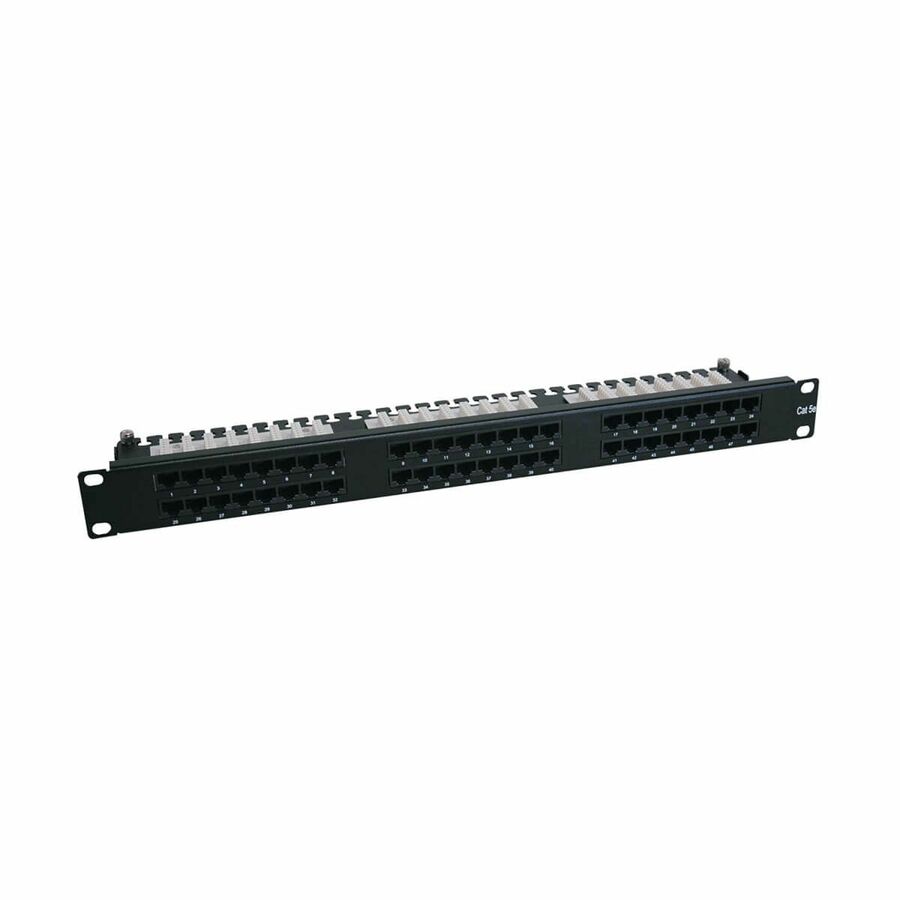

Tripp Lite's 1U, 48port, Cat6 High Density Patch panel frees up valuable rack real estate by condensing a typical 2U 48 port patch panel into 1U of space. The unique design allows for easy punch down termination. Simply unscrew 4 slotted thumbscrews to remove the "upper deck" punch down array. Punch down the "lower deck" cables first, then replace the upper deck, and punch down upper array. Integrated wire loom keeps cabling tidy and easy to route. Heavy Duty 14GA cold rolled steel construction. 110 connectors are color coded for either 568A or 568B wiring.
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Built-in wire management loom
- Removable "upper-deck" for easy punch down termination
- Space saving CAT6 Rated 48-port 1U 110 type Patch panel
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 48 |
| Size / Dimensions | |
|---|---|
| Compatible Rack Unit | 1U |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Misc Ports | |
|---|---|
| Total Number of Ports | 48 |
| Telephony | |
|---|---|
| Number of RJ-11 Ports | 48 |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
