- DEVICE INTERFACE: 8 x 2.5GBASE-T ports (100Mbps/1Gbps/ 2.5Gbps); 1 x 10G SFP+ slot (1Gbps / 10Gbps); LED indicators
- 2.5G PORTS: The 9 Port network switch is equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
- 10 GIGABIT SFP+ SLOT: A dedicated 10G SFP+ slot for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network.
- SWITCHING CAPACITY: The unmanaged switch is equipped with a 60Gbps Switching Capacity
- COMPATABILITY: The 9 Port Ethernet switch is backwards compatible with 10/100/1000Mbps devices.
- WALL MOUNTABLE: The 2.5G unmanaged switch features a durable metal housing with a convenient wall mountable design for greater installation flexibility.
- FANLESS DESIGN: The fanless design lowers energy consumption and eliminates distracting operating noise.
- IEEE STANDARD: IEEE 802.3bz (2.5G) and IEEE 802.3ae (10G SFP+) Compliant
- TRENDnet LIFETIME PROTECTION: The TEG-S5091 9-Port Unmanaged 2.5G Switch is backed with Lifetime Manufacturer Protection
- NDAA / TAA compliant (U.S. and Canada only)

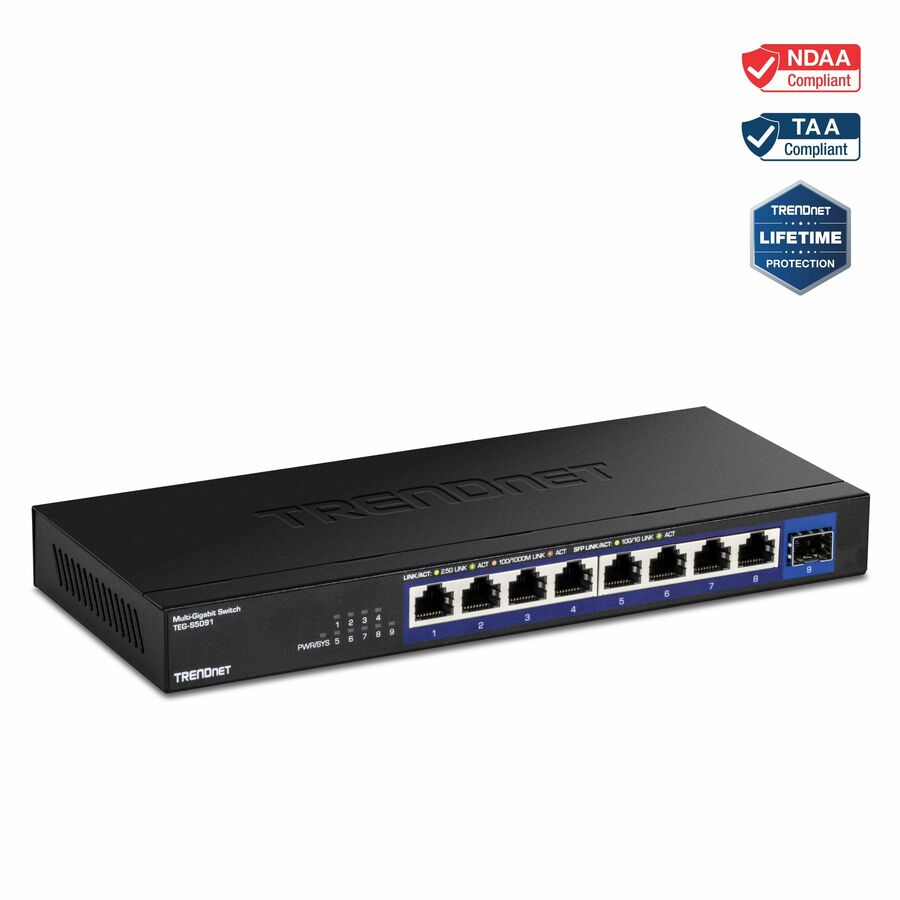

Expand your network's bandwidth and reduce digital bottlenecks with TRENDnet's 9-Port 2.5G Unmanaged Switch with 10G SFP+ Port. This 2.5G switch with an SFP+ port comes equipped with 2.5GBASE-T RJ-45 ports that provide speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling, and a 10G SFP+ slot for ultra-fast, long-distance fiber networking. Each 2.5G switch with an SFP+ port features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. TRENDnet's reliable 2.5G Ethernet switches with a 10G SFP+ port are cost-effective solutions to increase your network's throughput.
2.5G Ports
Equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
10G SFP+ Port
A dedicated 10G fiber SFP+ port for an ultra-fast network connection provides a cost-effective solution in adding 10G link capability.
Fanless
The fanless design of the 2.5G switches with an SFP+ port lowers energy consumption costs and eliminates operating noise.
FEATURES | Easy Installation
No configuration needed, simply connect network devices to the 2.5G switch with an SFP+ port
2.5G Ports
Equipped with 2.5GBASE-T RJ-45 ports, the 2.5Gb Ethernet switch provides ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling
10G SFP+ Port
Dedicated 10G fiber SFP+ port for an ultra-fast network connection provides a cost-effective solution in adding 10G link capability to an SMB network
Switching Capacity
60Gbps switching capacity
Fanless
Fanless design on the 2.5G switch with an SFP+ port lowers energy consumption and eliminates operating noise
Housing Design
Sturdy metal housing
- 8 x 2.5G RJ-45 ports
- 1 x 10G fiber SFP+ port
- Compatible with existing Cat5e or better cabling
- Backward compatible Ethernet speeds of 1000Mbps
- Backward compatible SFP speeds of 1000Mbps
- Fanless design eliminates noise
- Wall mountable for installation flexibility
- 60Gbps switching capacity
- IEEE 802.3bz (2.5G) and IEEE 802.3ae (10G SFP+) compliant
- Lifetime Warranty
- NDAA / TAA compliant (U.S. and Canada only)
| Brand | |
|---|---|
| Brand | TRENDnet |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Power Source | Power Adapter |
| Power Consumption | 9.50 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 8 |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Manageable | No |
| Frequency | 60 Hz |
| Manufacturer | TRENDnet |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 1 |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 1 x 10 Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
