Optimize Your Workstation

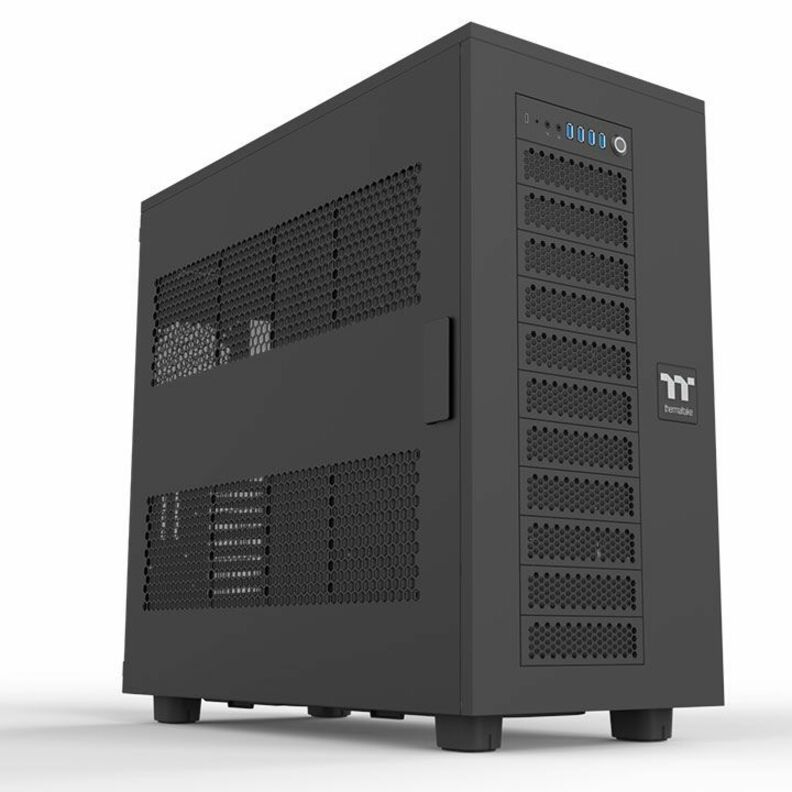

The AX700 Super Tower Chassis is a high-performance workstation super tower designed for content creators, small enterprises, and gamers, offering exceptional performance, storage, and cooling. It supports an XL-ATX motherboard, up to five 2-slot graphics cards, and eighteen 3.5" hard drives, making it ideal for demanding tasks like video editing and AI computing. With advanced thermal management, including space for up to eighteen 120mm fans and large radiators, the AX700 Super Tower Chassis ensures optimal airflow and hardware longevity.
Versatile Expandability
The AX700 Super Tower Chassis and AX100 pedestal offer multiple stacking options, either on top or bottom, or both top and bottom, creating an expandable system for enthusiasts. This setup allows for enhanced liquid cooling, storage, or dual system configurations, taking the expandability to the next level.
Premium Cooling Solutions
Supports up to eighteen 120mm/140mm fans and a 560mm DIY or 420mm AIO radiator on top for optimal thermal performance.
GPU Holder
The AX700 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.
Two Perforated Side Panels
The two perforated side panels ensure better airflow, while the hinged design allows for easy access.
Perfect Dust Protection
The AX700 Super Tower Chassis features dust filters on the front, top, bottom, and motherboard sides to protect the system.
Handy I/O Ports
Front-located I/O ports consist of following functions:
- Power Button with Integrated Power LED
- HDD LED
- USB 3.0 Type-A x 4
- USB 3.2 Gen 2 Type-C x 1
- HD Audio
Advanced Hardware Solutions
The AX700 Super Tower Chassis supports a 190mm CPU cooler, 630mm GPU (without HDD rack), and a 220mm power supply. It fits up to eighteen 120mm/140mm fans, a 560mm DIY or 420mm AIO radiator on top, and up to eighteen 3.5"/2.5" hard drives in the HDD cages and HDD trays. It can also be expanded by stacking with the AX100 for enhanced hardware solutions.
- Supports XL-ATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
- 20 bays to add innumerable components and experience a peak computing performance
- The biggest tower size out there in the PC case market right now, the super tower, is usually meant for enthusiasts, but can be availed by any client
| Brand | |
|---|---|
| Brand | Thermaltake Technology Co. |
| GPU / Graphics | |
|---|---|
| Maximum GPU Length | 24.80" |
| Power & Battery | |
|---|---|
| Maximum PSU Length | 8.66" |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 5 |
| Front USB | Yes |
| USB Port Details | 1 x USB 3.2 (Gen 2) Type C |
| Audio Ports | |
|---|---|
| Total Number of Audio Out Por | 1 |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Super Tower |
| General Features | |
|---|---|
| Motherboard Supported | ATX |
| Cooler Type | Fan/Liquid Cooler |
| Fan Size Supported | 5.51" |
| Maximum CPU Cooler Height | 7.48" |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Number of Fans Supported | 18 |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 10 |
| Drive Bays | |
|---|---|
| Number of Internal 2.5"/3.5" | 18 |
| Number of Total Expansion Bays | 20 |
| Number of Internal 5.25" Bays | 2 |
