StarTech 2S1P PCIe Parallel Serial Combo Card, TAA

44.99 44.99
44.99

44.99 / Units
  • Brand
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Number of Serial Ports (Exter
  • Number of Parallel Ports (Ext
  • Platform Supported
  • Host Interface
  • Form Factor
  • Length
  • Card Height
  • Data Transfer Rate
  • UART Type
  • TAA Compliant
  • Environmentally Friendly
  • Packaged Quantity
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Model
  • Manufacturer Website Address
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

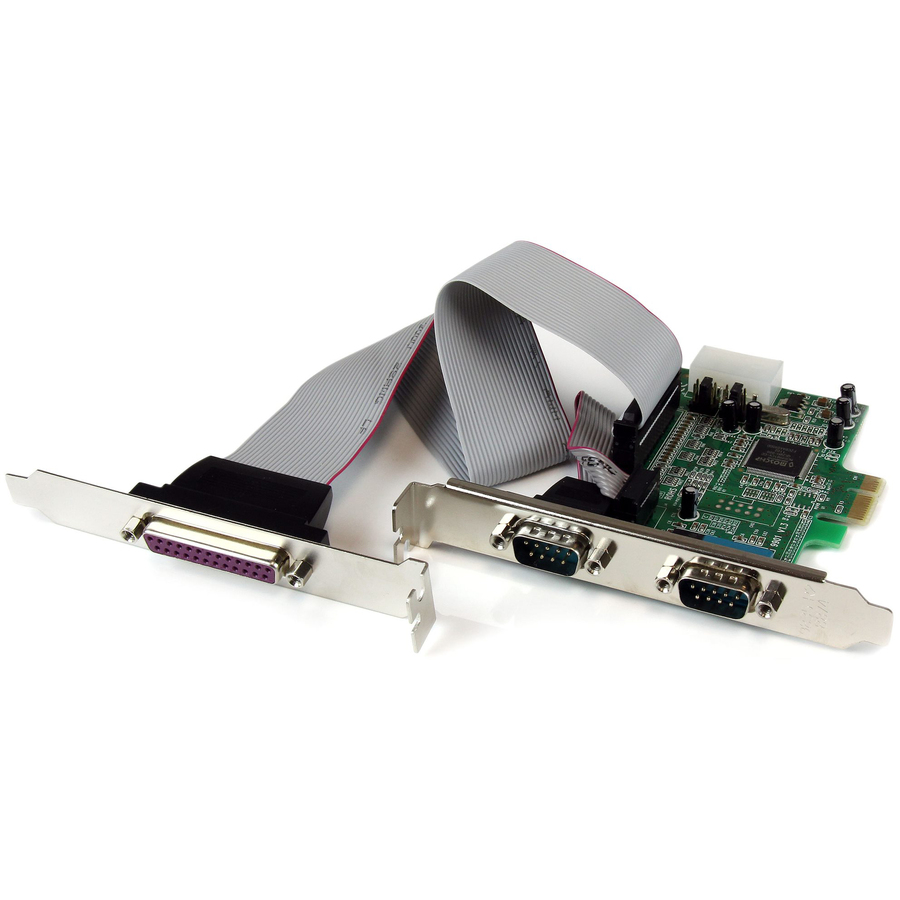

The PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design. Compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor. This product is a replacement for our PEX2S5521P card. Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer

More from the Manufacturer

  • Automated in-band flow control using programmable Xon/Xoff in both directions
  • Native single-chip, single lane PCI Express
  • Automated out-of-band flow control using CTS/RTS and DSR/DTR
  • Configurable in 5V, 12V, and RI (non-powered) modes
  • Selectable power output on pin 9 for the serial port
  • 128-byte deep FIFO per transmitter and receiver
  • Compliant with PCI Express base specifications revision 1.0a
  • One parallel port with data transfer rate up to 1.5 Mbps
  • Two high speed RS232 serial ports with data transfer rate up to 460.8 Kbps
Brand
Brand StarTech.com
Size / Dimensions
Form Factor Plug-in Card
Card Height Dual-profile
General Features
Data Transfer Rate 460.8kB/s Serial Port
UART Type 16550
Manufacturer StarTech.com
Misc Ports
Number of Serial Ports (Exter 2
Number of Parallel Ports (Ext 1
Host Interface PCI Express x1
Compliance & Certification
TAA Compliant Yes
Environmentally Friendly Yes
