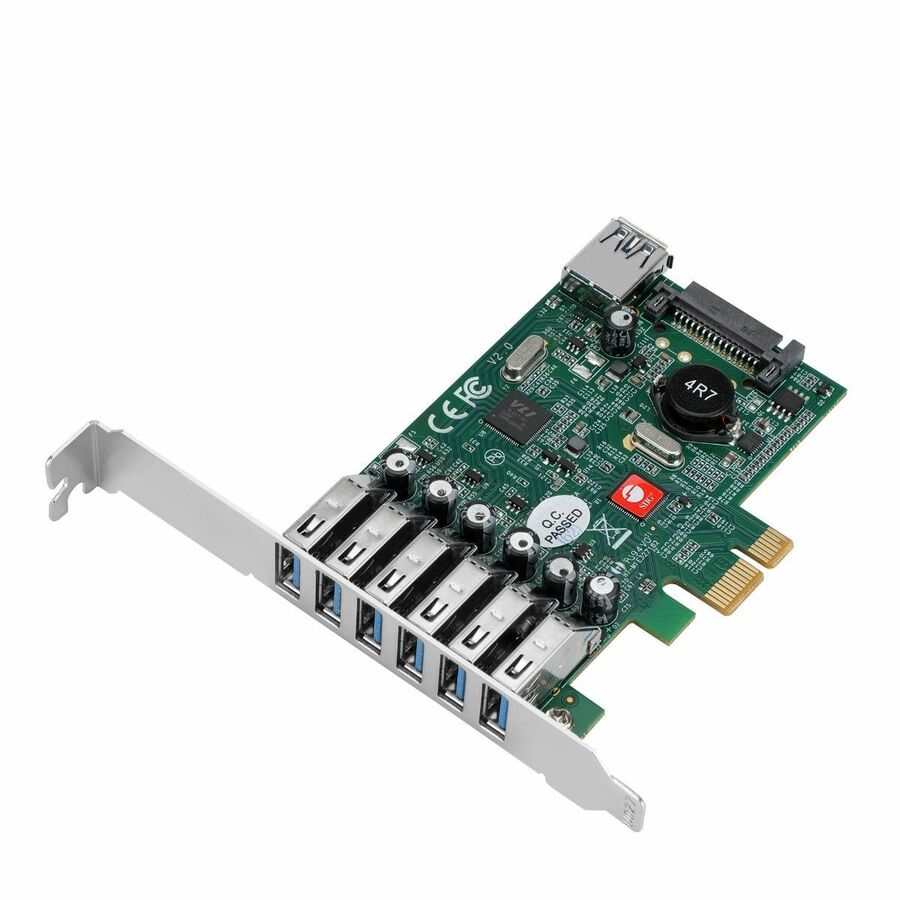

Adds six external and one internal SuperSpeed USB 3.2 Gen 1 Type-A 5Gbps ports to your PCIe enabled desktop computer, PCIe 2.0 standard
- Adds seven SuperSpeed USB 3.2 Gen 1 Type-A 5Gbps ports, 6 external and one internal, to your desktop system
- Industry recognized high performance Renesas uPD720201 + VL817 chipset
- Supports the following speed data rates: Low-speed (1.5 Mbps) / Full-speed (12Mbps) / High-speed (480 Mbps) / Super-speed (5 Gbps)
- Complies with PCIe 2.0 standard; Compliant with Intel's eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
- Supports USB legacy function and UASP mode (UASP supports Windows 10 and 8 embedded drivers only)
- Supports PCI Bus Power Management Interface Specification Revision 1.2
- Dual-profile bracket included (full & low profile) designed to fit multiple system form factors with included brackets
- Each USB port features independent over-current protection to further protect your connected devices and the PCIe board itself from unforeseen power spikes
| Brand | |
|---|---|
| Brand | SIIG |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 7 |
| Number of USB 3.0 Ports | 7 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Manufacturer | SIIG, Inc |
| Misc Ports | |
|---|---|
| Number of SATA Ports | 1 |
| Host Interface | PCI Express 2.0 x1 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
