- Extends HDMI signals from DVD players, game consoles, or HDMI-equipped computers up to 164 ft (50 meters) via Cat6/7 networking cable, ideal for home theater, conference room or other audio/video applications that require remote location setup
- Supports Ultra High-Definition video resolution up to 4K@60Hz, HDCP 2.2, YUV 4:4:4, 8-bit, HDR 4:2:0 10-bit to deliver a crystal-clear picture quality, Deep color and 3D
- The transmitter can work as an HDMI splitter with the additional HDMI output design and allows screen mirroring to the extended display
- Supports EDID passthrough and auto downscaling, detects and configures video resolution from 4K to 1080p to the capabilities of each connected monitor.
- Audio supports PCM / DTS-HD/ Dolby Digital 5.1ch, support IR passthrough for 20KHz to 60KHz
- Lightning Protection, Surge Protection, ESD Protection provides durability and minimizes EMI/RFI noise interference.
- Premium metal housing offers excellent heat dissipation further enhances durability for dependable performance an
| Brand | |
|---|---|
| Brand | SIIG |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 2 |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 x 2160 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 4.64 oz |
| Receiver Width | 2.95" |
| Receiver Weight (Approximate) | 4.64 oz |
| Receiver Height | 0.83" |
| Receiver Depth | 2.36" |
| Transmitter Depth | 2.36" |
| Transmitter Height | 0.83" |
| Transmitter Width | 2.95" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 2 |
| Frequency | 60 Hz |
| Maximum Operating Distance | 164 ft |
| Supported Video Modes | 480p |
| Manufacturer | SIIG, Inc |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 7 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |

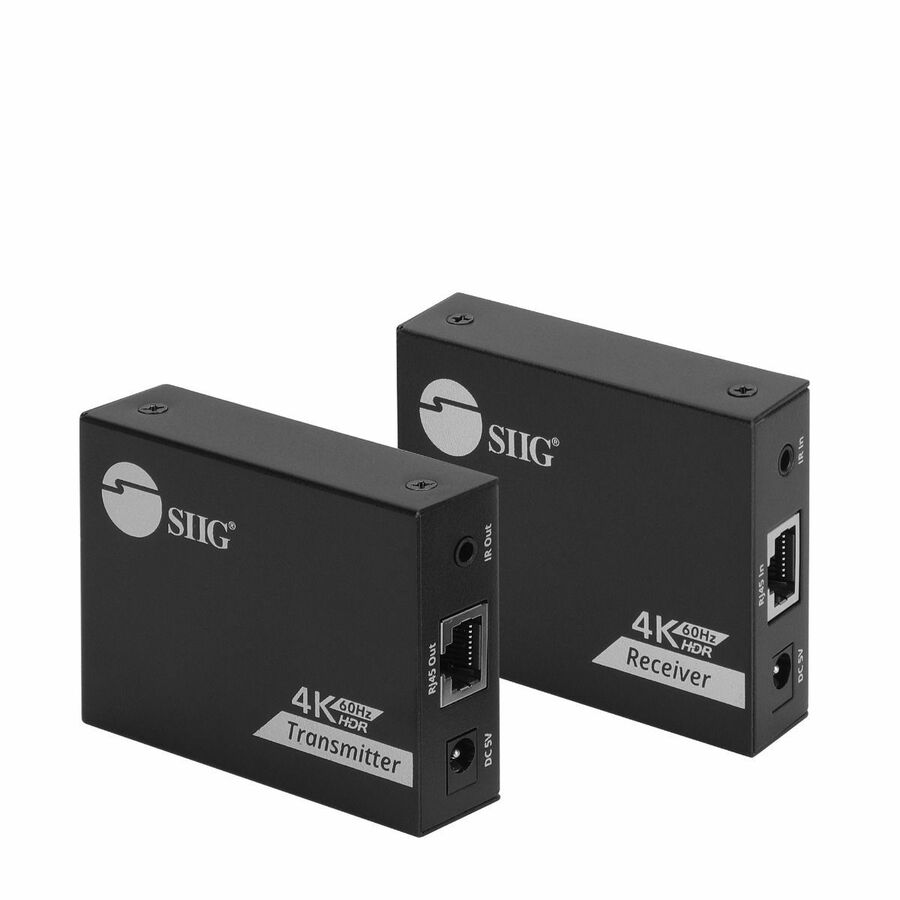

SIIG 4K60Hz HDMI over Cat6 Extender with Loopout & IR - 50m- HDMI Extender- Auto Downscaling - 4K HDMI Extender, Easily extends HDMI 4K60Hz signals up to 164ft (50m) over a single Cat6/7 networking cable with a local HDMI output for monitoring the extended display - 18Gbps bandwidth - HDCP 2.2 / HDR 10 / 5.1CH audio - Nearly zero latency - Auto Downscaling - IR Control - Metal Housing - ESD Protection - 2 years warranty
