Features
- Receives HDMI signals with stereo audio over UTP CAT5e/6 cabling up to 120 meters away, requires HDMI Over IP Extender with IR - Encoder (TX)(part # CE-H23B11-S2) sold separately
-
Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional encoder (TX)units (part# CE-H23B11-S2) and decoder (RX)units (part# CE-H23C11-S2) sold separately
-
Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear imagesSupports IR pass back function to control the source device from RX location
-
Supports computer control software to select and switch between source devices (Matrix only)
-
Supports HDbit-T protocol with H.264 compression over IP
- HDMI output on the transmitter allows you to monitor the HDMI signal at the source location
- RS-232 pass-through connection to control RS-232 enabled devices at either direction

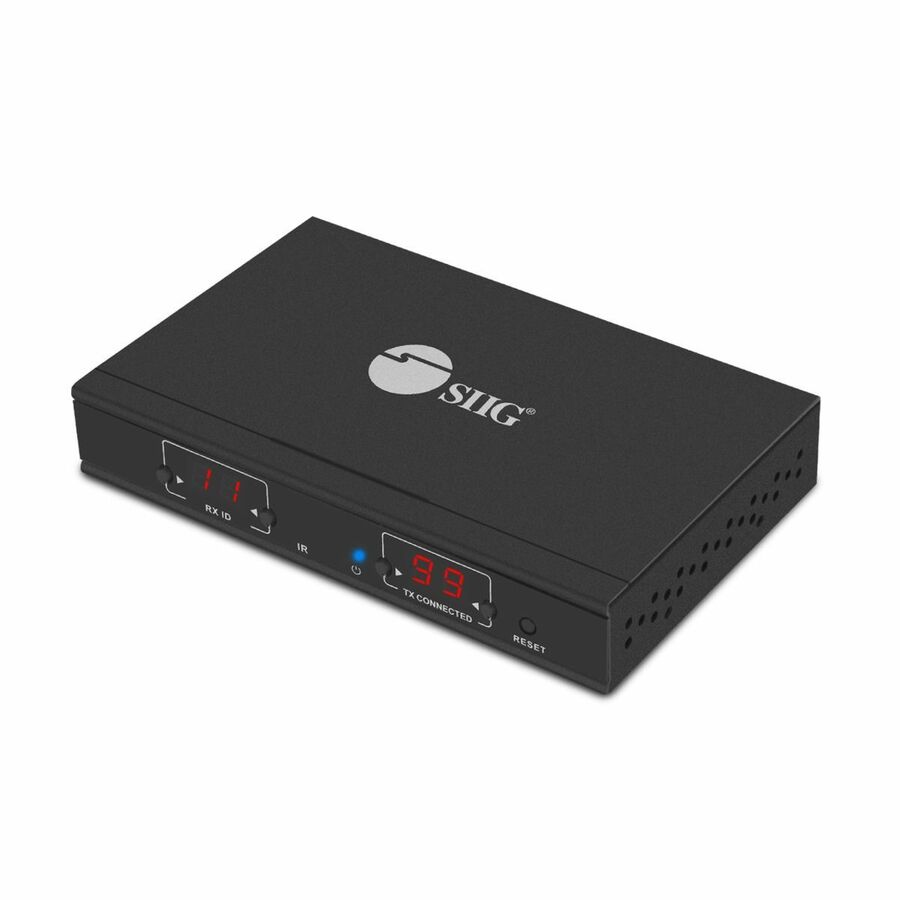

- Video Extender Receiver provides efficient and feasible audio/video transmission, decoding, and extending
- 480p supported video mode for pleasurable viewing and dependable usage
- 1920 x 1080 maximum video resolution for a vivid, crystal clear display with added productivity
- HDMI out enables you to transfer data from your devices to video extender receiver with added efficiency
- Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
- The CE-H23C11-S2 video extender receiver provides plenty of freedom with wired connectivity
- 1 output devices supported for maximum feasibility and usage convenience
- 393.70 ft maximum operating distance for reliable coverage and maximum portability
- Full HD graphics mode for an immersive and sharp viewing experience
- Video Extender Receiver efficiently decodes audio video signals from the input device and sends them to the receiver to enable the display on your office projector for convenient conferenc
| Brand | |
|---|---|
| Brand | SIIG |
| GPU / Graphics | |
|---|---|
| Graphics Modes | Full HD |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| Number of HDMI Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1080 |
| Size / Dimensions | |
|---|---|
| Receiver Width | 5.50" |
| Receiver Weight (Approximate) | 9.60 oz |
| Receiver Height | 0.94" |
| Receiver Depth | 3.27" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 393.70 ft |
| Supported Video Modes | 1080p |
| Manufacturer | SIIG, Inc |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
