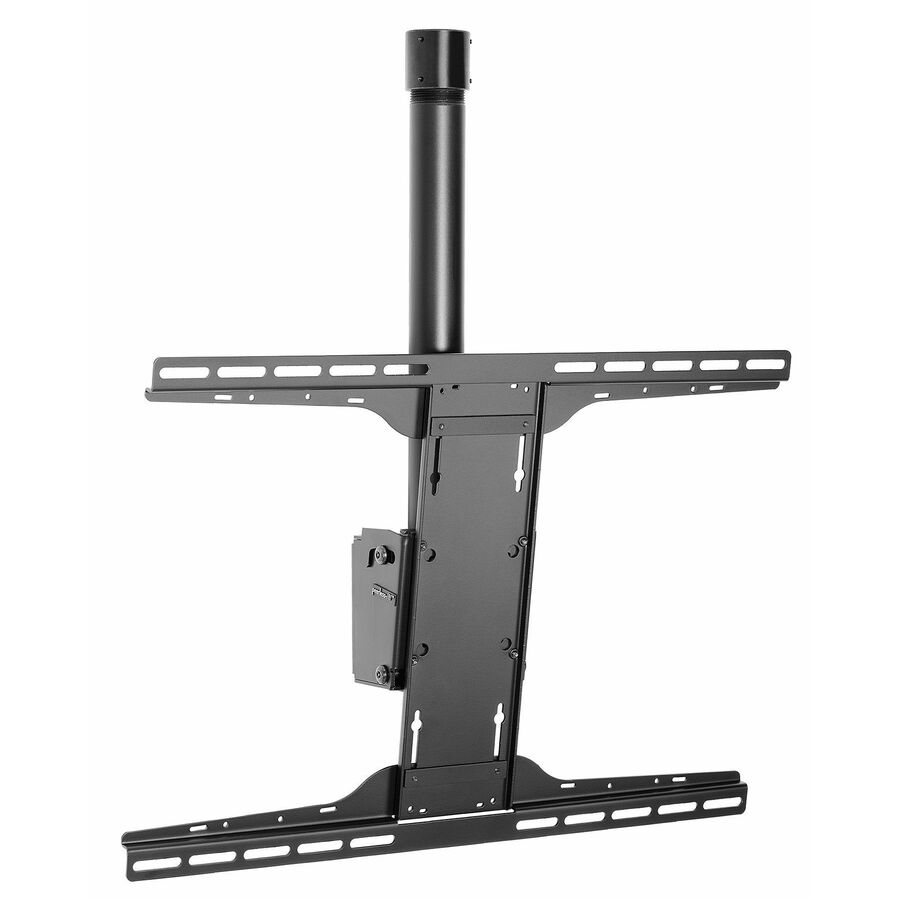

Peerless-AV's PLCK flat panel ceiling mount products and components utilize a 1.5" NPT pipe for versatility, support and connection. The 1.5" NPT threaded pipe makes it simple to customize each mount to your specific application. The PLCK-1 kit combines the PLCM-2 tilt box, fixed length 1.5" NPT column and 1.5' NPS coupler to easily retrofit existing installations. When combined with Peerless-AV's PLP-UNL universal or dedicated display adaptor, it provides the perfect combination for retrofitting flat panel ceiling mounts in sports facilities, airports, lobbies or retail environments.
- Integrated cable management protects, contains and conceals cables for a clean, professional installation
- Includes a 1.5" NPS threaded coupling enabling retrofit to existing 1.5" NPT or NPS connections
- Standard 1.5" NPT pipe included providing a 19.49" drop
- 0° to 20° adjustable tilt and 360° swivel
- Simple hook-on display installation
- Universal models fit displays with mounting holes up to 730 x 405mm (28.75"W x 15.95"H)
- PLCK-1 requires universal or dedicated display adaptor plate to be purchased separately
- Mount display in Landscape or Portrait orientation with dedicated adaptor plates
| Brand | |
|---|---|
| Brand | Peerless Industries |
| Screen / Display | |
|---|---|
| Maximum Screen Size Supported | 90" |
| Minimum Screen Size Supported | 10" |
| Power & Battery | |
|---|---|
| Maximum Load Capacity | 150 lb |
| Size / Dimensions | |
|---|---|
| Form Factor | Ceiling Mountable |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 730 x 405 |
| Mount Surface | Ceiling |
| Orientation | Landscape/Portrait |
| Minimum Tilt Angle | -5° |
| Maximum Tilt Angle | 20° |
| Maximum Swivel Angle | 360° |
| Appearance | |
|---|---|
| Mount Function | Cable Management |
| Finishing | Powder Coated |
| General Features | |
|---|---|
| Mount Pattern | Universal |
| Minimum Mounting Pattern | 75 x 75 |
| Indoor/Outdoor | Indoor |
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Product Class | Ceiling Mount |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| UL Listed | Yes |
| Miscellaneous | |
|---|---|
| Assembly Required | Yes |
