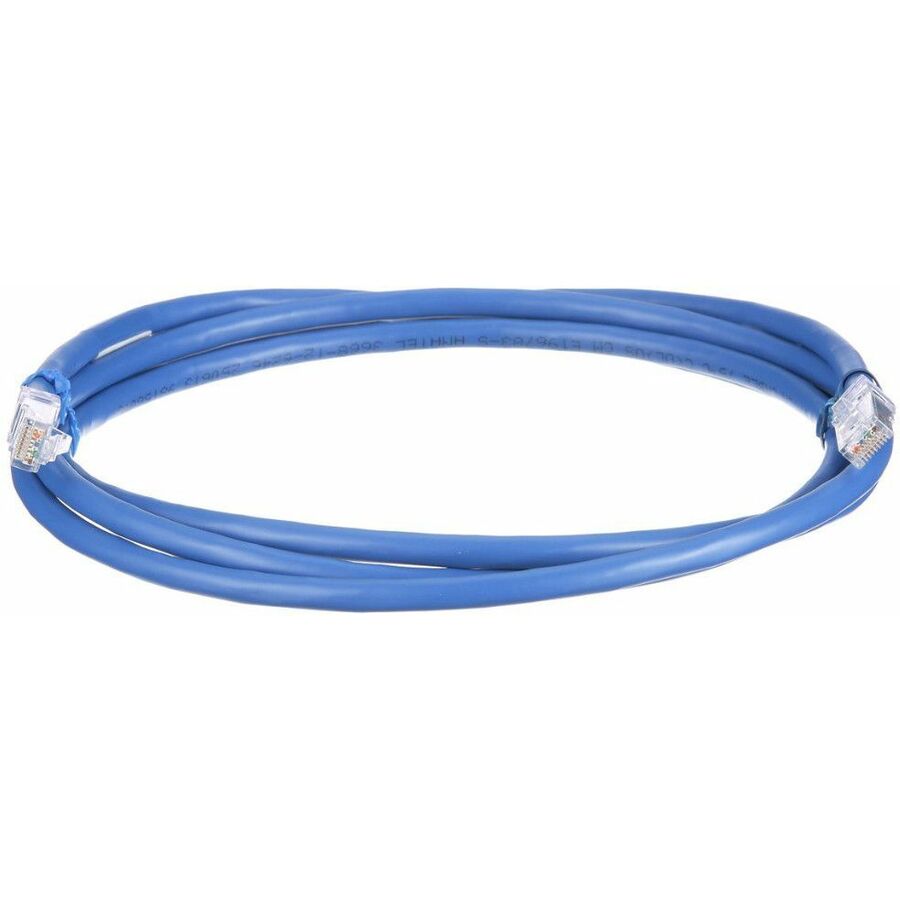

The TX6A 10Gig Cat 6A UTP Patch Cord is a 3-Meter, 0.250-inch (6.4mm) diameter, Blue cord constructed of 24 AWG, unshielded, twisted pair, solid, CM cable with high-performance modular plugs. Its solid foil tape limits alien crosstalk, ensuring 10 Gb/s transmission. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
- 100% Performance tested:
- Confidence that each patch cord delivers specified performance
- Superior headroom Warranty:
- Provides the highest margins above the industry standard for both electrical and alien crosstalk performance
- Flexible cable design:
- Improved cable management in high density applications enabling easier installations
- Center de-embedded plug:
- Performs in center of ANSI/TIA-568.2-D component range ensuring interoperability and superior performance
- Integral pair manager:
- Optimizes performance, consistency, and reliability by reducing untwist at plug
- Patented tangle-free latch:
- Prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds, and changes
| Brand | |
|---|---|
| Brand | PANDUIT CORP |
| Appearance | |
|---|---|
| Boot Color | Clear |
| General Features | |
|---|---|
| Data Transfer Rate | 10 Gbit/s |
| Manufacturer | PANDUIT CORP |
| Cables | |
|---|---|
| Cable Shielding Type | Unshielded Twisted Pair (UTP) |
| Cable Length | 9.84 ft |
| Cable Type | Category 6a |
| Cable Characteristic | Patch Cable |
| Connector Type on First End | Modular Network |
| Connector on First End Details | 1 x Modular Network - Male |
| Connector Gender on First End | Male |
| Connector Type on Second End | Modular Network |
| Connector Gender on Second End | Male |
| Contact Plating | Gold |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Type | CM |
| Shielding | No |
| American Wire Gauge | 24 AWG |
| Number of Pairs | 4 |
| Number of Conductors | 8 |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
