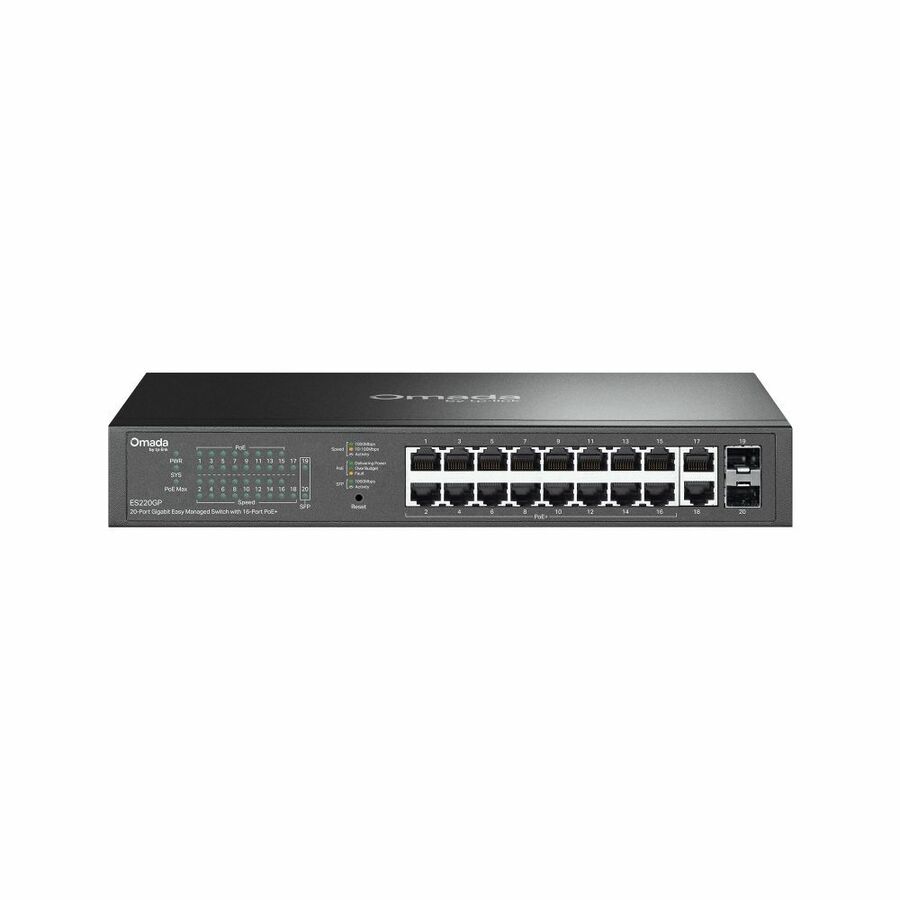

Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+

$ 169.99 $ 169.99
$ 169.99

$ 169.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • Manageable
  • Switch Management Type
  • Features
  • Network (RJ-45)
  • Total Number of Network Ports
  • PoE (RJ-45) Port
  • Total Number of Expansion Slots
  • Expansion Slot Type
  • Number of SFP Slots
  • Port/Expansion Slot Details
  • Form Factor
  • Product Material
  • Maximum Data Transfer Rate
  • Ethernet Technology
  • Networking Standards
  • Layer Supported
  • PoE Budget
  • Media Type Supported
  • Input Voltage
  • Frequency
  • Environmental Compliance
  • Certifications & Standards
  • Packaged Quantity
  • Package Contents
  • Manufacturer
  • Product Type
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

Omada 20-Port Gigabit Easy Managed Switch Switch with 16-Port PoE+

ES220GP

Omada Central Essentials - A Free and Easy Cloud-Based Network Management

Omada Central Essentials is a free, easy-to-use version of the Omada Central.

It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

  • Lifetime Free Cloud Without Additional Fees
  • Manage and Monitor Anytime via App or Web
  • Unlimited Management Scale for Multiple Sites
  • Comprehensive Managed Portfolio
  • Super-Easy Setup with Automatic Device Identification and ZTP
  • Easy-to-Use Networking for Surveillance Including Remote Camera Reboot
  • Free Video Monitoring Including Third-Party Camera Management
  • Topology, Site Map, and Troubleshooting Tools for Efficient Maintenance

Abundant Functions for Reliable Surveillance Networking

  • Transmission Distance up to 820ft (250 m)
  • Priority Video Quality Guaranteed
  • Secure Traffic Separation via Port Isolation
  • Remote Camera Reboot

Multiple Application Scenarios | Surveillance

Works with IP Cameras

Wi-Fi Coverage

Works with Access Points

Wired Connections

Works with Non-PoE Devices such as PCs and Printers

  • 18� 10/100/1000Mbps RJ45 ports (16� 802.3af/at-compliant PoE+)
  • 2� Gigabit SFP Slots
  • 150W PoE Budget, with up to 30W for each PoE port
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app
  • Up to 820ft PoE, Remote Camera Reboot, QoS, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and rack mounting design
Brand
Brand TP-LINK Technologies Co.
Power & Battery
PoE Budget 150 W
Input Voltage 230 V AC
Power Source AC
Networking & Connectivity
Network Technology 1000Base-X
Switch Management Type Smart Managed
Layer Supported 2
Ethernet Port
Network (RJ-45) Yes
Total Number of Network Ports 18
PoE (RJ-45) Port Yes
Size / Dimensions
Form Factor Desktop
General Features
Manageable Yes
Maximum Data Transfer Rate 128 MB/s
Frequency 60 Hz
Manufacturer TP-LINK Technologies Co., Ltd
Expansion Slots
Total Number of Expansion Slots 2
Expansion Slot Type SFP
Number of SFP Slots 2
Misc Ports
Port/Expansion Slot Details 2 x Gigabit Ethernet Expansion Slot
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
