What This Product Does

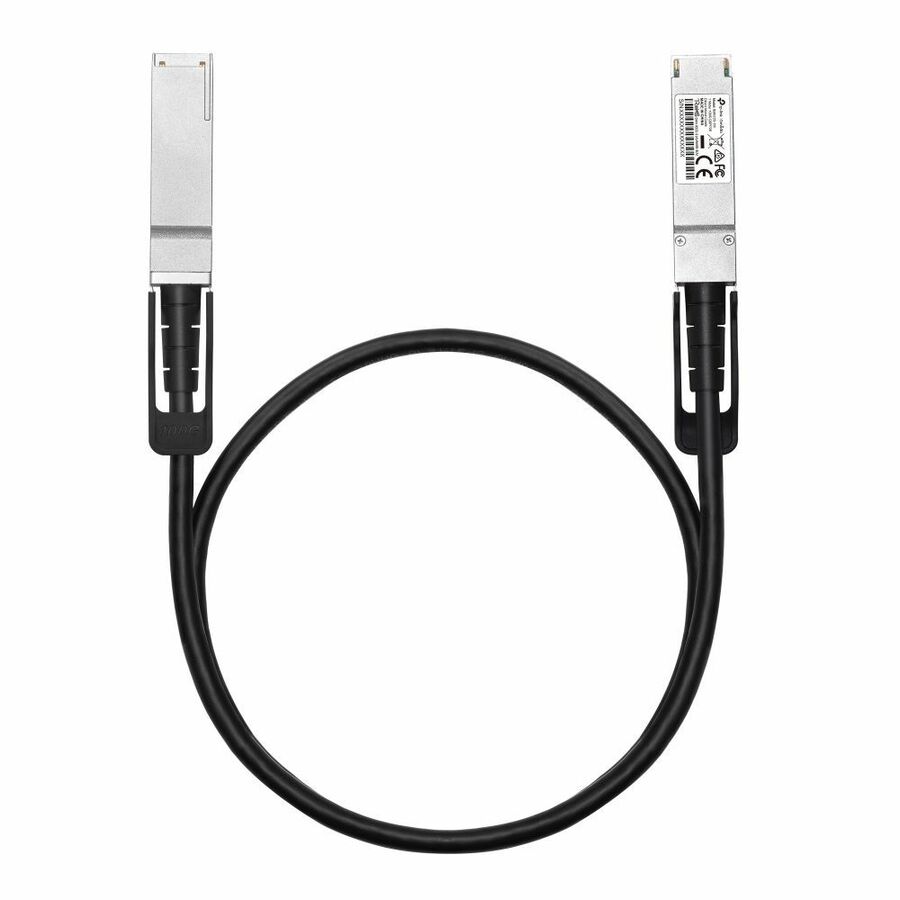

SM9220-1M is a passive Direct Attach Cable. With a passive Twinax cable assembly of 1 meter and two QSFP28 connectors on each side, SM9220-1M is suitable for short distance transmission of extreme-high speed data (100 Gbps) and offers a cost-effective way to connect within racks and across adjacent racks.
- 100 Gbps data transmission
- QSFP28 connector on both sides
- Up to 1 m transmission distance
- Wide operating temperature
- Hot Swappable
| Brand | |
|---|---|
| Brand | TP-LINK Technologies Co. |
| General Features | |
|---|---|
| Data Transfer Rate | 100 Gbit/s |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Cables | |
|---|---|
| Cable Length | 3.28 ft |
| Cable Type | Twinaxial |
| Connector Type on First End | QSFP28 Network |
| Connector on First End Details | 1 x QSFP28 Network |
| Connector Type on Second End | QSFP28 Network |
| American Wire Gauge | 30 AWG |
