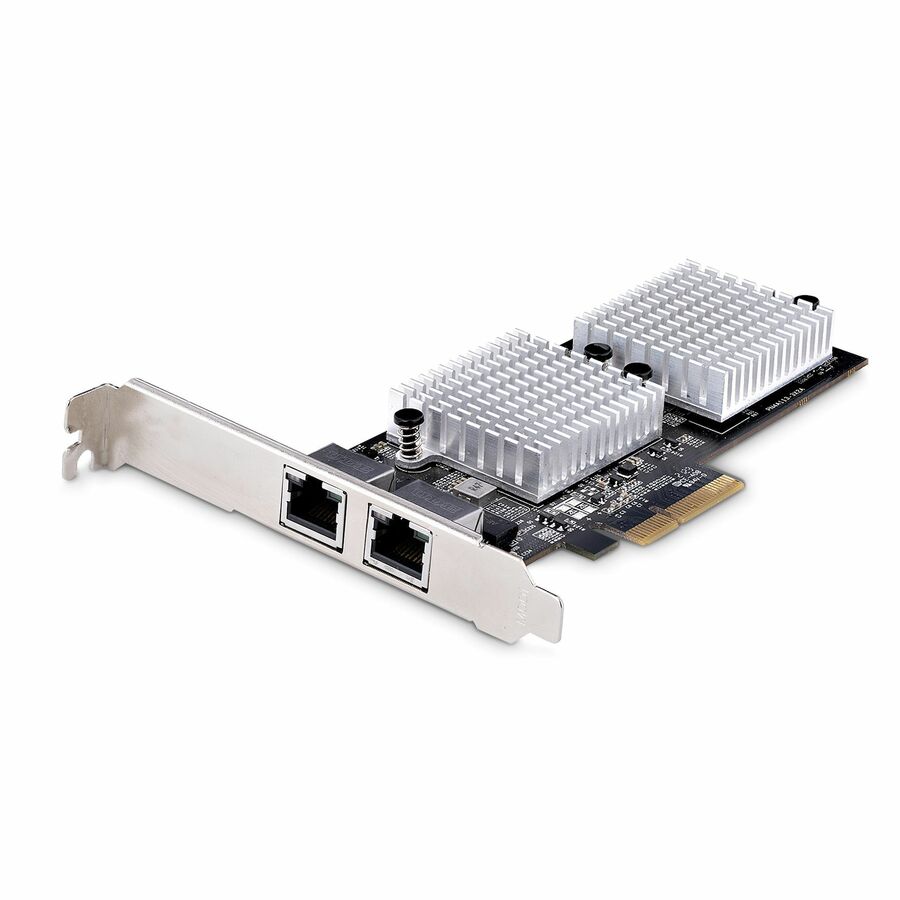

Install this 2-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) with independent controllers into a server or computer to enable fast network speeds and enhanced network functionality by providing failover and redundancy protection to mission-critical servers/applications.
This Card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps with auto-negotiation for instant compatibility with new and legacy hardware. In addition, 10GBASE-T and NBASE-T (2.5GBASE-T/5GBASE-T) capabilities ensure compatibility with the latest network switches and access points manufactured by Cisco®; HPE®; and Aruba Networks®.
10GbE Network Speeds
This PCIe Network Card enables access to two high-bandwidth ethernet connections. As a result, it reduces network degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and streaming online content. The Ethernet Network Card supports 10GBASE-T using existing Cat6 (or better) cable infrastructure.
Enhance Existing Hardware
NBASE-T technology maximizes the capability of Cat5e copper infrastructure over distances of up to 100 meters. The Network Interface Card connects to a PCIe x4 3.0/4.0 (or higher) slot and comes with a full-height bracket preinstalled, and a low-profile bracket is included. This Card is compatible with Windows, Windows Server, and Linux operating systems. Take advantage of advanced features such as load balancing in server or network equipment, bridging two different networks on one system, Audio Video Bridging (AVB), VLAN tagging (802.1Q), 16K-byte Jumbo Frames, full-duplex (FDX), UEFI Secure Boot (SB), and Preboot eXecution Environment (PXE).
More from the Manufacturer
- 10Gigabit Ethernet Card guarantees a faster and efficient networking interface to client, server or workstation with maximum connectivity reliability
- PCI Express 3.0 x4 interface provides enhanced bandwidth for the quick access of data by the operating system and applications
- For high bandwidth connectivity, add this efficient dual port 10gigabit ethernet card to your server or workstation
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 10GBase-T technology get up to 10Gbps data transfer rate over the twisted pair cable
| Brand | |
|---|---|
| Brand | StarTech.com |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-T |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Thickness | 800 mil |
| Bracket Height | Low Profile |
| General Features | |
|---|---|
| Chipset Manufacturer | Marvell |
| Chipset Model | AQC113CS |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Manufacturer | StarTech.com |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| Host Interface | PCI Express 3.0 x4 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
