Cost-Effective, Line-Rate 10Gig Ethernet Testing
- Quickly test, verify, and troubleshoot 1Gig, Multi-Gig and 10Gig Ethernet (copper, fiber) including line-rate performance testing and packet capture
- Layer 1 - 7 AutoTest enables any technician to find network problems
- Monitor networks for intermittent issues, every minute for up to 24 hours
Overview

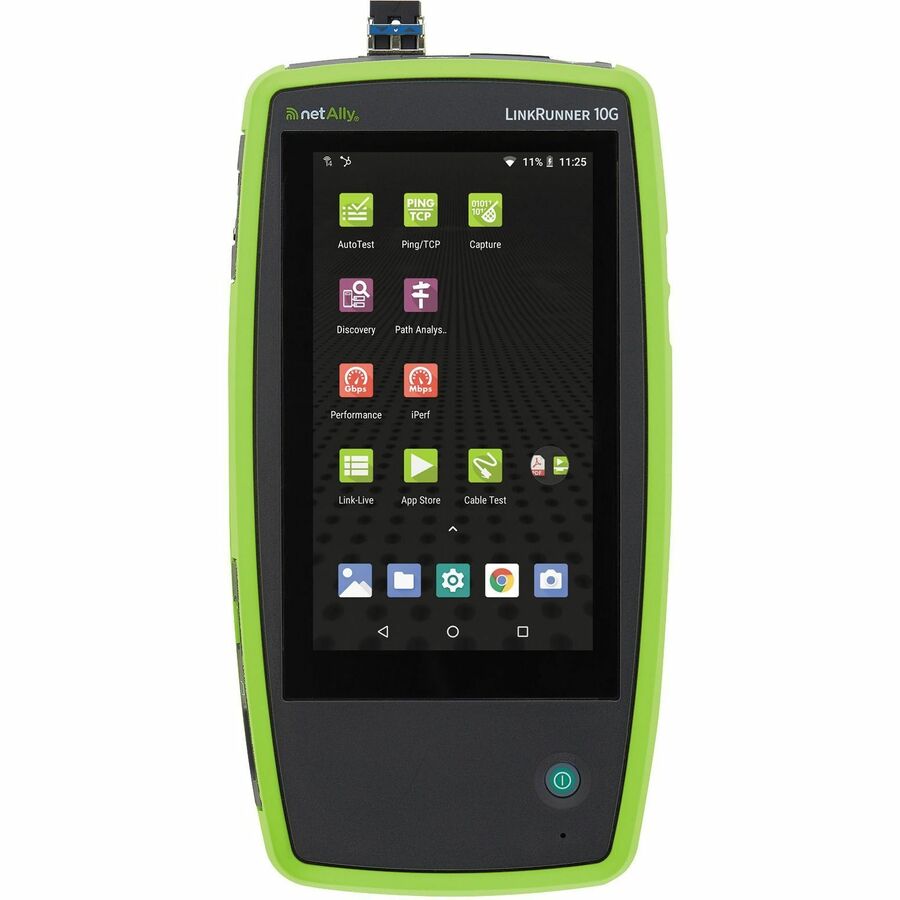

Introducing the new LinkRunner 10G, the most cost-effective solution for 10 Gig network testing. LinkRunner 10G simplifies testing and configuration of copper and fiber Ethernet networks, streamlining workflows by combining essential functions of installation and triage in a single, ruggedized unit.
This next-generation Android-based tester delivers complete network validation and troubleshooting, from the media (copper/fiber) to the application (layers 1 - 7), accelerating deployments, speeding problem identification, and improving the efficiency and effectiveness of network installers and operations teams.
Key Features
- Install, test, verify, and troubleshoot technology upgrades, Multi-Gig (NBASE-T) and 10G networks with advanced AndroidTM-based troubleshooting apps and purpose-built test hardware
- Physical layer testing includes cable (TDR) testing, toning, wiremapping, and cable SNR (Signal-to-Noise Ratio) for multi-gig links
- Compatibility with standards compliant SFPs enables test and validation of any wired media (copper or fiber) for a variety of use models
- Validate up to 90W 802.3bt PSE with TruePower™ loaded Power over Ethernet (PoE) test
- Serves as a peer to the EtherScope nXG for line-rate performance testing to verify network capacity, performance and QoS, as well as service provider SLAs between sites
- Programmable periodic AutoTest monitors for intermittent issues with email notifications through the Link-Live cloud service
- Separate management port enables secure "out of band" remote control so centralized experts can efficiently assist technicians in the field
- Optional USB Wi-Fi/Bluetooth adapter for connectivity and remote control.
- Seamlessly consolidate and manage field test data, automate reporting, and integrate with network management systems via complimentary Link-Live Cloud Service
| Brand | |
|---|---|
| Brand | NetAlly |
| Screen / Display | |
|---|---|
| Display Screen Type | LCD |
| Power & Battery | |
|---|---|
| Battery Rechargeable | Yes |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Size Supported | 7.2V |
| USB Ports | |
|---|---|
| USB | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| General Features | |
|---|---|
| Device Function | PoE Testing |
| Manufacturer | NetAlly |
| Expansion Slots | |
|---|---|
| Expansion Slot Type | SFP |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
NetAlly LinkRunner LR10G-200 Network Testing Device - Network Testing, Twisted Pair Cable Testing, Open Circuit Testing, Short Circuit Testing, Split Pair Testing, Crossed Pair Testing, Wiremap, PoE Testing - LCD - USB - Network (RJ-45) - SFP - Twisted Pair, Optical Fiber - 10 Gigabit Ethernet - 10GBase-T, 10GBase-X - 7.2V - Battery Rechargeable - Lithium Ion (Li-Ion)
