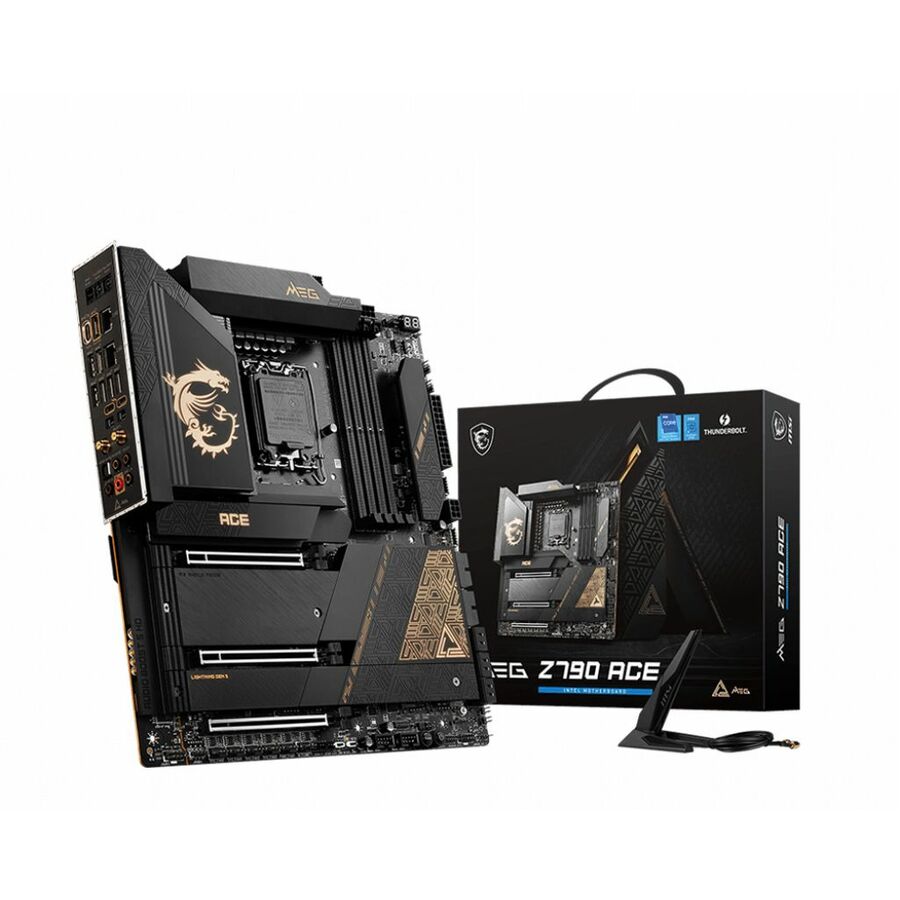

Furnished premium aesthetics with its dark black finish and gold embellishes. Developed to unlock the full gaming potential of the latest 13th Gen Intel® Core processor by combining elite hardware system support and premium durability, the MEG Z790 ACE is an outstanding E-ATX platform for extreme settings in terms of overclocking the processor, memory, and graphics card at the highest level.
- Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7600+MHz (OC)
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
- Dual 2.5G LAN with latest Wi-Fi 6E solution: Onboard dual 2.5G LAN with the latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
| Brand | |
|---|---|
| Brand | MSI |
| CPU / Processor | |
|---|---|
| Processor Supported | Core |
| Total Processor Supported | 1 |
| Processor Generation Supported | 12th Gen |
| Processor Socket | Socket LGA-1700 |
| GPU / Graphics | |
|---|---|
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4800 MHz |
| Memory Form Factor | DIMM |
| Number of Memory Slots | 4 |
| Maximum Memory Supported | 128 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 5 |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 2 Type- | 7 |
| Total Number of Onboard USB P | 10 |
| Number of Onboard USB 2.0 Por | 4 |
| Total Number of USB Ports | 8 |
| Thunderbolt Ports | |
|---|---|
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Audio Ports | |
|---|---|
| S/PDIF | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Extended ATX |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | Z790 |
| Controller Type | Serial ATA/600 |
| Manufacturer | MSI |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 1 |
| Total Number of PCI Express S | 3 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x8 Slots | 1 |
| Total Number of Expansion Slots | 3 |
| PCI Express Standard | PCI Express 4.0 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 5 |
| Number of SATA Interfaces | 6 |
