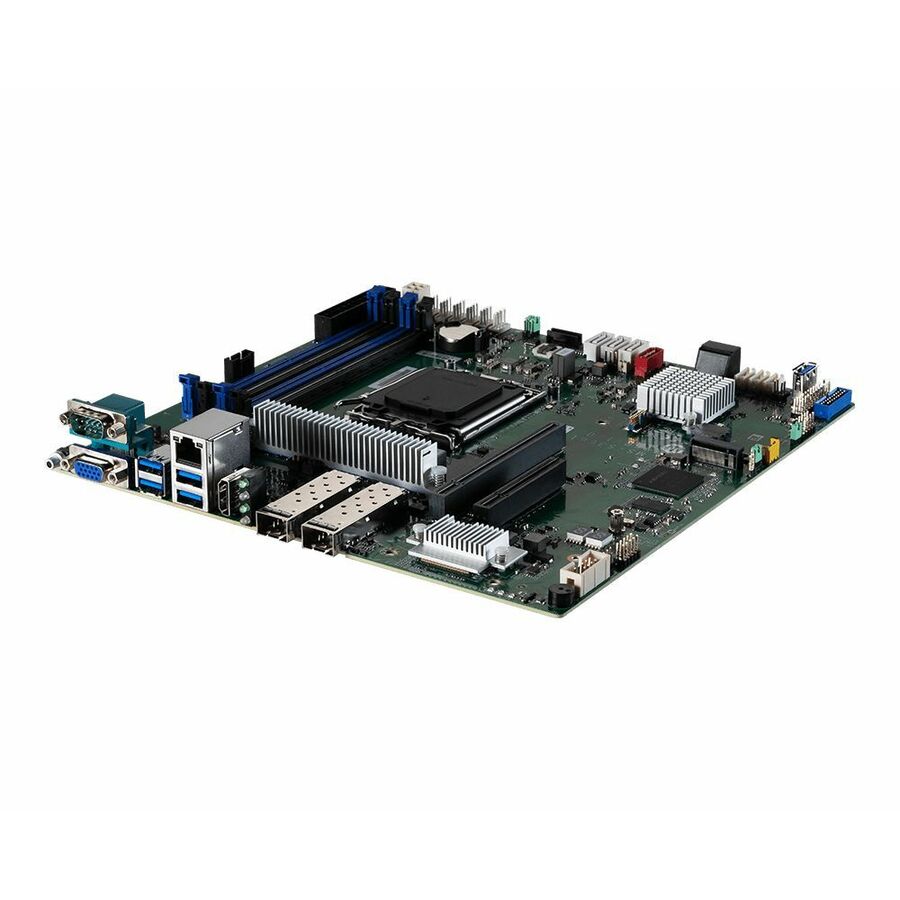

MSI D3052(D3052GB2N-25G), Single AMD Ryzen™ 7000 Series and EPYC™ 4004 Series Processor, up to TDP 170W

$ 726.15 $ 726.15
$ 726.15

$ 726.15 / Units
  • Brand
  • Processor Supported
  • Depth
  • Number of USB 3.2 Gen 1 Type-
  • Number of PCI Express x16 Slo
  • Total Number of Onboard USB P
  • Product Name
  • Number of Network (RJ-45) Por
  • Total Number of PCI Express S
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Total Processor Supported
  • Graphics Controller Model
  • Chipset Manufacturer
  • Chipset Model
  • Onboard Video
  • Number of M.2 Interfaces
  • Total Number of USB Ports
  • HDMI
  • HDMI Version
  • Gigabit Ethernet
  • VGA
  • Number of PCI Express x8 Slots
  • Total Number of Expansion Slots
  • Form Factor
  • Processor Socket
  • Memory Technology
  • Memory Speed Supported
  • Memory Form Factor
  • Number of Memory Slots
  • Error Checking
  • Maximum Memory Supported
  • Packaged Quantity
  • Package Contents
  • Manufacturer
  • Product Type
  • Product Model
  • Manufacturer Website Address
  • PCI Express Standard
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
  • uATX, 9.6" x 9.6"
  • Single socket AM5, AMD Ryzen™ 7000 Series and EPYC™ 4004 Series Processor
  • (4) DDR5 DIMM slots,2DPC, up to 5200MT/s, ECC/non-ECC UDIMM
  • (2) 25G SFP28 Ports (Intel® E810-XXVAM2)
  • (4) SATA3.0 ports (Supporting one SATADOM) , (2) SATA2.0 ports
  • (1) 2280/22110 PCIe4.0 x4 NVMe M.2 Ports
  • (1) 1000Base-T Dedicated Server Management Port
  • ASPEED AST2600 with IPMI & DMTF Redfish Support
  • Supports ATX PSU
Brand
Brand MSI
CPU / Processor
Processor Supported EPYC
Total Processor Supported 1
Processor Socket Socket AM5
GPU / Graphics
Graphics Controller Model AST2600
Onboard Video CPU Dependent Video
Memory / RAM
Memory Technology DDR5 SDRAM
Memory Speed Supported 3600 MHz
Memory Form Factor UDIMM
Number of Memory Slots 4
Error Checking ECC
Maximum Memory Supported 48 GB
USB Ports
Number of USB 3.2 Gen 1 Type- 4
Total Number of Onboard USB P 3
Total Number of USB Ports 4
HDMI Ports
HDMI Yes
Ethernet Port
Number of Network (RJ-45) Por 3
Gigabit Ethernet Yes
Size / Dimensions
Form Factor Micro ATX
General Features
Chipset Manufacturer AMD
Chipset Model B650
Manufacturer MSI
Expansion Slots
Number of PCI Express x16 Slo 1
Total Number of PCI Express S 2
Number of PCI Express x8 Slots 1
Total Number of Expansion Slots 2
PCI Express Standard PCI Express 5.0
Video Ports
VGA Yes
Misc Ports
Number of M.2 Interfaces 1
