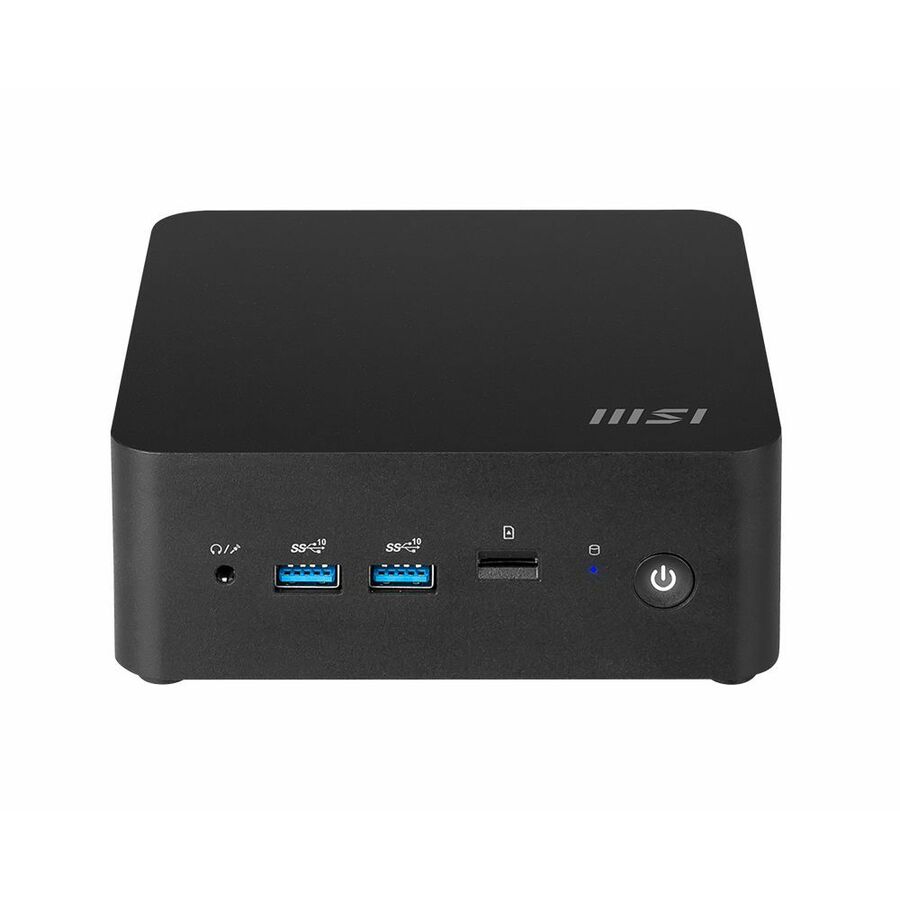

The MSI Cubi NUC AI is the ideal client device for purpose built applications such as digital signage, back up or front end user interface without taking up any space. It can be hidden or mount behind the display less than 6 inches from backwall. the Cubi can display up to 4 independent displays.
- Intel Core 7-150U Processor
- Dual Ethernet LAN ports
- dTPM2.0
- SD Card reader
- Up to 4 Display Output
- 3 Year Advanced Replacement Warranty
- TAA Compliant
| Brand | |
|---|---|
| Brand | MSI |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | Intel |
| Processor Type | Core i7 |
| Processor Model | 150U |
| Processor Threads | 12 |
| Processor Core | Deca-core (10 Core) |
| Processor Speed | 4 GHz |
| Maximum Turbo Speed | 5.40 GHz |
| GPU / Graphics | |
|---|---|
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Memory / RAM | |
|---|---|
| Number of Occupied Memory Slo | 2 |
| Standard Memory | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 2 |
| Maximum Memory Supported | 64 GB |
| Storage | |
|---|---|
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe |
| SSD Form Factor | M.2 |
| Power & Battery | |
|---|---|
| Maximum Power Supply Wattage | 120 W |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Wi-Fi Generation | Wi-Fi 6E |
| Bluetooth | Yes |
| LAN Model | I226V |
| LAN Manufacturer | Intel |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Thunderbolt Ports | |
|---|---|
| Number of Thunderbolt 4 Ports | 2 |
| Ethernet Port | |
|---|---|
| Number Of Ethernet Ports | 2 |
| Software & Licensing | |
|---|---|
| Operating System Platform | Windows |
| Size / Dimensions | |
|---|---|
| Form Factor | Mini PC |
| VESA Mount Standard | 100 x 100 |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Cooler Type | Air Cooler |
| Manufacturer | MSI |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
