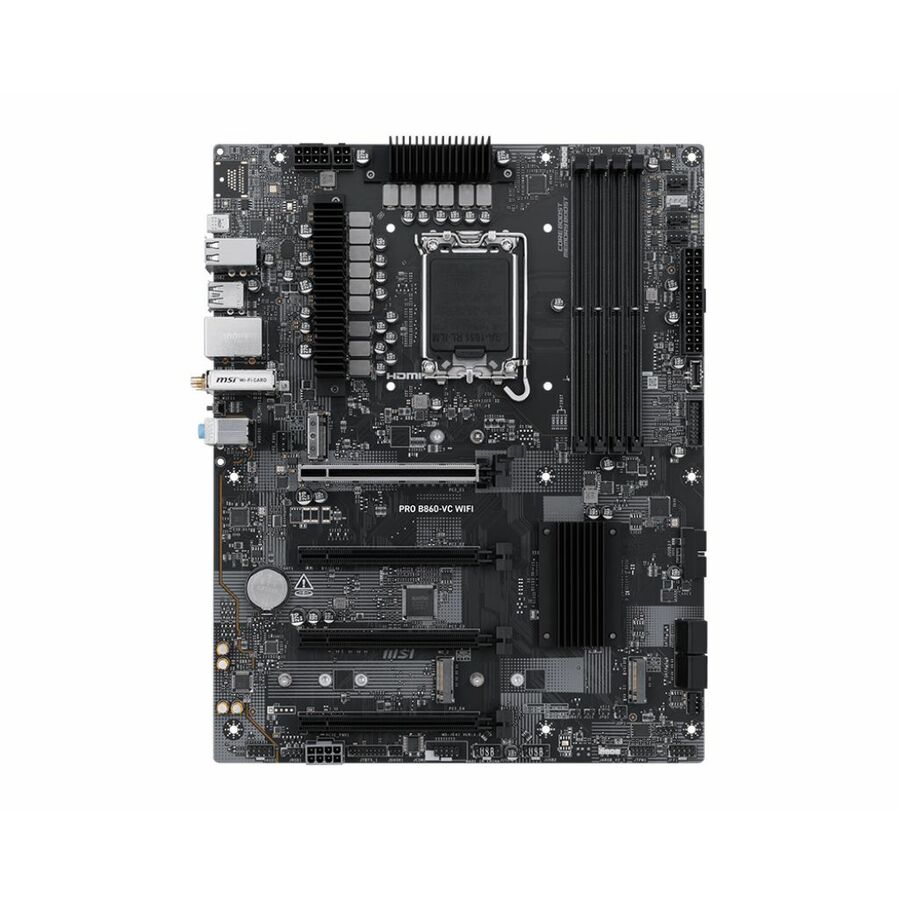

MSI B860-VC WIFI Gaming Desktop Motherboard - Intel B860 Chipset - Socket LGA-1851 - ATX

$ 159.99 $ 159.99
$ 159.99

$ 159.99 / Units
  • Brand
  • Processor Supported
  • Depth
  • Number of PCI Express x16 Slo
  • Total Number of Onboard USB P
  • Product Name
  • Number of Network (RJ-45) Por
  • Number of Onboard USB 2.0 Por
  • Total Number of PCI Express S
  • Brand Name
  • Width
  • Total Processor Supported
  • Chipset Manufacturer
  • Chipset Model
  • Wireless LAN
  • Wireless LAN Standard
  • Bluetooth
  • Bluetooth Standard
  • AI-powered
  • RAID Supported
  • Onboard Video
  • Number of M.2 Interfaces
  • Total Number of USB Ports
  • Number of USB 2.0 Ports
  • Thunderbolt
  • Number of Thunderbolt 4 Ports
  • DisplayPort
  • Gigabit Ethernet
  • Number of SATA Interfaces
  • Number of PCI Express x1 Slots
  • Total Number of Expansion Slots
  • Form Factor
  • Processor Socket
  • Memory Technology
  • Memory Speed Supported
  • Memory Form Factor
  • Number of Memory Slots
  • Maximum Memory Supported
  • RAID Levels
  • Controller Type
  • Audio Channels
  • Manufacturer
  • Product Type
  • Product Series
  • Product Model
  • Brand Compatibility
  • Manufacturer Website Address
  • PCI Express Standard
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
  • Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
  • Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
  • Frozr Guard: MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for high performance system and non-stop experience
  • EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
  • Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
  • 5G LAN with Wi-Fi 7 Solution: the powerful solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Thunderbolt™ 4: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience
  • Audio Boost: Reward your ears with stu
Brand
Brand MSI
CPU / Processor
Processor Supported Core Ultra
Total Processor Supported 1
Processor Socket Socket LGA-1851
GPU / Graphics
Onboard Video CPU Dependent Video
Memory / RAM
Memory Technology DDR5 SDRAM
Memory Speed Supported 8800 MHz
Memory Form Factor UDIMM
Number of Memory Slots 4
Maximum Memory Supported 256 GB
Storage
RAID Supported Yes
RAID Levels 10
Networking & Connectivity
Wireless LAN Yes
Bluetooth Yes
Bluetooth Standard Bluetooth 5.4
USB Ports
Total Number of Onboard USB P 9
Number of Onboard USB 2.0 Por 4
Total Number of USB Ports 8
Number of USB 2.0 Ports 4
Thunderbolt Ports
Thunderbolt Yes
Number of Thunderbolt 4 Ports 1
DisplayPort
DisplayPort Yes
Ethernet Port
Number of Network (RJ-45) Por 1
Gigabit Ethernet Yes
Audio
Audio Channels 7.1
Size / Dimensions
Form Factor ATX
General Features
Chipset Manufacturer Intel
Chipset Model B860
AI-powered Yes
Controller Type Serial ATA/600
Manufacturer MSI
Brand Compatibility Intel
Expansion Slots
Number of PCI Express x16 Slo 2
Total Number of PCI Express S 4
Number of PCI Express x1 Slots 2
Total Number of Expansion Slots 4
PCI Express Standard PCI Express 5.0
Misc Ports
Number of M.2 Interfaces 3
Number of SATA Interfaces 4
