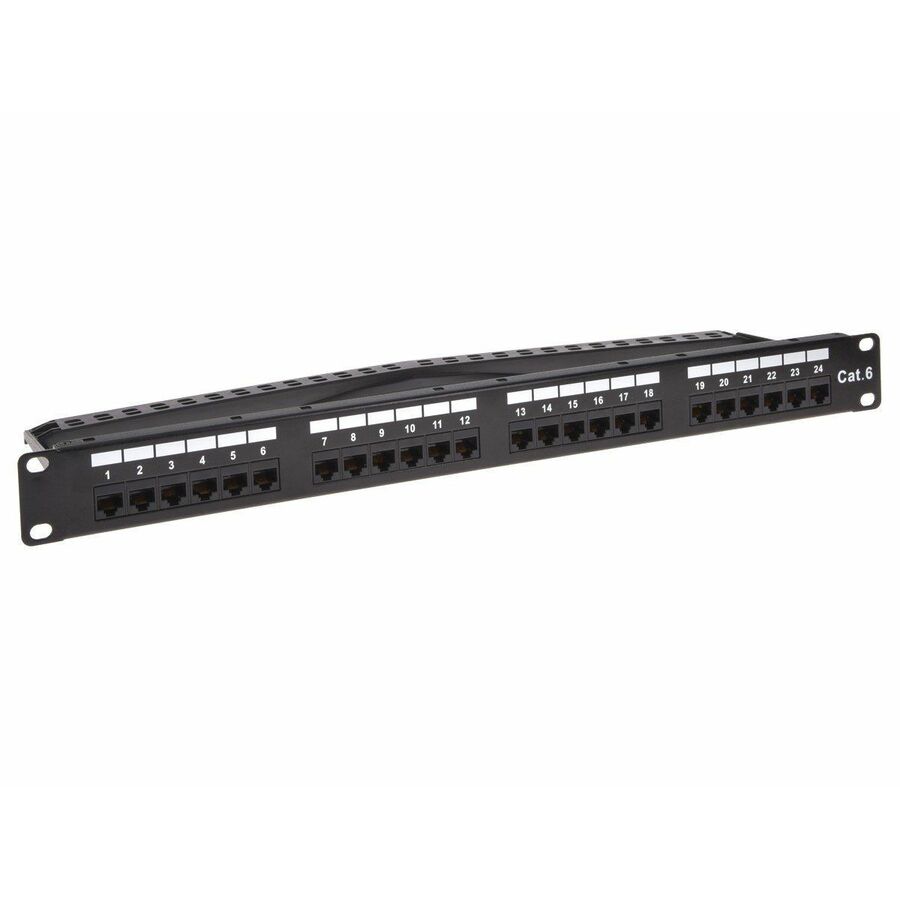

This Monoprice™ network patch panel is designed for Category 6 unshielded cable connections. Equipped with 24 ports with Dual IDC headers, it is compatible with the T568A and T568B wiring standards. You can terminate it using a 110-type punchdown tool. This panel is compatible with 22-24 AWG solid network cables.
This 19" wide is compatible with all standard rackmount frames. The package includes rack mount screws, plastic washers, cable clamps, and cable ties to make your installation faster and easier.
Features:
- 19" wide high-density panel, packs 24 RJ45 ports into 1U high panel
- Compatible with the IEEE 802.3bt Power over Ethernet Plus Plus(4PPoE) standard
- Suitable for use with 22-24 AWG solid wire
- 110-type punchdown termination with a built-in strain relief bar
- Gold plated RJ45 contacts
- Ports clearly labeled on the front
- Includes a color-coded wiring diagram for both T568A and T568B terminations
- UL® listed, black painted steel panel
- Meets and exceeds T568A and T568B standards
- TAA compliant
