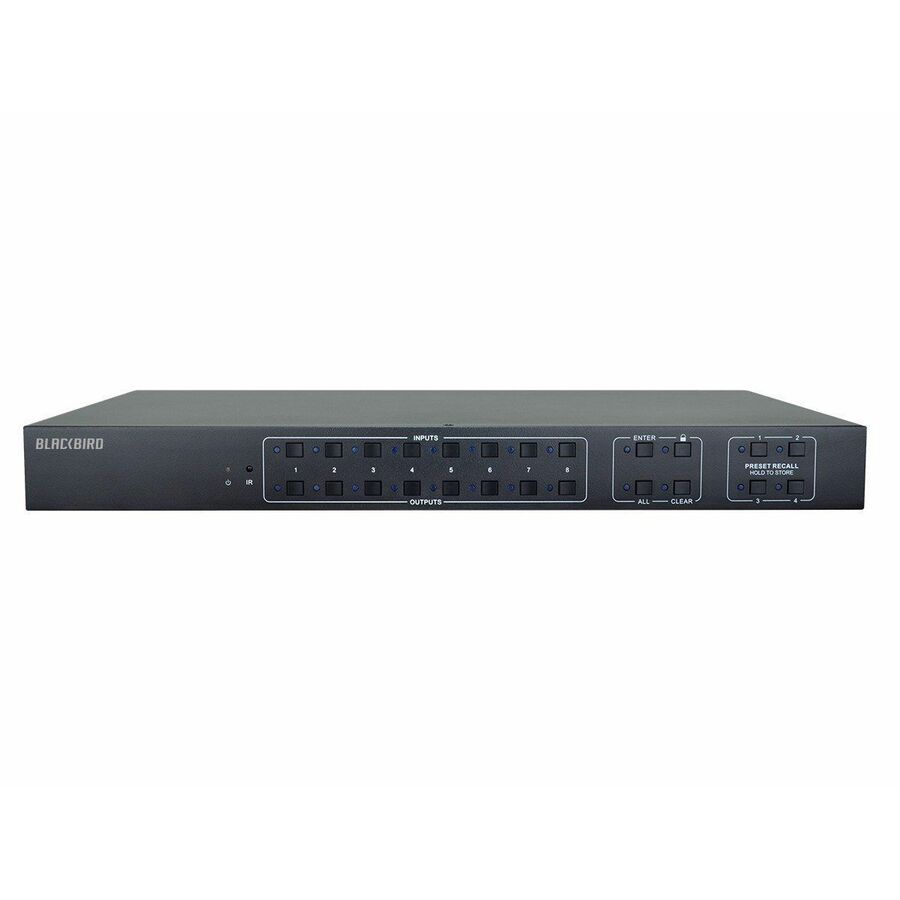

This Blackbird™ 4K 8x8 HDMI® Matrix allows you to independently distribute any of up to eight HDMI sources to any or all of eight HDMI displays. It is compliant with the HDMI 2.0 and HDCP™ 2.3 standards and supports video resolutions up to 4K@60Hz with YCbCr 4:4:4 color space with support for HDR10 and Dolby Vision™. Four of the eight outputs support video downscaling to 1080p and all 16 HDMI ports can provide 5 VDC, 500mA of power for use with Active Optical Cables (AOC).
It features eight sets of audio outputs, each of which has a digital optical S/PDIF connector and a stereo pair of RCA jacks. Each audio output channel can be independently assigned to output audio de-embedded from any of the HDMI inputs or outputs. It has advanced EDID® management and advanced HDCP handling for broader compatibility with a wide range of video source devices and output displays. It can be controlled using the front panel buttons, the included IR remote control, or with a computer using the built-in web GUI or with RS-232 control commands.
- Four of the eight outputs support video downscaling to 1080p@60Hz
- Each HDMI input and output port provides 5 VDC, 500mA of power for use with Active Optical Cables (AOC)
- It has advanced EDID® management and advanced HDCP handling
- Each audio output channel can be independently assigned to output audio de-embedded from any of the HDMI inputs or outputs
- Supports HDR10 and Dolby Vision™
- Includes eight audio output channels, each of which has a digital optical S/PDIF connector and a stereo pair of RCA jacks
- Supports up to 18 Gbps video bandwidth
- Supports input and output video resolutions up to 4K@60Hz with YCbCr 4:4:4 color space
- Compliant with the HDMI 2.0 and HDCP™ 2.3 standards
- Independently distributes any of eight HDMI® inputs to any of eight HDMI outputs
| Brand | |
|---|---|
| Brand | Monoprice |
| Power & Battery | |
|---|---|
| Input Voltage | 24 V DC |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 8 |
| Number of HDMI Inputs | 8 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Audio Ports | |
|---|---|
| Number of Digital Audio Optic | 8 |
| Digital Audio Optical Out | Yes |
| Number of Audio Line Out | 8 |
| Audio Line Out | Yes |
| General Features | |
|---|---|
| Number of Inputs | 8 |
| Number of Outputs | 8 |
| Manufacturer | Monoprice, Inc |
| Misc Ports | |
|---|---|
| Serial | Yes |
