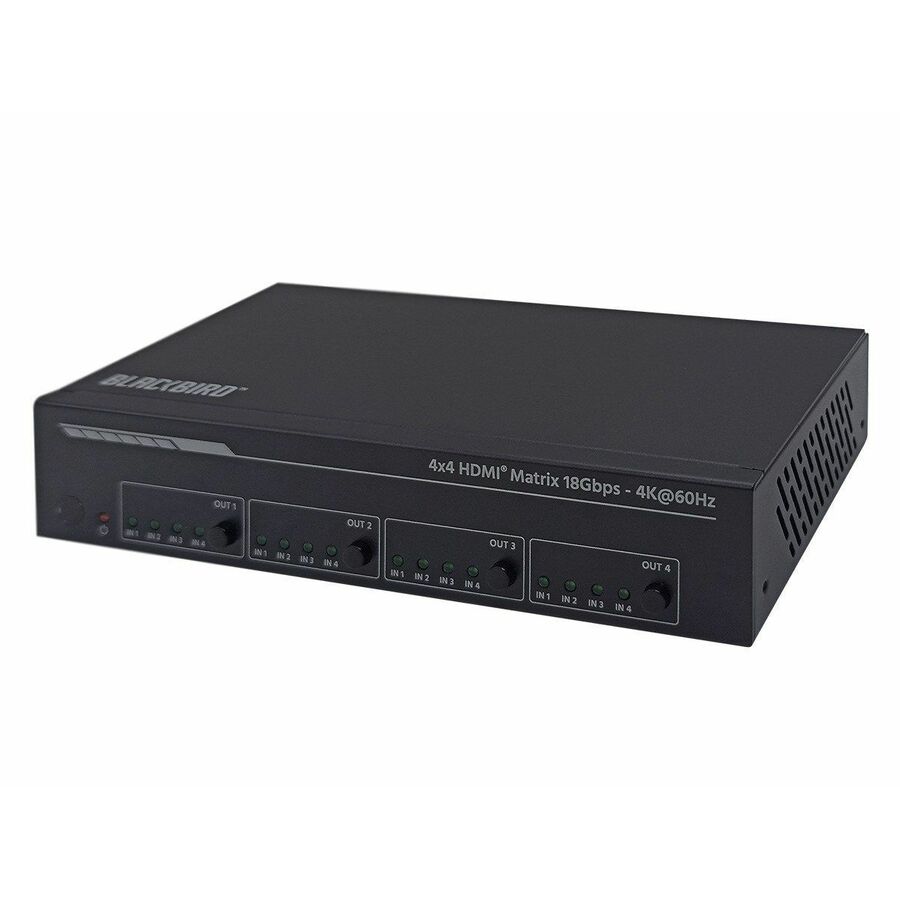

This 4K 4x4 HDMI® Matrix allows you to distribute any of up to four HDMI video sources to any or all of up to four displays. It complies with the HDMI 2.0 and HDCP™ 2.2 specifications, delivers up to 18Gbps video bandwidth, and supports video resolutions up to 4K@60Hz with the YCbCr 4:4:4 color space, including all HDMI 3D video modes. Each output can be individually downscaled to 1080p and each output has a digital coaxial and stereo analog audio output for connecting an external amplifier or powered speakers. It supports the Audio Return Channel (ARC) HDMI feature, which allows audio from the display to be redirected to the digital coaxial output. It includes advanced EDID® management and can be controlled using the front panel controls, the included IR remote control, or with a computer using RS-232 commands or the built-in Web GUI.
- Can be controlled using the front panel controls, the included IR remote control, or with a computer using RS-232 commands or the built-in Web GUI
- Supports advanced EDID® management
- Support the Audio Return Channel (ARC) feature, which directs audio from the connected display to the digital coaxial audio output
- Each output can be individually downscaled to 1080p
- Each output de-embeds the audio from the HDMI signal and directs it to an independent digital coaxial and stereo analog audio outputs
- Supports video resolutions up to 4K@60Hz with the YCbCr 4:4:4 color space, including all 3D HDMI video modes
- Supports up to 18Gbps video bandwidth
- Complies with the HDMI® 2.0, HDCP™ 2.2/1.4, and DVI™ 1.0 specifications
| Brand | |
|---|---|
| Brand | Monoprice |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V DC |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 4 |
| Number of HDMI Inputs | 4 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Audio Ports | |
|---|---|
| Digital Audio Coaxial Out | Yes |
| Number of Digital Audio Coaxi | 4 |
| Number of Audio Line Out | 4 |
| Audio Line Out | Yes |
| Mini-phone | Yes |
| General Features | |
|---|---|
| Number of Inputs | 4 |
| Number of Outputs | 4 |
| Manufacturer | Monoprice, Inc |
| Misc Ports | |
|---|---|
| Serial | Yes |
