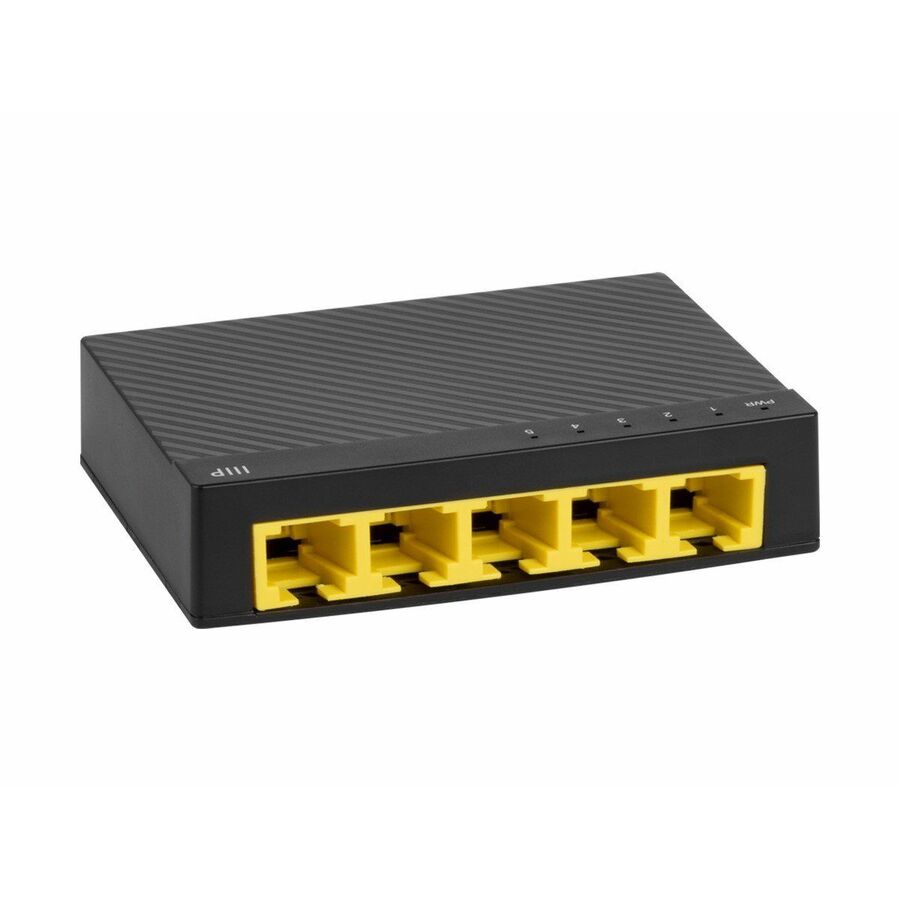

Monoprice™ | 5-Port Gigabit Ethernet Unmanaged Desktop Switch | 10/100/1000Mbps, IEEE 802.3ab, Cat5e, Plug and Play, for Gaming and Streaming
The Monoprice™ 5-Port Gigabit Ethernet Unmanaged Desktop Switch is a simple and reliable way to add additional connections to your network. Easily connect network-ready devices, such as gaming consoles and streaming devices, for a robust and fast wired network connection. Give users the fastest speeds possible over Cat5e (or better) cabling to distances up to 328 feet (100 meters). This Gigabit Ethernet Switch provides you with a plug and play (no configuration or setup required), high performance, and standards based solution to upgrade your old network to a Gigabit Ethernet network. Its compact size allows you to place it in confined spaces, such as inside a media panel, or even attach it to a wall. For network installers, this switch is an ideal solution to add data drops, especially since its fanless design ensures silent operation.
- Five 10/100/1000Mbps RJ45 Gigabit Ethernet ports
- Compact size
- Plug and play, no drivers or configuration required
- Supports Auto Negotiation and Auto MDI/MDIX
- IEEE 802.3x flow control
- 10Gbps backplane bandwidth
- 2K MAC address table
- 9,216 byte jumbo frame support
REDUCE LAG AND REMOVE BOTTLENECKS FROM YOUR NETWORK
Remove bottlenecks from your home network by upgrading it to a 10/100/1000Mbps Gigabit network with this Gigabit Ethernet switch. Enjoy the fastest possible file transfer speeds and reduced lag with wired connections using Cat5e (or better) cables to distances up to 328 feet (100 meters).
PLUG AND PLAY
This switch is a true plug and play device, requiring no drivers or special configuration. Simply plug in your network-enabled devices, such as computers, laptops, gaming consoles, and video streaming boxes, to get the most out of your home network.
COMPACT SIZE
Measuring less than 3.5" wide, this 5-port Gigabit Switch is compact enough to place in confined spaces, such as media panels or entertainment centers, or mounted to a wall, without taking up too much space.
LED INDICATORS
The LED indicators allow you to see your network status at a glance, with simple diagnostics, such as power status and LAN activity/link status for each port individually.
SUPPORTS AUTO NEGOTIATION AND AUTO MDI/MDIX
This switch supports Auto Negotiation, allowing it to set the optimal duplex mode and speed to communicate each connected device. The Auto MDI/MDIX feature means you don't need to worry about using special crossover cables.
1 Year Replacement Warranty
Monoprice™ not only stands behind every product we sell with a 1 year replacement warranty, we offer a 30 day money back guarantee as well! If the product you purchase does not satisfy your needs, send it back for a full refund.
- Effectively increases available bandwidth on your network
- Quickly and easily set up a wired network with 5 networking ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Compact form factor for your convenience and simplicity of usage
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| Brand | |
|---|---|
| Brand | Monoprice |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| Power Source | DC |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-T |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 5 |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| General Features | |
|---|---|
| Manageable | No |
| Maximum Data Transfer Rate | 128 MB/s |
| Frequency | 60 Hz |
| Manufacturer | Monoprice, Inc |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
