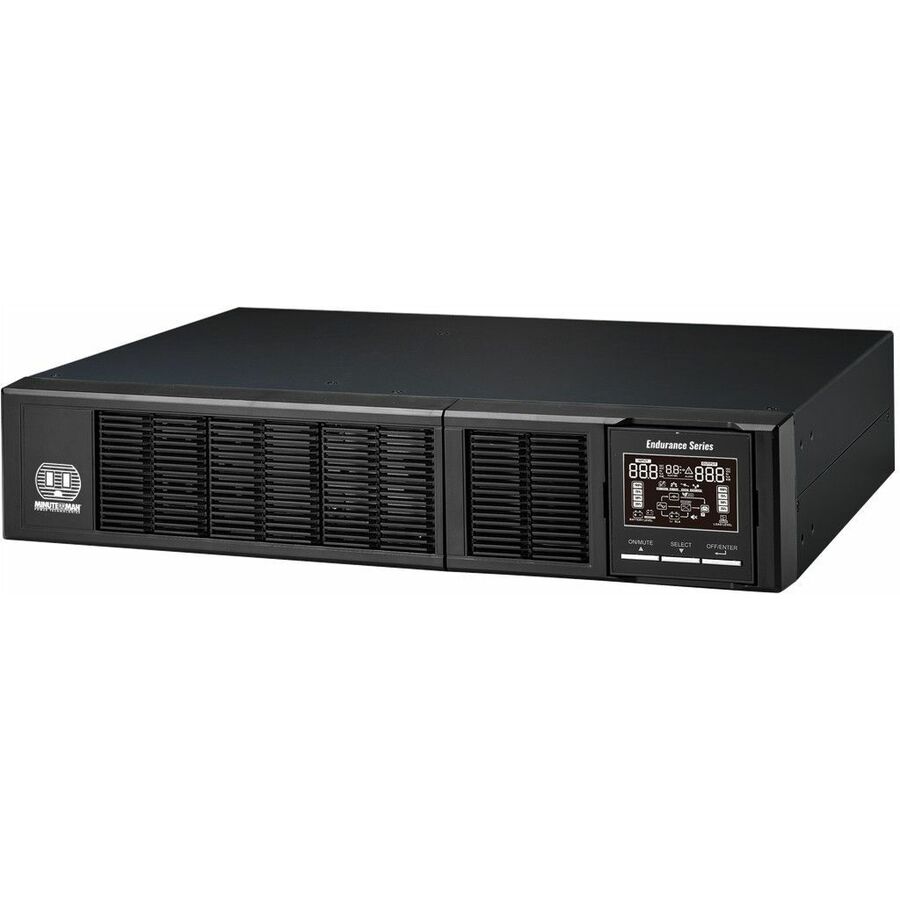

High density, double conversion On-Line UPS Series. Light and compact with advanced lithium battery technology.
Designed to protect the most sensitive IT and business infrastructure against the worst power environments. Continuous power conditioning with no signal transfer time, pure sinewave output. Wide variety of installation options to create the perfect power protection solution. 5-year product warranty, including batteries.
Ideally designed to protect the following markets and channels:
- Critical server, network, and telecommunications equipment
- Network servers, voice/data networks, healthcare and laboratory facilities and light industrial applications
- IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and power factor correction.
- Information Technology (IT), Edge Computing, Medical and Healthcare, Security and Access Control, Colleges and Universities, K-12 Education, Federal, State and Local government installations.
Key Product Features:
- LCD panel for configuration, monitoring and management of the UPS
- Advanced lithium (LiFePO4) battery technology
- Reduced rack footprint for greater density installations
- Tool-less battery connection using front panel of UPS
- Hot-swappable batteries
- 5-year product warranty (including batteries)
- Compatible with Minuteman SentryHD software
- True double-conversion online technology
- Automatic internal bypass
- Independent battery bypass
- Smart fan control
- Cold start function
- Available option slot
- Simultaneous serial communication options
- REPO port
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- Up to 12 minute runtime on full load to preserve critical data from power shortage interruptions
- Prevent critical data loss by staying powered during a blackout with up to 900 W load capacity
- 1000 VA load capacity provides sufficient backup during power failures
- 1 batteries for optimal performance with maximum usability
- 2 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
- Lithium Iron Phosphate (LiFePO4) battery chemistry delivers energy to the it infrastructure through an easily controlled reaction
- Single Phase phase for better usability and increased efficiency
- Double Conversion Online UPS with it infrastructure application/usage to ensure maximum productivity with added feasibility
- 120 V AC input voltage for optimal performance with maximum usability
| Brand | |
|---|---|
| Brand | Para Systems |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Phase | Single Phase |
| Input Frequency | 70 Hz |
| EPO Port | Yes |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Number of Batteries | 1 |
| Typical Battery Recharge Time | 2 Hour |
| Input Voltage Range | 55 V AC - 160 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 127 V AC |
| Efficiency Detail | 87% (Battery Mode) |
| Load Capacity (Watt) | 900 W |
| Load Capacity (VA) | 1000 VA |
| Input Power Factor | 0.99 |
| Output Frequency | 60 Hz |
| Backup/Run Time (Full Load) | 12 Minute |
| Backup/Run Time (Half Load) | 25 Minute |
| Transfer Time | 0 ns |
| Waveform Type | Pure Sine Wave |
| Networking & Connectivity | |
|---|---|
| Network Management | Network Card |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | Para Systems, Inc |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Operating Humidity | 20% - 95% |
