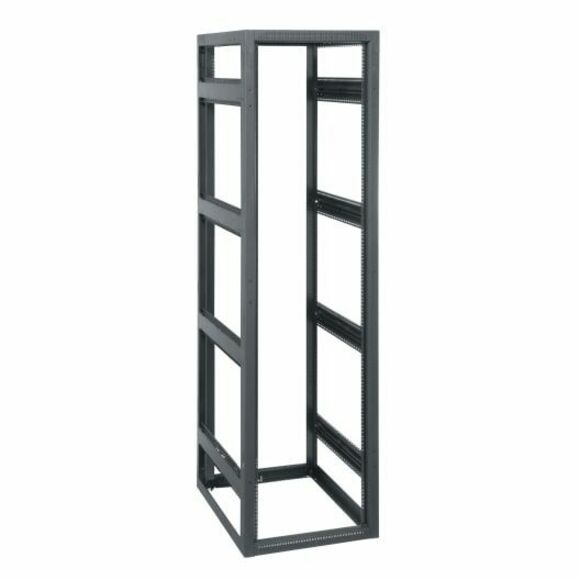

The #1 AV rack because it is both Forward and Lever Lock compatible providing maximum mounting capacity on and off the rail and a suite of tool-free accessories making rack installations 5Xs faster! The BGR-4532LRD floor standing rack is a top-of-the-line rack that offers numerous features to make it the perfect choice for those looking for a high-quality, versatile, and easy-to-use rack. It is the 1st Forward Compatible rack that comes with a breakthrough design providing high rack strength without extra weight and accepts Lever Lock system tool-free cable management accessories. The 23in width of this 4-post rack provides extra room in "no-man's land" for front-to-back cable management and for mounting small devices on Lever Lock, freeing up valuable rack space. The innovative side lacing on the Forward rear rack rail provides flexibility for internal cabling and accepts the Forward vertical cable management products. The floor standing cabinet also includes a standard vented rack rear door that accepts optional fans and accepts a brush grommet rear door kit for a large cable passage without fishing. The wide-open rack top and bottom offer many cabling and cooling options, while the standard front and rear adjustable Forward rack rail with numbered spaces provides maximum convenience and versatility.
- Optional curved and beveled front doors in solid, vented and plexiglass styles
- Optional stackable 3" extender bay available for front and rear
- Two pairs of 11-gauge, Forward rackrail with numbered rackspace increments
- 1/2", 3/4", 1" & 1-1/2" electrical knockouts and 5/8" and 1/2" D UHF/VHF antennae knockouts on rear top & bottom, easily removable for cable pass-through. Top cable management plate (38 space and up) includes 1/2", 3/4", 1" 1-1/2" & 3" electrical knockouts and 5/8" and 1/2" D UHF/VHF antennae knockouts 23" OD width, multiple depths
- Rackrail depth indicators
- Pre-threaded ganging holes allow for rack joining after loading
- Fully welded construction provides the following weight capacities: UL Listed load capacity: 3,000 lbs., Seismic certified capacity: 1,175 lbs.
- Accepts patented Lever Lock™ tool free and hardware free internal device and cable management system accessories
- Provides more rackspace in a smaller overall height than similar racks
- All BGRs are now equipped with the r
| Brand | |
|---|---|
| Brand | Legrand Group |
| Size / Dimensions | |
|---|---|
| Form Factor | Floor Standing |
| Rack Height | 45U |
| Rack Width | 19" |
| Rack Depth | 29.40" |
| Rack Post Quantity | 4 |
| Static/Stationary Weight Capacity | 12000 lb |
| Appearance | |
|---|---|
| Rail Material Gauge | 11 |
| General Features | |
|---|---|
| Rear Rail | Yes |
| Front Rail | Yes |
| Manufacturer | Legrand Group |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD |
