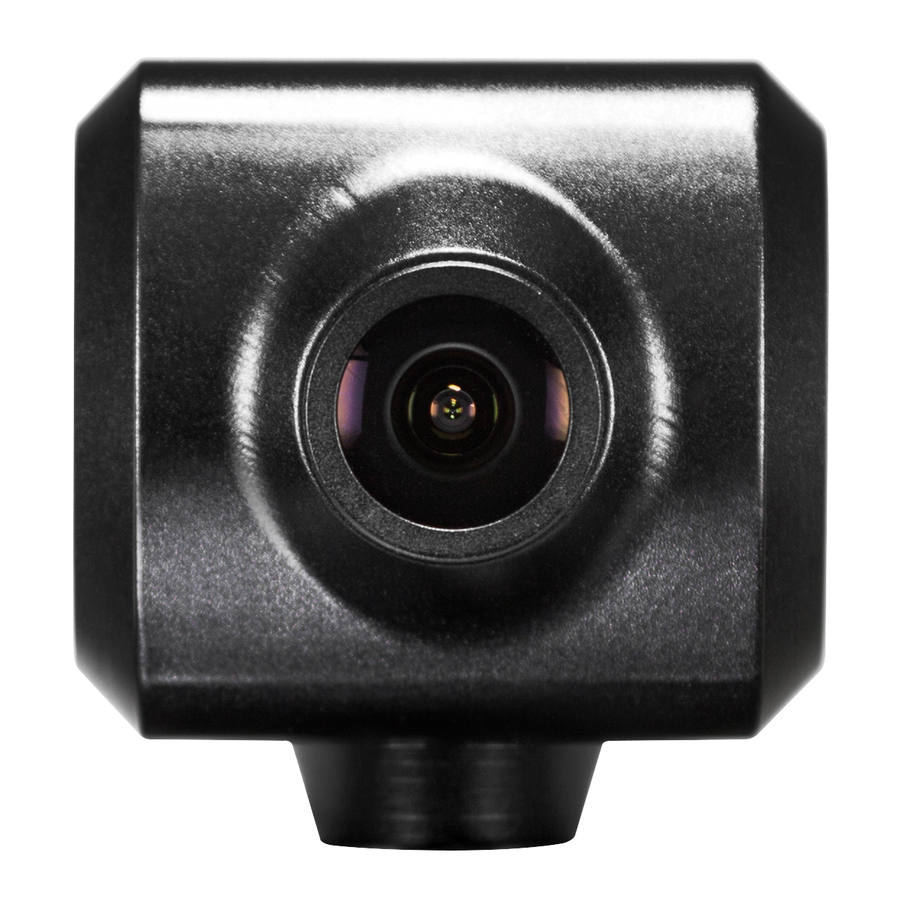

Marshall Miniature CV503-U3 2.5 Megapixel Full HD Surveillance Camera - Color

349.99 349.99
349.99

349.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Remote Management
  • HD Recording
  • Features
  • Lens Included
  • Connectivity Technology
  • Color Supported
  • Effective Camera Resolution
  • Maximum Operating Temperature
  • Minimum Operating Temperature
  • Maximum Video Resolution
  • Image Sensor Type
  • Maximum Focal Length
  • Lens Type
  • Recording Formats
  • Manufacturer
  • Product Type
  • Product Line
  • Product Model
  • Manufacturer Website Address
  • Maximum Frame Rate
  • Lens Mount Type
  • Field of View
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

The Marshall CV503-U3 is a straight forward USB3.0 HD camera with secure locking USB connection and customizable lens options. CV503-U3 uses drivers already existent on your PC, Laptop, Mac or Linux system and is software agnostic so any soft codec can be used. Settings adjustable via UVC1.5 offer simple plug-and-play connectivity and reliable operation.

Miniature Broadcast Quality

CV503-U3 cameras use same sensor and processors as other Marshall Broadcast ProAV cameras such as CV503, CV506, CV566, CV344, CV346 commonly used in professional broadcast production, sportscast, newscast, television production, and a variety of other professional broadcast quality applications. These cameras have same adjustable broadcast features such as White Balance, Black Levels, Exposure, Gain, Gamma, and many more.

Lens Flexibility

CV503-U3 arrives with a wide angle 2.8mm lens producing a 90° horizontal angle-of-view. Choose from a variety of Focal Length options to achieve a custom AOV (angle-of-view) for your personal huddle space, streaming studio, workspace, live event venue or collaboration area. Interchangeable lenses provides unprecedented customization and personal design control.

Software Agnostic Security

Marshall's USB cameras use capture device drivers already present on your laptop or computer, so no additional drivers necessary that track and change your video capture settings. CV503-U3 is software agnostic, so feel free to use any video conference, streaming, video chat or computer video capture soft codecs on the market today.

Durable and Secure

CV503-U3 is built with same durable body as other Marshall miniature POV cameras with rear connector protection wings on back panel. CV503-U3 ships with a locking six foot USB3.0 cable, so USB cable can't be pulled out during video streaming or collaboration.

  • Is a smart solution for using at homes and SMB security surveillance installations
  • Up to 1920 x 1080 video resolution
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • 2.80 mm maximum focal length for dependable identification distances with better coverage
  • Full HD recording format for exceptional video quality with maximum productivity
  • Fixed lens type effectively compensates for changes in the level of light by adjusting the exposure time or using gain
  • Automatic White Balance feature for maximum productivity with added dependability
  • Wired connectivity technology offers maximum visual convenience
Brand
Brand Marshall Electronics
Screen / Display
Color Supported Color
Networking & Connectivity
Connectivity Technology Wired
Camera / Webcam
HD Recording Yes
Lens Included Yes
Effective Camera Resolution 2.5 Megapixel
Maximum Video Resolution 1920 x 1080
Image Sensor Type CMOS
Maximum Focal Length 2.80 mm
Lens Type Fixed
Recording Formats Full HD
Maximum Frame Rate 60 fps
Lens Mount Type M12-mount
Field of View 90°AOV
General Features
Remote Management No
Manufacturer Marshall Electronics, Inc
Compliance & Certification
Maximum Operating Temperature 122°F (50°C)
Minimum Operating Temperature 14°F (-10°C)
