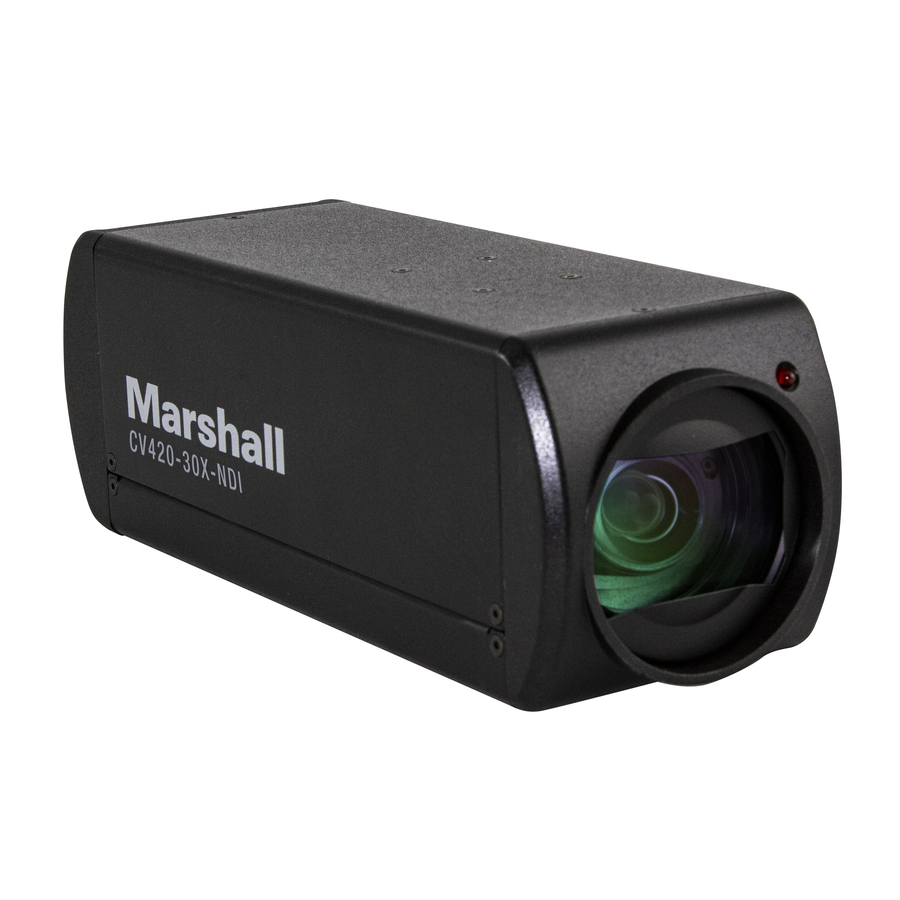

The CV420-30X-NDI 30X optical zoom NDI® camera utilizes a professional grade 8.5-megapixel sensor to capture crisp HD video up to 3840x2160p at 60fps with support for all HD formats. Marshall's straight forward design and ease of use make this camera a valuable tool in a wide variety of broadcast and professional A/V applications.
30X Optical Zoom
The 30X optical zoom block offers an extensive zoom range from 4.6mm to 135mm starting at 68° all the way out to 3° horizontal angle-of-view for maintaining image crispness from ultra-wide to long telephoto shots.
NDI® Workflow
To keep your productions looking great NDI® preserves visual quality, frame accuracy, and source synchronization. NDI® also opens a wide range of NDI® Tools available to make your new camera easily discoverable, controllable, adjustable, and consumable into NDI® workflows.
Low-light Sensitivity
The CV420-30X-NDI operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.
NDI® Network
Ideal for use in NDI® networked and A/V installations, the CV420-30X-NDI offers the convenience of NDI®|HX2. and HDMI simultaneous outputs with stereo audio embedding.
- 8 Megapixel (1/2.5") HD sensor
- 30X Optical Zoom (4.6~135mm) - 68° AOV
- Up to 3840x2160p, 1920x1080p and 1280x720p
- Frame rates: 59.94/50/29.97/25fps
- NDI®
- HX2. and HDMI simultaneous outputs
- Ethernet I/O supports video, control, audio and PoE over a single cable
- RS232 and 3.5mm audio input with passthrough
- NDI® discoverable, controllable, manageable via NDI®Tools
| Brand | |
|---|---|
| Brand | Marshall Electronics |
| Screen / Display | |
|---|---|
| Color Supported | Color |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V DC |
| Power Source Type | DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Optical Zoom | 30x |
| HD Recording | Yes |
| Lens Included | Yes |
| Effective Camera Resolution | 8.5 Megapixel |
| Maximum Video Resolution | 3840 x 2160 |
| Image Sensor Type | CMOS |
| Minimum Focal Length | 4.60 mm |
| Maximum Focal Length | 135 mm |
| Minimum Aperture | f/3.4 |
| Maximum Aperture | f/1.5 |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/1 Second |
| Lens Type | Varifocal |
| Recording Formats | 4K |
| Maximum Frame Rate | 60 fps |
| Field of View | Horizontal: 68 to 3.5° |
| General Features | |
|---|---|
| Remote Management | Yes |
| Indoor/Outdoor | Indoor/Outdoor |
| Video Formats | H.264 |
| Analog Video Signal Format | NDI |
| Manufacturer | Marshall Electronics, Inc |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
