High Visibility Under Strong Sunlight
With outstanding high brightness of 3,300 nits (Typ.), the 86XF3SK outdoor display delivers contents clearly while captivating passersby, making it the optimized display for outdoor visibility. In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.
Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

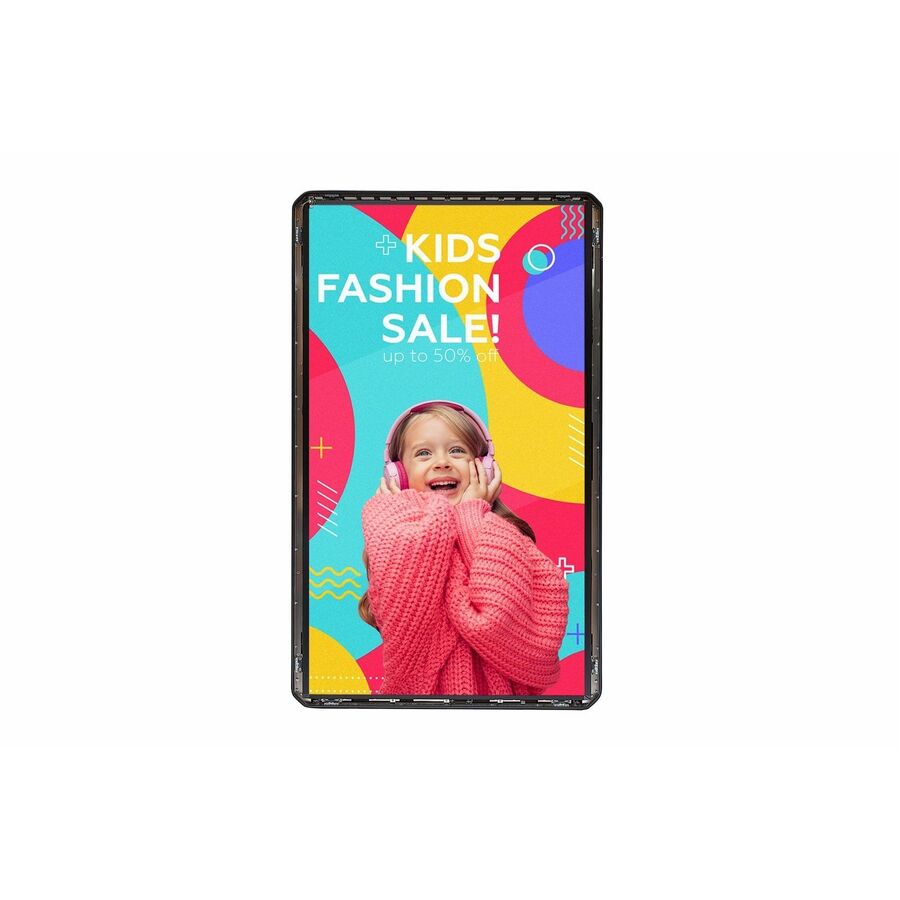

Open-frame Type Display
86XF3SK is an open-frame type high brightness displays to give customers flexibility in exterior of casing such as colors or design.
Wide Range of Operating Temperature
The display offers superb reliability under a wide range of operating temperatures, which also goes through LG's solar test* which causes a lot of thermal energy. So the 86XF3SK requires fewer constraints for outdoor installations** which are usually exposed to strong sunlight and various environmental changes.
Smart Brightness Compensation
The built-in BLU* sensor frequently measures the brightness of the display and automatically compensates for reduced brightness during operation.
- 86" 3,840 x 2,160 (UHD) Display with 3,300 nits brightness
- World's first UL Verified display for anti-discoloration characteristics
- Durable design with conformal coating & a wide operating temperature
- Easy maintenance with webOS™ 6.0
- Smart brightness control
- Electrical safety features
| Brand | |
|---|---|
| Brand | LG Electronics |
| Screen / Display | |
|---|---|
| Native Contrast Ratio | 1 , 100:1 |
| Dynamic Contrast Ratio | 000:1 , 500 |
| Image Sticking Minimization ( | Yes |
| Viewable Screen Size | 86" |
| Multi-touch Screen | No |
| Display Resolution | 3840 x 2160 |
| Panel Technology | In-plane Switching (IPS) Technology |
| Brightness | 3300 Nit |
| Response Time | 8 ms |
| Color Gamut | 68% NTSC |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Color Depth | 10-bit |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Power Consumption | 180 W |
| Networking & Connectivity | |
|---|---|
| Infrared Output | No |
| Content Synchronization | RS-232C |
| Wireless LAN | No |
| Bluetooth | No |
| USB Ports | |
|---|---|
| USB Type-C | No |
| Number of USB 2.0 Ports | 1 |
| HDMI Ports | |
|---|---|
| Number of HDMI Inputs | 1 |
| DisplayPort | |
|---|---|
| DisplayPort In | Yes |
| DisplayPort Output | No |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Audio Ports | |
|---|---|
| Audio Line Out | No |
| Audio Line In | No |
| Audio | |
|---|---|
| Speakers | No |
| Software & Licensing | |
|---|---|
| Embedded CMS | Local Contents Scheduling |
| Compatible Software | SuperSign Control+ |
| Size / Dimensions | |
|---|---|
| VESA Mount Compatible | No |
| Orientation | Portrait |
| Bezel Width (Top) | 2.05" |
| Bezel Width (Bottom) | 2.05" |
| Bezel Width (Left) | 2.61" |
| Bezel Width (Right) | 2.61" |
| Security | |
|---|---|
| HDCP Version | 2.2 |
| General Features | |
|---|---|
| Operation Hours | 24 Hours/7 Days |
| Manufacturer | LG Electronics |
| Video Ports | |
|---|---|
| DVI-D In | No |
| Misc Ports | |
|---|---|
| RS-232C Input | Yes |
| RS-232C Output | Yes |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 95°F (35°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Humidity | 80% |
| Minimum Operating Humidity | 10% |
| TAA Compliant | No |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Environmental Certification | ErP |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
