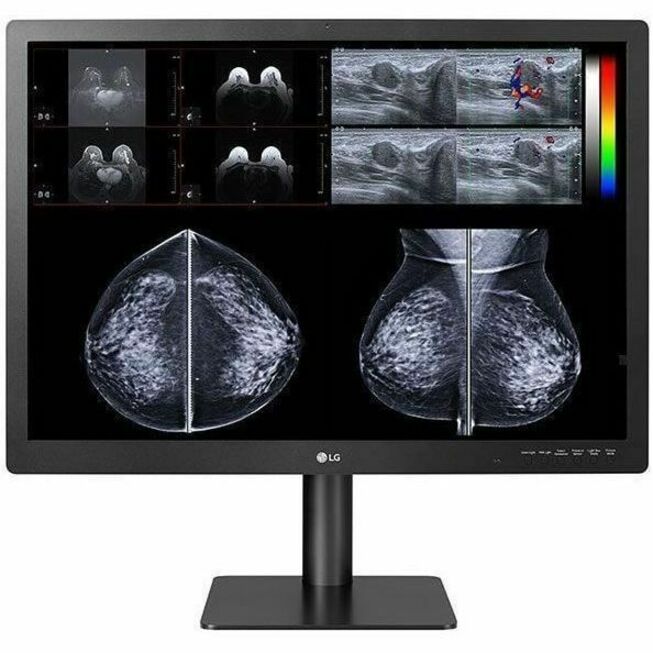

31-inch 12MP IPS Display | Designed for Mammography
The 12MP display creates a clear image that allows details to be visible.
Accuracy
31-inch 12MP IPS Display
Self-calibration with Front Sensor
Efficiency
Focus View
Picture by Picture & Dual Controller
Convenience
6 Hot Key
Ergonomic Design
Accurate Imaging | Multi-resolution Mode | Multi-resolution Mode for Compatibility
Diagnostic monitors often need to be connected to various modalities, sometimes with differing resolutions. The 31HN73D-B has a multi-resolution mode you can adjust to optimize to the connected device.
Pathology Mode | Realistic Color Reproduction
In Pathology Mode, the 31HN713D-B Diagnostic Monitor reproduces virtually the same level of detail and color as seen directly under a microscope.
Self-calibration | Consistency in Medical Images
The front-sensor allows for automatic, self-calibration without the need for additional measuring equipment. Get quality and consistency of medical images that are displayed by maintaining accurate values.
Presence Sensor
The Presence Sensor on the 31HN713D-B diagnostic monitor automatically turns off the display when no motion is detected. Be more secure against exposing patient information and other sensitive data with this feature.
Auto Luminance Sensor
Auto Luminance sensor measures the backlight brightness stability and automatically compensates for brightness fluctuations caused by aging for a consistently stable display during the usage life.
Focus View | Fully Focus on the Important part
LG 31HN713D-B includes the Focus View Mode which allows you to review a specific part of the medical image more closely. This allows professionals to focus fully on the important part of the image to help achieve a more accurate and efficient diagnosis.
Down Lighting & Wall Lighting | Optimal Reading Condition
Down and Wall Lighting Modes help reduce the contrast between the monitor brightness and ambient lighting conditions, allowing you to work comfortably without having to adjust the lighting to view paper documents in the darkroom.
6 Hot Keys | Intuitive Control
The 31HN713D-B's 6 Hot Keys make changing between screen modes easy. The 6 Hot Keys are quick and easy to operate while working, allowing you to change mode, screen resolution, and lighting settings without disrupting your workflow.
Easy to Install and Ergonomic Design
The One-Click Stand and ultra-lightweight body make installing the 31HN713D-B simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel.
- 31-inch 12MP (4200x2800) IPS Display
- Multi-resolution Mode (12/6MP)
- 1080 cd/? (Typ.)
- Pathology Mode, Focus View Mode
- Lighting (Down/Wall Lighting)
| Brand | |
|---|---|
| Brand | LG Electronics |
| GPU / Graphics | |
|---|---|
| Number of Screens | 1 |
| Screen / Display | |
|---|---|
| Contrast Ratio | 1 , 800:1 |
| Screen Size Class | 31" |
| Viewable Screen Size | 31" |
| Backlight Technology | LED |
| Maximum Resolution | 4200 x 2800 |
| Aspect Ratio | 16:9 |
| Panel Technology | In-plane Switching (IPS) Technology |
| Brightness | 1080 Nit |
| Response Time | 5 ms |
| Color Gamut | 97% sRGB |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Pixel Pitch | 0.18159 mm x 0.18159 mm |
| Screen Surface | Anti-glare |
| Color Depth | 10-bit |
| Response Time Details | 14 ms GTG Off Mode |
| Power & Battery | |
|---|---|
| Input Voltage Range | 120V to 230V |
| Maximum Power Consumption | 180 W |
| USB Ports | |
|---|---|
| USB | Yes |
| HDMI Ports | |
|---|---|
| HDMI | No |
| DisplayPort | |
|---|---|
| DisplayPort Input | Yes |
| DisplayPort | Yes |
| DisplayPort Output | No |
| Number of DisplayPorts | 2 |
| Audio Ports | |
|---|---|
| Number of Audio Line Out Ports | 1 |
| Headphone | Yes |
| Size / Dimensions | |
|---|---|
| Weight with Stand (Approximat | 30.86 lb |
| Height with Stand | 26.09" |
| Depth with Stand | 11.02" |
| Width with Stand | 27.74" |
| Maximum Adjustable Height | 4.33" |
| Tilt Angle | -5° to 15° |
| Appearance | |
|---|---|
| Adjustable Stand | Yes |
| Glass Hardness | 3H |
| General Features | |
|---|---|
| Swivel Angle | -15° to 15° |
| Frequency | 60 Hz |
| Manufacturer | LG Electronics |
| Misc Ports | |
|---|---|
| Interface | USB-C |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
