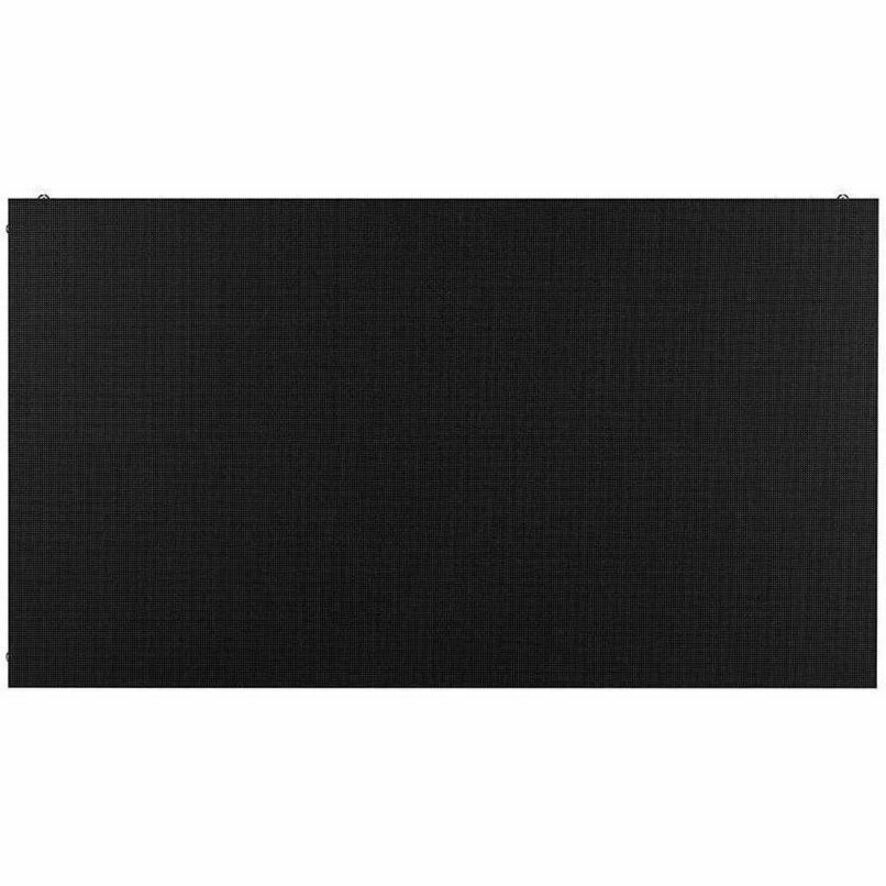

LSCB Direct View LED Customizable to fit your needs
For added installation flexibility, the LSCB series offers half-height/ half-width and curved cabinets to create various types of screens, including customized curvature, concave and convex configurations.
Ultra Slim Depth
The LSCB Series' ultra-slim cabinet design, with 37.5mm edge thickness, is its most significant advantage. This feature enables the LSCB Series to be installed and utilized in any type of venue without restriction.
Front and Rear Installation and Maintenance
The LSCB series cabinets can be accessed from the front or rear for maintenance for added convenience and enhanced installation options.
16:9 FHD/UHD Configuration
Each cabinet uses a 16:9 aspect ratio, the most commonly used in FHD and UHD content displays. This allows you to keep using existing content without additional cost and time for editing.
EMC Certified & Fire Resistant Design
The LSCB Series is safe from electromagnetic waves, harmful to the environment and human body, with EMC Class B Certification and is designed with fire protection certification to prevent the fast spread of flames even if it catches on fire.
Compatibility with LG Software Solution
Powered by LG's high performance system controller and webOS™, the LSCB series is compatible with LG software solutions, including SuperSign CMS, LED Assistant, and ConnectedCare™, which help customers operate their own business flawlessly.
- 2.5 mm Pixel Pitch, 300x337 cabinet
- 800 Nits Brightness
- Front Accessible
- IP30, EMS Certified and Fire Resistant
- Customizable (Interchangeable with others LSCB copper skus.)
- Show your message 24/7
| Brand | |
|---|---|
| Brand | LG Electronics |
| Screen / Display | |
|---|---|
| Color Uniformity | Cy , ±0.003 Cx |
| Native Contrast Ratio | 000:1 , 5 |
| Minimum Color Temperature | 5300.3°F (2926.8°C) |
| Maximum Color Temperature | 16280.3°F (9026.8°C) |
| Physical Pixel Density | 160000 pixels/m² |
| LED Type | Single SMD |
| Frame Refresh Rate | 60 Hz |
| High Dynamic Range (HDR) Type | HDR10 Pro |
| High Dynamic Range (HDR) | Yes |
| Display Resolution | 120 x 135 |
| Brightness | 800 Nit |
| Standard Refresh Rate | 3.84 kHz |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 160° |
| Pixel Pitch | 98.4 mil |
| Module Resolution | 120 x 135 |
| Power & Battery | |
|---|---|
| Heat Dissipation | 55.01 W |
| Average Heat Dissipation Per | 18.29 W |
| Input Voltage | 230 V AC |
| Size / Dimensions | |
|---|---|
| Module Height | 13.30" |
| Module Width | 11.80" |
| Cabinet Surface Area | 1 Sq. ft. |
| Weight per Square Meter (Appr | 27100 g/m² |
| Weight per Module (Approximat | 1.40 lb |
| Weight per Cabinet (Approxima | 6 lb |
| Appearance | |
|---|---|
| Housing Material | Die-cast Aluminum |
| General Features | |
|---|---|
| Service Access | Front |
| Number of Modules Per Cabinet | 1x1 |
| Manufacturer | LG Electronics |
| Maximum LED Life | 11.4 Year |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Humidity | 80% |
| Minimum Operating Humidity | 0% |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Certification | REACH |
| Ingress Protection (IP) Rating | IP30 |
