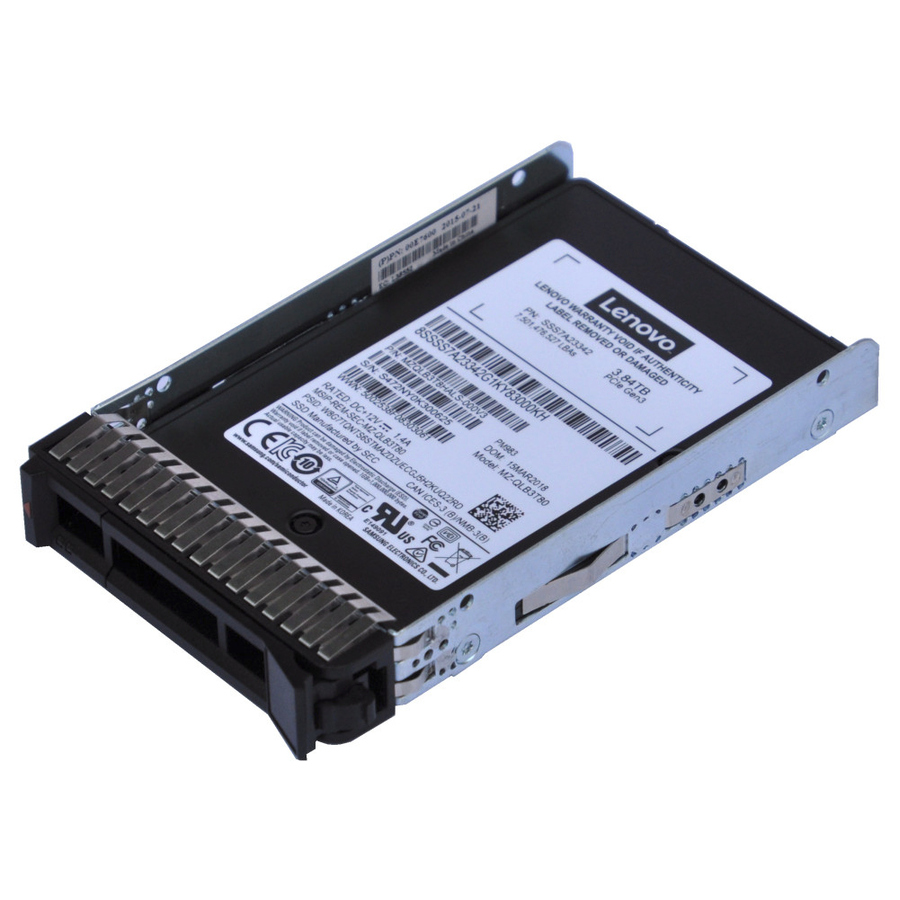

The Lenovo PM983 Entry NVMe PCIe solid-state drives (SSDs) in capacities of 1.92 TB and 3.84 TB are general-purpose yet high-performance SSDs for System x and ThinkServer systems. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
Did you know?
The PM983 family of SSDs are follow-ons to the PM963 drives. The PM983 drives offer improved performance, both in terms of random read/write performance (IOPS) and sequential read/write bandwidth (MB/s). Sequential write latency has also been improved.
Lenovo Entry SSDs are suitable for read-intensive and general-purpose data center workloads, however their NVMe PCIe interface means the drives also offer high performance. Overall, these SSDs provide outstanding IOPS/watt and cost/IOPS for enterprise solutions.
- Supports Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T).
- Protect data integrity from unexpected power loss with Samsung's advanced power-loss protection architecture
- Samsung 32 layer V-NAND stacks the vertical NAND layers in three dimensions, solving the cell-to-cell interference that causes data corruption in planar NAND.
- Advanced ECC Engine and End-to-End Data Protection
- Direct PCIe 3.0 x4 connection for each NVMe drive, resulting in up to 4 GBps overall throughput.
- Available in 2.5-inch (U.2) and 3.5-inch form factors
- Low cost, read-intensive SSD from Samsung
| Brand | |
|---|---|
| Brand | Lenovo Group Limited |
| Storage | |
|---|---|
| Storage Capacity | 3.84 TB |
| Drive Type | Internal |
| Drive Interface | U.2 (SFF-8639) NVMe |
| Drive Interface Standard | PCI Express 3.0 x4 |
| Maximum Read Transfer Rate | 3200 MB/s |
| Maximum Write Transfer Rate | 2000 MB/s |
| Power & Battery | |
|---|---|
| Operating Power Consumption | 10.60 W |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | No |
| Size / Dimensions | |
|---|---|
| Form Factor | 2.5" |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | Lenovo Group Limited |
