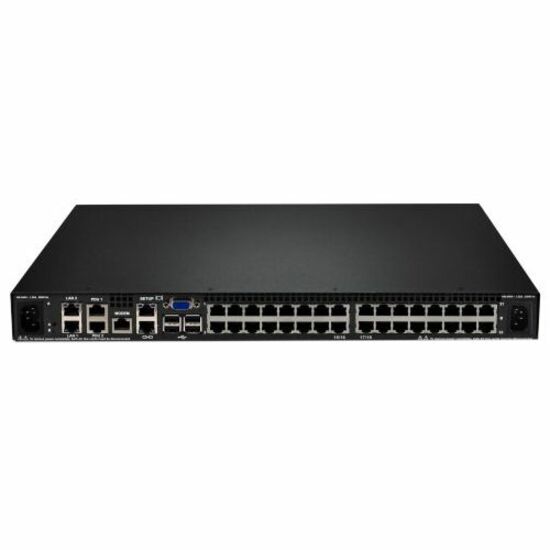

The IBM Global 2X2X16 Console Manager (GCM16) and IBM Global 4X2X32 Console Manager (GCM32) are the next generation digital keyboard-video-mouse (KVM) console managers that provide KVM-over-IP and serial console management technology in a single appliance. Either console lets you access and manage all servers remotely, even to the system BIOS, using your existing IP infrastructure. The GCM16 has 16 target ports and supports up to 2 local users and 2 remote users, and the GCM32 has 32 target ports and supports up to 2 local users and 4 remote users. Figure 1 shows these two models.
- Use this KVM Switchbox and eliminate the need for manually switching cables between sources
- Up to 1680 x 1050 video resolution
- The Built-in USB port enables easy connection with USB-compatible devices
- The rack-mountable form factor provides convenient installation
| Brand | |
|---|---|
| Brand | Lenovo Group Limited |
| GPU / Graphics | |
|---|---|
| Graphic Mode | WSXGA+ |
| Power & Battery | |
|---|---|
| Input Voltage | 220 V AC |
| Networking & Connectivity | |
|---|---|
| Daisy Chain Supported | Yes |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 4 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 3 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1680 x 1050 |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 2 |
| Number of Remote Users Suppor | 4 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Manufacturer | Lenovo Group Limited |
