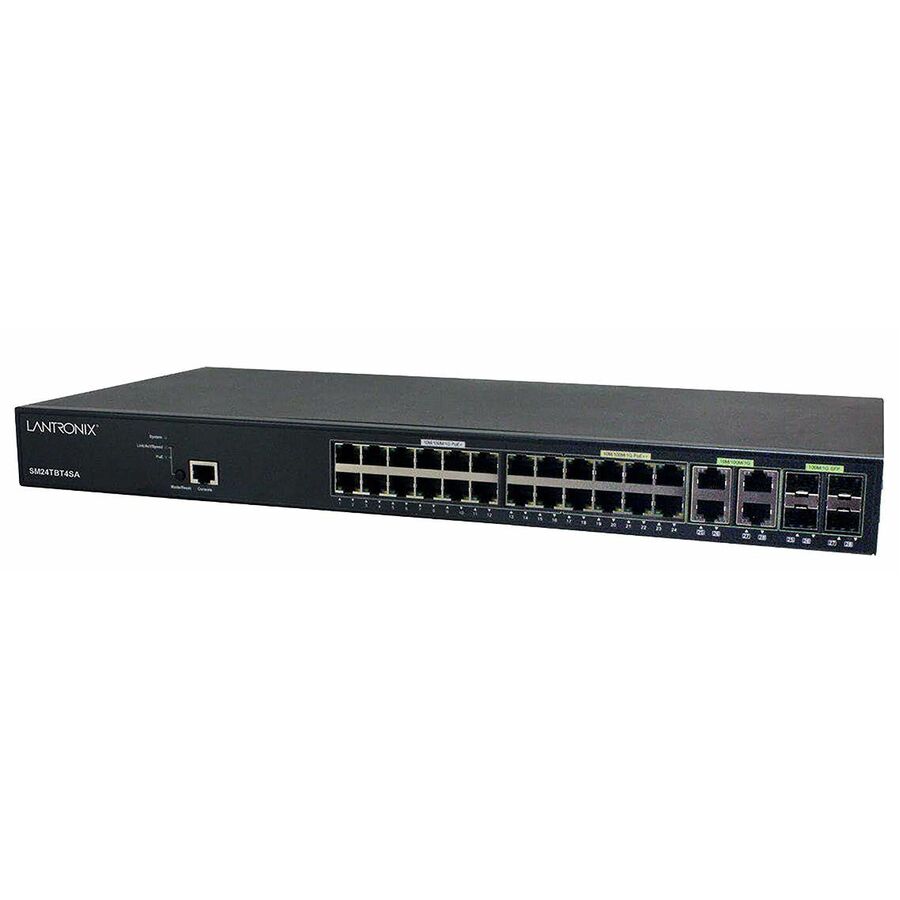

MANAGED GIGABIT ETHERNET POE++ SWITCHES INTEGRATED WITH PERCEPXION SOFTWARE
These Managed PoE++ Switches come integrated with the Lantronix cloud-based Percepxion software End-to-End Solutions platform, providing comprehensive device life cycle management, enterprise application integration, and data analytics, all through a single pane of glass.
With advanced Layer 2 features and a simple to navigate user interface, these switches offer performance and reliability at a cost-effective, secure, and reliable solution for the network edge.
Utilizing PoE enables users to connect, power and manage devices using a single Ethernet cable; simplifying installation and eliminating the need for additional power outlets.
These switches also include DMS, is accessible by Percepxion, or the local web manager, providing advanced configuration and management of all IP addressable devices in the network. This advanced management provides a graphical network topology, floor map creator, device map view, traffic monitoring, and network diagnostics for troubleshooting.|
Features Benefits
Energy Efficient Ethernet (IEEE 802.3az): Save power and reduce total cost of ownership while building a green Ethernet networking environment.
IEEE 802.3at/af/bt: Switch provides up to 90 Watts per port and automatically detects PoE devices and their power class to simplify PoE deployments.
Always on PoE: Always on PoE ensures there is always PoE power to the attached PDs so a reboot or firmware upgrade to the switch will not disrupt power to the PDs allowing camera or wireless access points to continue functioning.
Advanced PoE Management: Includes PoE++ options to power IP devices with power-saving features like Power scheduling, PoE configuration, and Auto Power Reset to automatically monitor and reboot PD when no response to ICMP is received.
Extended Mode PoE: Support PoE beyond the 100-meter limitation. With extended mode PoE the power output can cover a distance up to 250 meters at 10Mbps.
Map Views: Topology Maps - Automatically creates map that provides end-to-end visibility of attached PDs with remote access into each device.
Floor Maps - Import building / floor maps into switch and place switches, cameras, access points, and other devices on map for complete visibility of networking equipment.
Google Maps - Utilize Google Maps to located devices by state, city, address.
Cable Diagnostics: Remotely run diagnostics on copper cables to check continuity and distance of the cable. Determine distance of any open or short on the cable to have faster fault resolution.
- Effectively reduces downtime with improved network performance
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 28 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Rack mounting enables you to organize wires & secure cables for professional installation
- Management capability provides control over setup and configuration of your network
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| Brand | |
|---|---|
| Brand | Lantronix |
| Power & Battery | |
|---|---|
| PoE Budget | 740 W |
| Input Voltage | 230 V AC |
| Power Source | AC |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100/1000Base-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 28 |
| PoE (RJ-45) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| General Features | |
|---|---|
| Manageable | Yes |
| Maximum Data Transfer Rate | 128 MB/s |
| Frequency | 60 Hz |
| Manufacturer | Lantronix, Inc |
| Expansion Slots | |
|---|---|
| Shared SFP Slot | Yes |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 4 x 100/1000 Gigabit Ethernet RJ-45/SFP Combo Port |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
