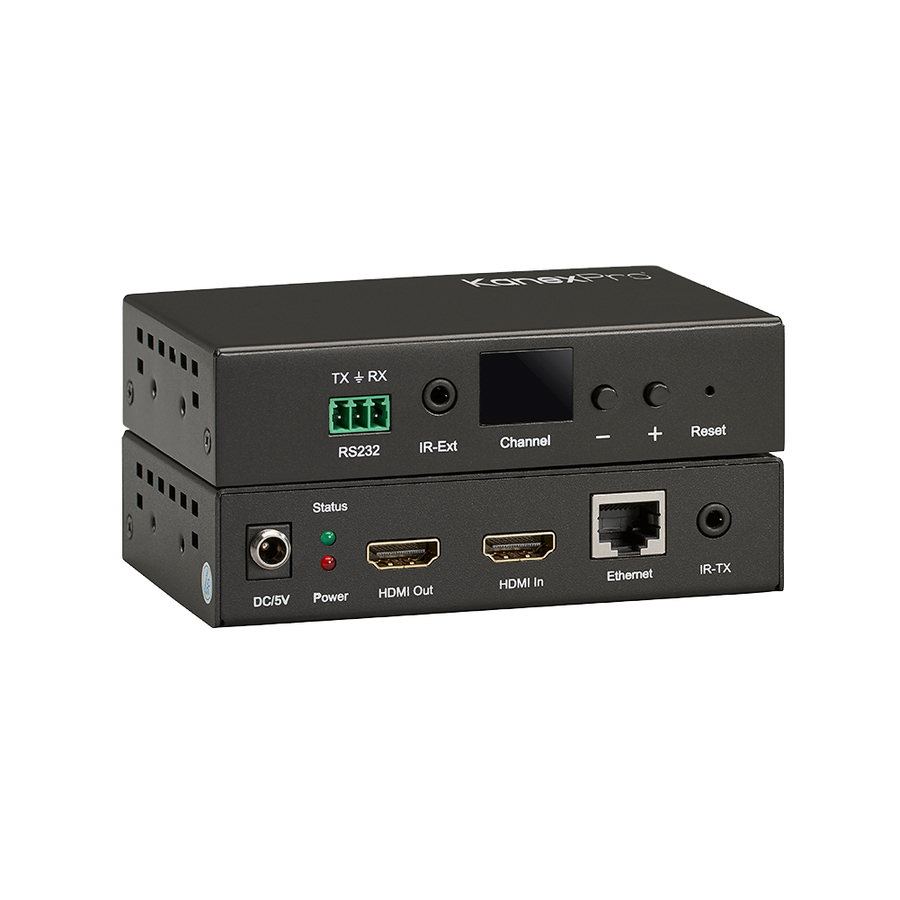

The KanexPro EXT-AVIPH264TX is an AV over IP transmitter with an HDMI input and Ethernet out which uses advanced H.264 compression algorithm to transmit full HD 1080p from HDMI based sources with less bandwidth over LAN network. It supports PoE (power over Ethernet) with distances over a single CATx up to 394 ft. (120m) delivering one to one, one to many and many to many over the Ethernet switch.
Applications:
Ideal for digital signage and networked AV applications where full HD 1080p can be passed over IP network delivering full audio, video, power, data and control using a single Ethernet cable.
- Support LPCM audio format
- Smart IP Address Setting: Dynamic Host Configuration Protocol (DHCP)
- Can be cascaded to multiple AV over IP Extenders
- (No need power supply when connecting with POE Switch)
- Dual power input: 802.3af compliant w/ POE & DC 5V
- Supports one to many, many to many and point to point broadcasting
- Can be used with DVI connection
- Features real-time AV coding and decoding to broadcast 1080p
- H.264 Compression technology
- Encode and extend pure 1080p resolutions up to 394' / 120 meters
| Brand | |
|---|---|
| Brand | KanexPro |
| GPU / Graphics | |
|---|---|
| Graphics Modes | Full HD |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1080 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 9.88 oz |
| Form Factor | Rack-mountable |
| Transmitter Depth | 3.13" |
| Transmitter Height | 1.10" |
| Transmitter Width | 4.69" |
| General Features | |
|---|---|
| Maximum Operating Distance | 393.70 ft |
| Manufacturer | KanexPro |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
