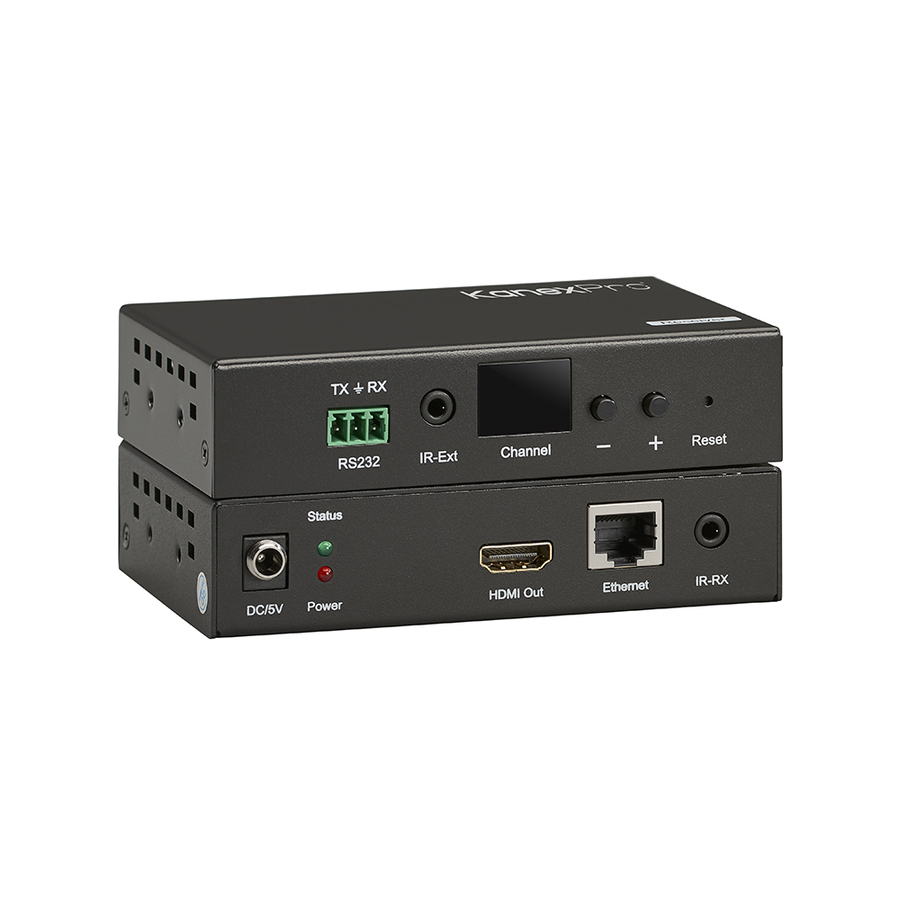

The KanexPro EXT-AVIPH264RX is a DHCP enabled AV over IP receiver with HDMI output to display and Ethernet. This receiver over IP uses advanced H.264 compression algorithm to transmit full HD 1080p from HDMI based displays with less bandwidth over LAN network. It supports PoE (power over Ethernet) with distances over a single CATx up to 394 ft. (120m) delivering one to one, one to many and many to many over the Ethernet switch.
Applications:
Ideal for digital signage and networked AV applications where full HD 1080p can be passed over IP network delivering full audio, video, power, data and control using a single Ethernet cable.
Please note: Power over Ethernet will be supported only with a PoE enabled network switch.
- Supports LPCM audio format
- Smart IP Address Setting: Dynamic Host Configuration Protocol (DHCP)
- Can be cascaded to multiple extenders
- Dual power input: 802.3af compliant w/ POE & DC 5V
- No power needed when connecting through a POE network switch
- Supports one to many, many to many and point to point broadcasting
- H.264 Compression technology
- Can be used with DVI connection
- Features real-time AV coding and decoding to broadcast 1080p
- Decode & extend pure 1080p resolutions up to 394' / 120 meters
| Brand | |
|---|---|
| Brand | KanexPro |
| GPU / Graphics | |
|---|---|
| Graphics Modes | Full HD |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| Number of HDMI Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1080 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Receiver Width | 4.69" |
| Receiver Weight (Approximate) | 9.88 oz |
| Receiver Height | 1.10" |
| Receiver Depth | 3.13" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 393.70 ft |
| Manufacturer | KanexPro |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
